RF Transparent

This 40 mm square caprail fitting provides an adjustable connection in the horizontal plane. Choose the matching profile series and finish for your railing layout. Profile and system fit: for RF Transparent 40 mm square caprails in systems using 10 mm or 12 mm glass. Match the rail profile and required glazing insert. Finish: Matte Black; match the profile size and finish to your existing caprail. Reference dimensions: 101.6 x 50.8 x 50.8 mm (approx. 4 x 2 x 2 in) in the illustrated position. The overall envelope changes with the angle setting. Included: one caprail fitting. Caprail sections and glass panels are not included.

This large connector connects a glass panel to a wall at the matching mounting point. Choose the connection layout and size that match your glass railing design. Designed for 10 mm and 12 mm glass; large connector version. Confirm hole positions and edge clearances using the matching drawing. Made from 316 stainless steel with a matte black finish. Reference dimensions: 55 x 54 x 29.5 mm (approx. 2.17 x 2.13 x 1.16 in). Confirm fit using the matching product drawing. Included: one connector assembly. Glass panels are not included; this is an individual fitting, not a complete railing kit.

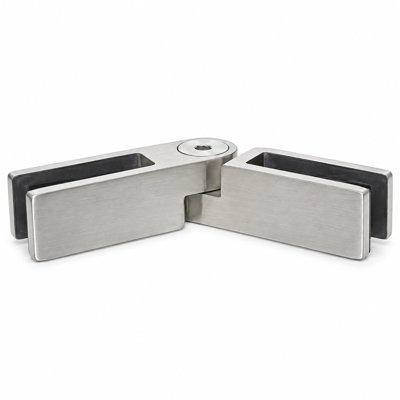

This small connector connects glass panels at angles from 90 to 180 degrees. Choose the connection layout and size that match your glass railing design. Designed for 10 mm and 12 mm glass; small connector version. Confirm hole positions and edge clearances using the matching drawing. Made from 316 stainless steel with a brushed stainless finish. Reference dimensions: 133.5 x 30 x 27.5 mm (approx. 5.26 x 1.18 x 1.08 in) in the straight position. The overall envelope changes with the angle setting. Included: one connector assembly. Glass panels are not included; this is an individual fitting, not a complete railing kit.

This 180° glass gate latch is supplied as one assembly in brushed stainless, model 2. This model is compatible with 10 mm and 12 mm glass. Confirm the mounting pattern and alignment with the matching drawing. Finish: Brushed Stainless; select the finish and latch model that match the rest of your gate hardware. Reference dimensions: 120.7 x 75 x 56 mm (approx. 4.75 x 2.95 x 2.2 in). Confirm gate clearances and glass preparation separately. Included: one latch assembly. Glass panels and gate hinges are not included.

This 40 mm square caprail fitting joins matching caprail sections in a straight run. Choose the matching profile series and finish for your railing layout. Profile and system fit: for RF Transparent 40 mm square caprails in systems using 10 mm or 12 mm glass. Match the rail profile and required glazing insert. Finish: Matte Black; match the profile size and finish to your existing caprail. Reference dimensions: 63 x 40 x 40 mm (approx. 2.48 x 1.57 x 1.57 in). Confirm fit using the matching product drawing. Included: one caprail fitting. Caprail sections and glass panels are not included.

This small connector connects a glass panel to a wall at the matching mounting point. Choose the connection layout and size that match your glass railing design. Designed for 10 mm and 12 mm glass; small connector version. Confirm hole positions and edge clearances using the matching drawing. Made from 316 stainless steel with a brushed stainless finish. Reference dimensions: 70 x 65 x 30 mm (approx. 2.76 x 2.56 x 1.18 in). Confirm fit using the matching product drawing. Included: one connector assembly. Glass panels are not included; this is an individual fitting, not a complete railing kit.

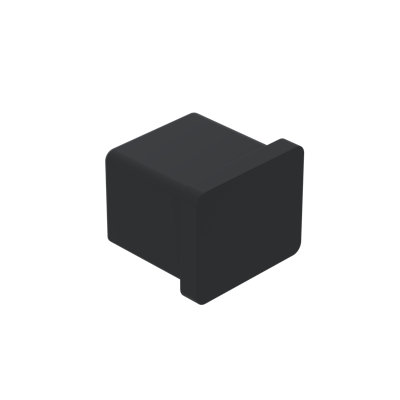

This 25 mm square caprail fitting closes the open end of the matching square caprail. Choose the matching profile series and finish for your railing layout. Profile and system fit: for RF Transparent 25 mm square caprails in systems using 10 mm or 12 mm glass. Match the rail profile and required glazing insert. Finish: Matte Black; match the profile size and finish to your existing caprail. Reference dimensions: 24 x 25.5 x 21 mm (approx. 0.94 x 1 x 0.83 in). Confirm fit using the matching product drawing. Included: one caprail fitting. Caprail sections and glass panels are not included.

This 40 mm square caprail fitting joins matching caprail sections in a straight run. Choose the matching profile series and finish for your railing layout. Profile and system fit: for RF Transparent 40 mm square caprails in systems using 10 mm or 12 mm glass. Match the rail profile and required glazing insert. Finish: Brushed Stainless; match the profile size and finish to your existing caprail. Reference dimensions: 63 x 40 x 40 mm (approx. 2.48 x 1.57 x 1.57 in). Confirm fit using the matching product drawing. Included: one caprail fitting. Caprail sections and glass panels are not included.

This 180° glass gate latch is supplied as one assembly in matte black, model 2. This model is compatible with 10 mm and 12 mm glass. Confirm the mounting pattern and alignment with the matching drawing. Finish: Matte Black; select the finish and latch model that match the rest of your gate hardware. Reference dimensions: 120.7 x 75 x 56 mm (approx. 4.75 x 2.95 x 2.2 in). Confirm gate clearances and glass preparation separately. Included: one latch assembly. Glass panels and gate hinges are not included.

This 25 mm square caprail fitting provides an adjustable connection in the horizontal plane. Choose the matching profile series and finish for your railing layout. Profile and system fit: for RF Transparent 25 mm square caprails in systems using 10 mm or 12 mm glass. Match the rail profile and required glazing insert. Finish: Matte Black; match the profile size and finish to your existing caprail. Reference dimensions: 51 x 51 x 21 mm (approx. 2.01 x 2.01 x 0.83 in) in the illustrated position. The overall envelope changes with the angle setting. Included: one caprail fitting. Caprail sections and glass panels are not included.

This floor lock is an individual glass gate fitting with a brushed stainless finish. Check its fit with the gate and floor arrangement before ordering. Finish: Brushed Stainless; coordinate with the matching gate hardware. Overall dimensions: 220 x 54.5 x 44.5 mm (approx. 8.66 x 2.15 x 1.75 in) with the bolt extended, including the handle and clamps. Allow space for bolt movement and floor engagement. Glass compatibility: fits 10 mm and 12 mm glass. Confirm the model-specific glass preparation, bolt position and floor engagement before installation. Included: one floor lock. Glass panels and other gate hardware are not included.

This 25 mm square caprail fitting provides an adjustable connection in the horizontal plane. Choose the matching profile series and finish for your railing layout. Profile and system fit: for RF Transparent 25 mm square caprails in systems using 10 mm or 12 mm glass. Match the rail profile and required glazing insert. Finish: Brushed Stainless; match the profile size and finish to your existing caprail. Reference dimensions: 51 x 51 x 21 mm (approx. 2.01 x 2.01 x 0.83 in) in the illustrated position. The overall envelope changes with the angle setting. Included: one caprail fitting. Caprail sections and glass panels are not included.

This 25 mm square caprail fitting closes the open end of the matching square caprail. Choose the matching profile series and finish for your railing layout. Profile and system fit: for RF Transparent 25 mm square caprails in systems using 10 mm or 12 mm glass. Match the rail profile and required glazing insert. Finish: Brushed Stainless; match the profile size and finish to your existing caprail. Reference dimensions: 24 x 25.5 x 21 mm (approx. 0.94 x 1 x 0.83 in). Confirm fit using the matching product drawing. Included: one caprail fitting. Caprail sections and glass panels are not included.

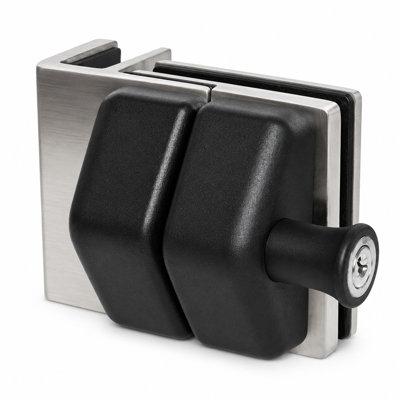

This 90° glass gate latch is supplied as one assembly in brushed stainless, model 2. This model is compatible with 10 mm and 12 mm glass. Confirm the mounting pattern and alignment with the matching drawing. Finish: Brushed Stainless; select the finish and latch model that match the rest of your gate hardware. Reference dimensions: 120.7 x 75 x 56 mm (approx. 4.75 x 2.95 x 2.2 in). Confirm gate clearances and glass preparation separately. Included: one latch assembly. Glass panels and gate hinges are not included.

This small connector joins adjacent glass panels in a straight 180-degree layout. Choose the connection layout and size that match your glass railing design. Designed for 10 mm and 12 mm glass; small connector version. Confirm hole positions and edge clearances using the matching drawing. Made from 316 stainless steel with a matte black finish. Reference dimensions: 100 x 30 x 28 mm (approx. 3.94 x 1.18 x 1.1 in). Confirm fit using the matching product drawing. Included: one connector assembly. Glass panels are not included; this is an individual fitting, not a complete railing kit.

This large connector joins adjacent glass panels in a straight 180-degree layout. Choose the connection layout and size that match your glass railing design. Designed for 10 mm and 12 mm glass; large connector version. Confirm hole positions and edge clearances using the matching drawing. Made from 316 stainless steel with a brushed stainless finish. Reference dimensions: 100 x 50 x 25 mm (approx. 3.94 x 1.97 x 0.98 in). Confirm fit using the matching product drawing. Included: one connector assembly. Glass panels are not included; this is an individual fitting, not a complete railing kit.

This fascia mount spigot is a single support fitting for a frameless glass railing. It is specified for 10 mm and 12 mm glass. Made from 2205 stainless steel with a brushed stainless finish. Dimensions: 50.8 x 50.8 x 139.7 mm (2 x 2 x 5.5 in). This is the hardware envelope, not anchor spacing or finished glass height. Included: one spigot. Screws and mounting bolts are sold separately; glass panels are not included. Installation fit: select anchors for the mounting surface and confirm the matching glass and mounting drawings before installation.

This 90° glass gate latch is supplied as one assembly in matte black, model 2. This model is compatible with 10 mm and 12 mm glass. Confirm the mounting pattern and alignment with the matching drawing. Finish: Matte Black; select the finish and latch model that match the rest of your gate hardware. Reference dimensions: 120.7 x 75 x 56 mm (approx. 4.75 x 2.95 x 2.2 in). Confirm gate clearances and glass preparation separately. Included: one latch assembly. Glass panels and gate hinges are not included.

This 180° glass gate latch is supplied as one assembly in brushed stainless, model 1. This model is compatible with 10 mm and 12 mm glass. Confirm the mounting pattern and alignment with the matching drawing. Finish: Brushed Stainless; select the finish and latch model that match the rest of your gate hardware. Reference dimensions: 120.7 x 75 x 56 mm (approx. 4.75 x 2.95 x 2.2 in). Confirm gate clearances and glass preparation separately. Included: one latch assembly. Glass panels and gate hinges are not included.

This wall mount kit contains two hinges for a glass gate. Select this configuration for a wall-to-glass connection. This model is compatible with 10 mm and 12 mm glass. Confirm the model-specific cutout, gate size, weight and hinge placement before installation. Made from 316 stainless steel with a matte black finish. Per-hinge face dimensions: 122 x 74.1 mm (approx. 4.8 x 2.92 in). These are two face measurements, not hinge depth or a glass-cutout template. Included: two hinges per kit. Glass panels and a gate latch are not included.

This fascia mount spigot is a single support fitting for a frameless glass railing. It is specified for 10 mm and 12 mm glass. Made from 2205 stainless steel with a matte black finish. Dimensions: 50.8 x 50.8 x 139.7 mm (2 x 2 x 5.5 in). This is the hardware envelope, not anchor spacing or finished glass height. Included: one spigot. Screws and mounting bolts are sold separately; glass panels are not included. Installation fit: select anchors for the mounting surface and confirm the matching glass and mounting drawings before installation.

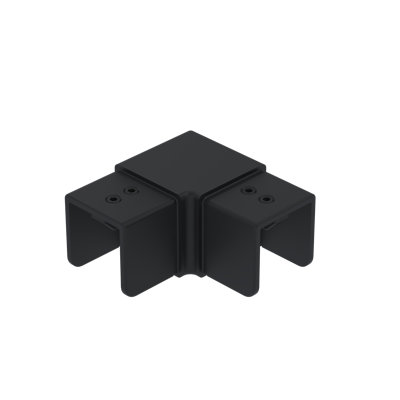

This 40 mm square caprail fitting joins matching caprail sections at a horizontal 90-degree corner. Choose the matching profile series and finish for your railing layout. Profile and system fit: for RF Transparent 40 mm square caprails in systems using 10 mm or 12 mm glass. Match the rail profile and required glazing insert. Finish: Matte Black; match the profile size and finish to your existing caprail. Reference dimensions: 75 x 75 x 40 mm (approx. 2.95 x 2.95 x 1.57 in). Confirm fit using the matching product drawing. Included: one caprail fitting. Caprail sections and glass panels are not included.

This 25 mm square caprail fitting joins matching caprail sections in a straight run. Choose the matching profile series and finish for your railing layout. Profile and system fit: for RF Transparent 25 mm square caprails in systems using 10 mm or 12 mm glass. Match the rail profile and required glazing insert. Finish: Brushed Stainless; match the profile size and finish to your existing caprail. Reference dimensions: 94.77 x 25.5 x 21 mm (approx. 3.73 x 1 x 0.83 in). Confirm fit using the matching product drawing. Included: one caprail fitting. Caprail sections and glass panels are not included.

This 25 mm square caprail fitting provides an adjustable connection in the vertical plane. Choose the matching profile series and finish for your railing layout. Profile and system fit: for RF Transparent 25 mm square caprails in systems using 10 mm or 12 mm glass. Match the rail profile and required glazing insert. Finish: Matte Black; match the profile size and finish to your existing caprail. Reference dimensions: 47 x 25.5 x 47 mm (approx. 1.85 x 1 x 1.85 in) in the illustrated position. The overall envelope changes with the angle setting. Included: one caprail fitting. Caprail sections and glass panels are not included.

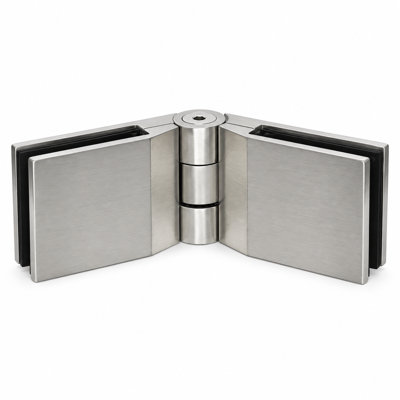

This large connector connects glass panels at angles from 45 to 180 degrees. Choose the connection layout and size that match your glass railing design. Designed for 10 mm and 12 mm glass; large connector version. Confirm hole positions and edge clearances using the matching drawing. Made from 316 stainless steel with a matte black finish. Reference dimensions: 158 x 50 x 25 mm (approx. 6.22 x 1.97 x 0.98 in) in the straight position. The overall envelope changes with the angle setting. Included: one connector assembly. Glass panels are not included; this is an individual fitting, not a complete railing kit.

This large connector connects a glass panel to a wall at the matching mounting point. Choose the connection layout and size that match your glass railing design. Designed for 10 mm and 12 mm glass; large connector version. Confirm hole positions and edge clearances using the matching drawing. Made from 316 stainless steel with a brushed stainless finish. Reference dimensions: 55 x 54 x 29.5 mm (approx. 2.17 x 2.13 x 1.16 in). Confirm fit using the matching product drawing. Included: one connector assembly. Glass panels are not included; this is an individual fitting, not a complete railing kit.

This 90° glass gate latch is supplied as one assembly in matte black, model 1. This model is compatible with 10 mm and 12 mm glass. Confirm the mounting pattern and alignment with the matching drawing. Finish: Matte Black; select the finish and latch model that match the rest of your gate hardware. Reference dimensions: 120.7 x 75 x 56 mm (approx. 4.75 x 2.95 x 2.2 in). Confirm gate clearances and glass preparation separately. Included: one latch assembly. Glass panels and gate hinges are not included.

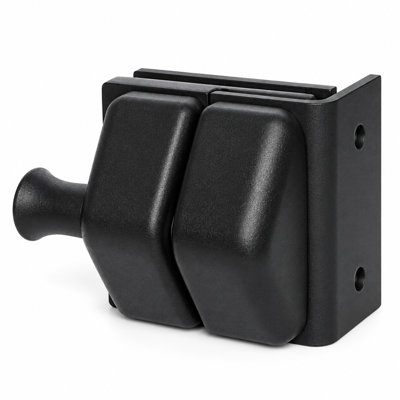

This wall glass gate latch is supplied as one assembly in matte black. This model is compatible with 10 mm and 12 mm glass. Confirm the mounting pattern and alignment with the matching drawing. Finish: Matte Black; select the finish and latch model that match the rest of your gate hardware. Reference dimensions: 120.7 x 75 x 56 mm (approx. 4.75 x 2.95 x 2.2 in). Confirm gate clearances and glass preparation separately. Included: one latch assembly. Glass panels and gate hinges are not included.

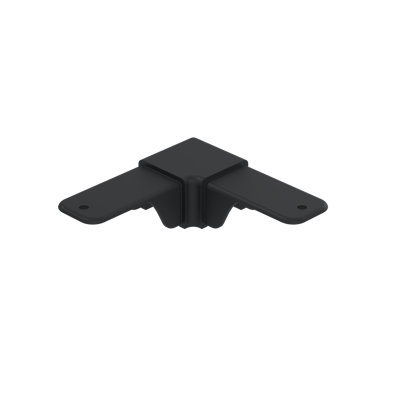

This 25 mm square caprail fitting joins matching caprail sections at a horizontal 90-degree corner. Choose the matching profile series and finish for your railing layout. Profile and system fit: for RF Transparent 25 mm square caprails in systems using 10 mm or 12 mm glass. Match the rail profile and required glazing insert. Finish: Brushed Stainless; match the profile size and finish to your existing caprail. Reference dimensions: 74.39 x 74.39 x 21 mm (approx. 2.93 x 2.93 x 0.83 in). Confirm fit using the matching product drawing. Included: one caprail fitting. Caprail sections and glass panels are not included.

This large connector joins adjacent glass panels in a straight 180-degree layout. Choose the connection layout and size that match your glass railing design. Designed for 10 mm and 12 mm glass; large connector version. Confirm hole positions and edge clearances using the matching drawing. Made from 316 stainless steel with a matte black finish. Reference dimensions: 100 x 50 x 25 mm (approx. 3.94 x 1.97 x 0.98 in). Confirm fit using the matching product drawing. Included: one connector assembly. Glass panels are not included; this is an individual fitting, not a complete railing kit.

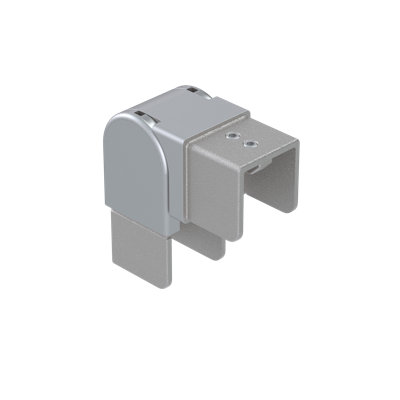

This 40 mm square caprail fitting provides an adjustable connection in the vertical plane. Choose the matching profile series and finish for your railing layout. Profile and system fit: for RF Transparent 40 mm square caprails in systems using 10 mm or 12 mm glass. Match the rail profile and required glazing insert. Finish: Brushed Stainless; match the profile size and finish to your existing caprail. Reference dimensions: 101.6 x 50.8 x 50.8 mm (approx. 4 x 2 x 2 in) in the illustrated position. The overall envelope changes with the angle setting. Included: one caprail fitting. Caprail sections and glass panels are not included.

This floor lock is an individual glass gate fitting with a matte black finish. Check its fit with the gate and floor arrangement before ordering. Finish: Matte Black; coordinate with the matching gate hardware. Overall dimensions: 220 x 54.5 x 44.5 mm (approx. 8.66 x 2.15 x 1.75 in) with the bolt extended, including the handle and clamps. Allow space for bolt movement and floor engagement. Glass compatibility: fits 10 mm and 12 mm glass. Confirm the model-specific glass preparation, bolt position and floor engagement before installation. Included: one floor lock. Glass panels and other gate hardware are not included.

This 90° glass gate latch is supplied as one assembly in brushed stainless, model 1. This model is compatible with 10 mm and 12 mm glass. Confirm the mounting pattern and alignment with the matching drawing. Finish: Brushed Stainless; select the finish and latch model that match the rest of your gate hardware. Reference dimensions: 120.7 x 75 x 56 mm (approx. 4.75 x 2.95 x 2.2 in). Confirm gate clearances and glass preparation separately. Included: one latch assembly. Glass panels and gate hinges are not included.

This 25 mm square caprail fitting joins matching caprail sections at a horizontal 90-degree corner. Choose the matching profile series and finish for your railing layout. Profile and system fit: for RF Transparent 25 mm square caprails in systems using 10 mm or 12 mm glass. Match the rail profile and required glazing insert. Finish: Matte Black; match the profile size and finish to your existing caprail. Reference dimensions: 74.39 x 74.39 x 21 mm (approx. 2.93 x 2.93 x 0.83 in). Confirm fit using the matching product drawing. Included: one caprail fitting. Caprail sections and glass panels are not included.

This 40 mm square caprail fitting joins matching caprail sections at a horizontal 90-degree corner. Choose the matching profile series and finish for your railing layout. Profile and system fit: for RF Transparent 40 mm square caprails in systems using 10 mm or 12 mm glass. Match the rail profile and required glazing insert. Finish: Brushed Stainless; match the profile size and finish to your existing caprail. Reference dimensions: 75 x 75 x 40 mm (approx. 2.95 x 2.95 x 1.57 in). Confirm fit using the matching product drawing. Included: one caprail fitting. Caprail sections and glass panels are not included.

This 40 mm square caprail fitting provides an adjustable connection in the vertical plane. Choose the matching profile series and finish for your railing layout. Profile and system fit: for RF Transparent 40 mm square caprails in systems using 10 mm or 12 mm glass. Match the rail profile and required glazing insert. Finish: Matte Black; match the profile size and finish to your existing caprail. Reference dimensions: 101.6 x 50.8 x 50.8 mm (approx. 4 x 2 x 2 in) in the illustrated position. The overall envelope changes with the angle setting. Included: one caprail fitting. Caprail sections and glass panels are not included.

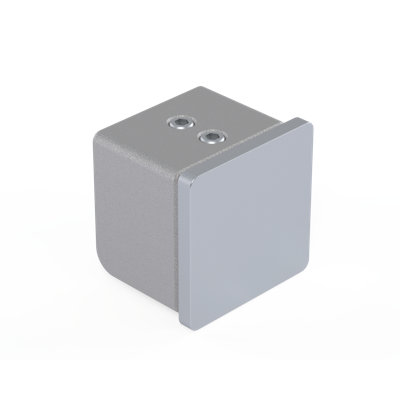

This 40 mm square caprail fitting closes the open end of the matching square caprail. Choose the matching profile series and finish for your railing layout. Profile and system fit: for RF Transparent 40 mm square caprails in systems using 10 mm or 12 mm glass. Match the rail profile and required glazing insert. Finish: Matte Black; match the profile size and finish to your existing caprail. Reference dimensions: 34 x 40 x 40 mm (approx. 1.34 x 1.57 x 1.57 in). Confirm fit using the matching product drawing. Included: one caprail fitting. Caprail sections and glass panels are not included.

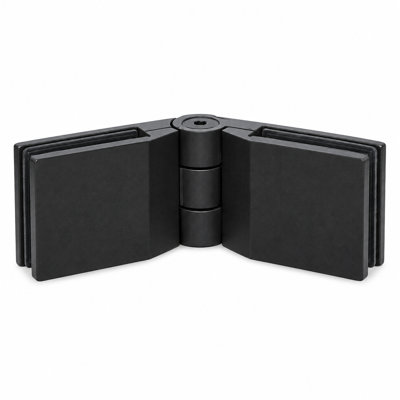

This large connector connects glass panels at angles from 45 to 180 degrees. Choose the connection layout and size that match your glass railing design. Designed for 10 mm and 12 mm glass; large connector version. Confirm hole positions and edge clearances using the matching drawing. Made from 316 stainless steel with a brushed stainless finish. Reference dimensions: 158 x 50 x 25 mm (approx. 6.22 x 1.97 x 0.98 in) in the straight position. The overall envelope changes with the angle setting. Included: one connector assembly. Glass panels are not included; this is an individual fitting, not a complete railing kit.

This 180° glass gate latch is supplied as one assembly in matte black, model 1. This model is compatible with 10 mm and 12 mm glass. Confirm the mounting pattern and alignment with the matching drawing. Finish: Matte Black; select the finish and latch model that match the rest of your gate hardware. Reference dimensions: 120.7 x 75 x 56 mm (approx. 4.75 x 2.95 x 2.2 in). Confirm gate clearances and glass preparation separately. Included: one latch assembly. Glass panels and gate hinges are not included.

This small connector connects glass panels at a 90-degree corner. Choose the connection layout and size that match your glass railing design. Designed for 10 mm and 12 mm glass; small connector version. Confirm hole positions and edge clearances using the matching drawing. Made from 316 stainless steel with a matte black finish. Reference dimensions: 70 x 70 x 30 mm (approx. 2.76 x 2.76 x 1.18 in). Confirm fit using the matching product drawing. Included: one connector assembly. Glass panels are not included; this is an individual fitting, not a complete railing kit.

This wall mount kit contains two hinges for a glass gate. Select this configuration for a wall-to-glass connection. This model is compatible with 10 mm and 12 mm glass. Confirm the model-specific cutout, gate size, weight and hinge placement before installation. Made from 316 stainless steel with a brushed stainless finish. Per-hinge face dimensions: 122 x 74.1 mm (approx. 4.8 x 2.92 in). These are two face measurements, not hinge depth or a glass-cutout template. Included: two hinges per kit. Glass panels and a gate latch are not included.

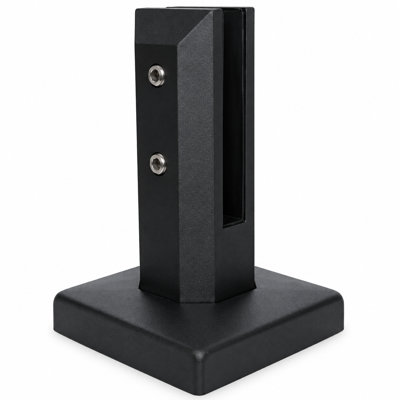

This deck mount spigot is a single support fitting for a frameless glass railing. It is specified for 10 mm and 12 mm glass. Made from 2205 stainless steel with a matte black finish. Dimensions: 100 x 100 mm base (approx. 3.94 x 3.94 in); 158 mm overall height (approx. 6.22 in). Confirm mounting-hole positions with the product drawing. Included: one spigot. Screws and mounting bolts are sold separately; glass panels are not included. Installation fit: select anchors for the mounting surface and confirm the matching glass and mounting drawings before installation.

This small connector connects glass panels at a 90-degree corner. Choose the connection layout and size that match your glass railing design. Designed for 10 mm and 12 mm glass; small connector version. Confirm hole positions and edge clearances using the matching drawing. Made from 316 stainless steel with a brushed stainless finish. Reference dimensions: 70 x 70 x 30 mm (approx. 2.76 x 2.76 x 1.18 in). Confirm fit using the matching product drawing. Included: one connector assembly. Glass panels are not included; this is an individual fitting, not a complete railing kit.

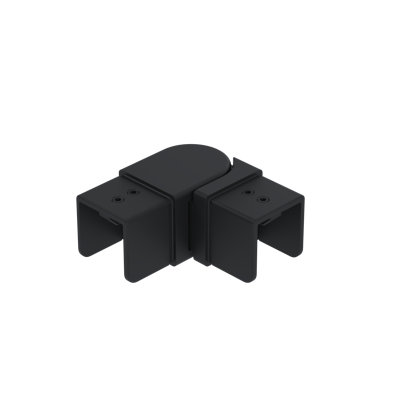

This 40 mm square caprail fitting provides an adjustable connection in the horizontal plane. Choose the matching profile series and finish for your railing layout. Profile and system fit: for RF Transparent 40 mm square caprails in systems using 10 mm or 12 mm glass. Match the rail profile and required glazing insert. Finish: Brushed Stainless; match the profile size and finish to your existing caprail. Reference dimensions: 101.6 x 50.8 x 50.8 mm (approx. 4 x 2 x 2 in) in the illustrated position. The overall envelope changes with the angle setting. Included: one caprail fitting. Caprail sections and glass panels are not included.

This 40 mm square caprail fitting closes the open end of the matching square caprail. Choose the matching profile series and finish for your railing layout. Profile and system fit: for RF Transparent 40 mm square caprails in systems using 10 mm or 12 mm glass. Match the rail profile and required glazing insert. Finish: Brushed Stainless; match the profile size and finish to your existing caprail. Reference dimensions: 34 x 40 x 40 mm (approx. 1.34 x 1.57 x 1.57 in). Confirm fit using the matching product drawing. Included: one caprail fitting. Caprail sections and glass panels are not included.

This large connector connects glass panels at a 90-degree corner. Choose the connection layout and size that match your glass railing design. Designed for 10 mm and 12 mm glass; large connector version. Confirm hole positions and edge clearances using the matching drawing. Made from 316 stainless steel with a brushed stainless finish. Reference dimensions: 107.1 x 54.5 x 50 mm (approx. 4.22 x 2.15 x 1.97 in). Confirm fit using the matching product drawing. Included: one connector assembly. Glass panels are not included; this is an individual fitting, not a complete railing kit.

This 25 mm square caprail fitting joins matching caprail sections in a straight run. Choose the matching profile series and finish for your railing layout. Profile and system fit: for RF Transparent 25 mm square caprails in systems using 10 mm or 12 mm glass. Match the rail profile and required glazing insert. Finish: Matte Black; match the profile size and finish to your existing caprail. Reference dimensions: 94.77 x 25.5 x 21 mm (approx. 3.73 x 1 x 0.83 in). Confirm fit using the matching product drawing. Included: one caprail fitting. Caprail sections and glass panels are not included.

This small connector connects glass panels at angles from 90 to 180 degrees. Choose the connection layout and size that match your glass railing design. Designed for 10 mm and 12 mm glass; small connector version. Confirm hole positions and edge clearances using the matching drawing. Made from 316 stainless steel with a matte black finish. Reference dimensions: 133.5 x 30 x 27.5 mm (approx. 5.26 x 1.18 x 1.08 in) in the straight position. The overall envelope changes with the angle setting. Included: one connector assembly. Glass panels are not included; this is an individual fitting, not a complete railing kit.
