Charnière à fixation supérieure ou inférieure en laiton Brixwell SCR010RB, épaisseur de verre de 1/2 po, finition bronze huilé

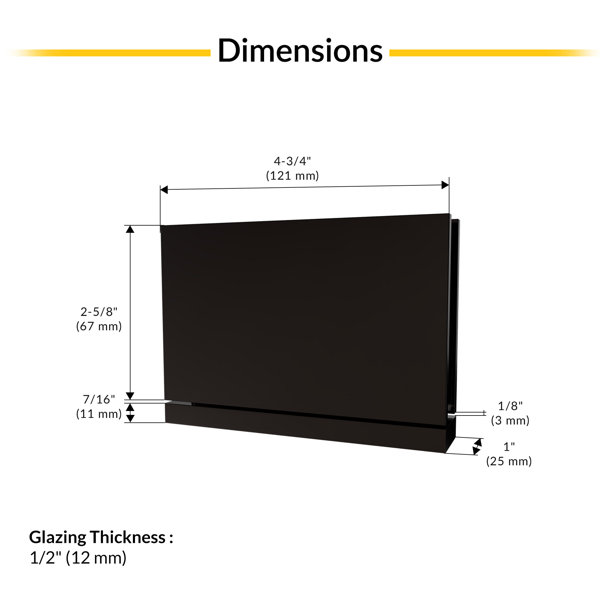

The Top or Bottom Mount Hinge are designed for frameless glass shower doors where pivot-style movement and increased glass visibility are required. These hinges are made from brass and finished in brushed bronze, providing a consistent appearance for bathroom glass door installations. This pivot shower hinge uses a top and bottom mounting style, allowing more glass exposure when compared to side mount hinges. This design also reduces the number of glass cut-outs required, helping simplify glass fabrication while maintaining proper door alignment. The hinge supports full rotation door movement and includes a self-centering closing action that activates when the door is within 15 degrees of the closed position. This function helps guide the door back to a centred resting position during normal use. Overall dimensions include a length of 4-3/4" and a height of 2-5/8". The back plate measures 1" in width with a thickness of 7/16". A glass clearance of 1/8" is maintained for proper spacing during installation. The hinge is designed for use with 1/2" (12mm) thick monolithic tempered glass and requires a cut-out for mounting. This shower door pivot hinge supports doors weighing up to 145 lbs when two hinges are used and accommodates door widths up to 36". Square corner edge profiles allow compatibility with square corner glass panels. The hinge includes gaskets and screws to support proper placement. These hinges are commonly used in frameless shower enclosures where controlled pivot movement and clean glass presentation are required. Care Instructions: Wipe hardware dry after use. Clean with mild soap and water if needed. Avoid abrasive cleaners.
