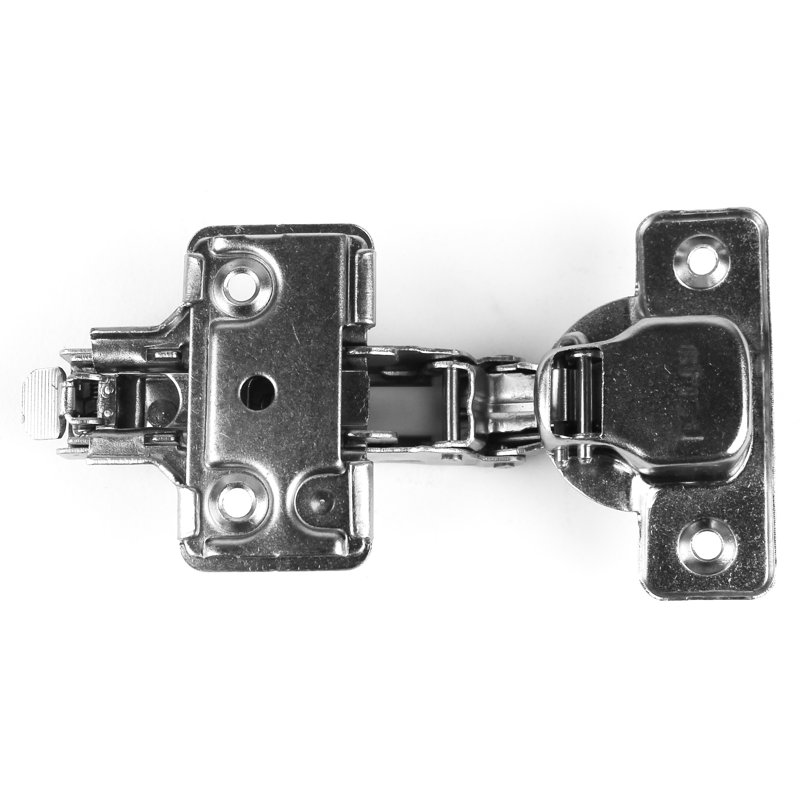

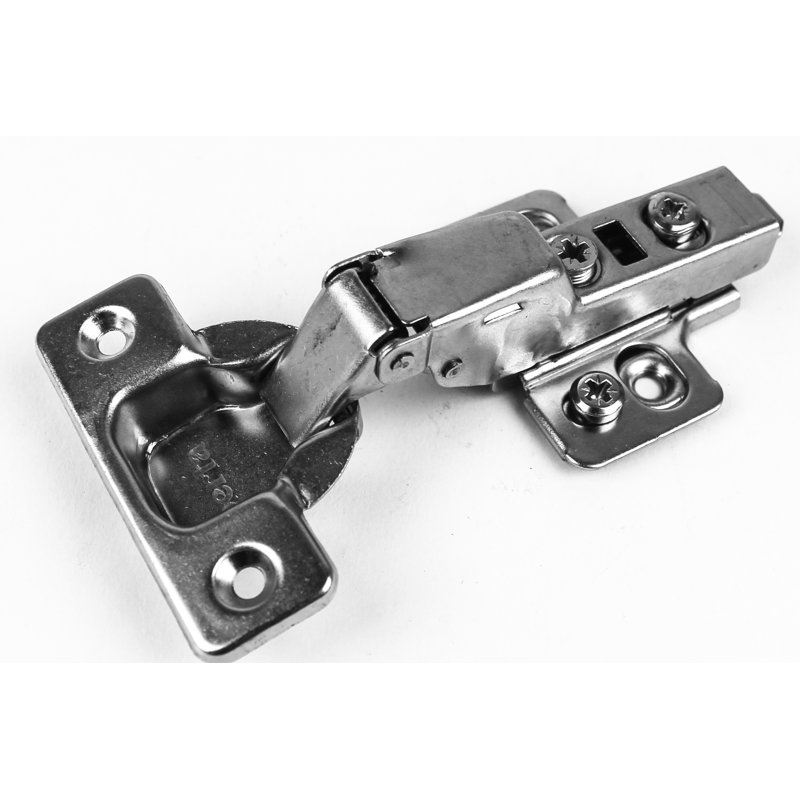

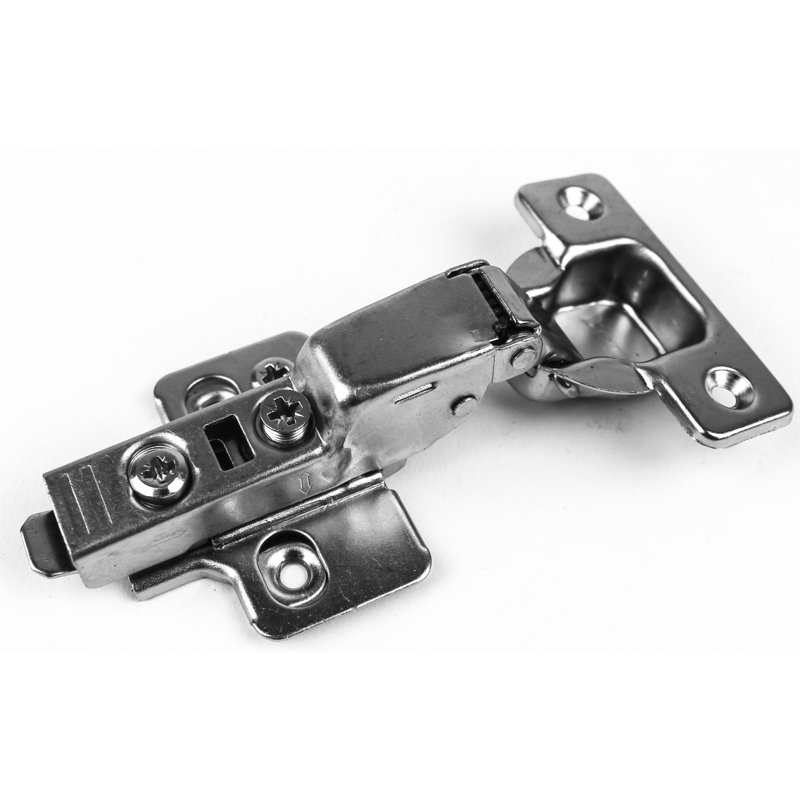

110 Degree Soft Close Half Overlay Frameless Concealed Hinge (Set of 10)

Features

• The clip-on plate, 3-way adjustments on the hinge, and 2-way adjustments on the base allow faster and more efficient installation. The 2-way adjustment on the base allows you to adjust the door height after installation, great for DIY jobs or contractors.
• PACKAGE CONTENT: 10 Pieces of Half Overlay Soft Close Hinges with Mounting Screws
• OPENING ANGLE: 110 Degrees. CUP DIAMETER: 1-4/5"(35 mm). CUP DEPTH: 1/2"(12 mm). SUITABLE DOOR THICKNESS: 3/5"-1"(16-24mm). SCREWS HOLE DISTANCE: 1-4/5"(45 mm). PLATE'S SCREWS HOLE DISTANCE: 1-2/5"(35 mm). MATERIAL: Cold Rolled-Steel. FINISH: Nickel Plated.
• Each cabinet door hinge features a built-in damper that creates a self-closing (soft-closing) motion.
