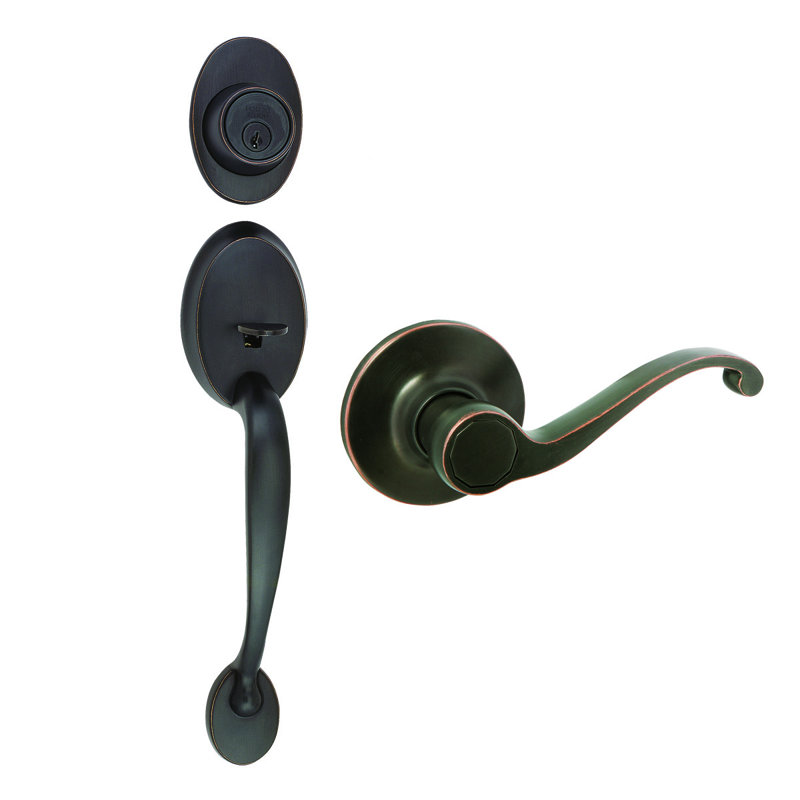

Coventry Handleset with Deadbolt and Door Lever and Rosette

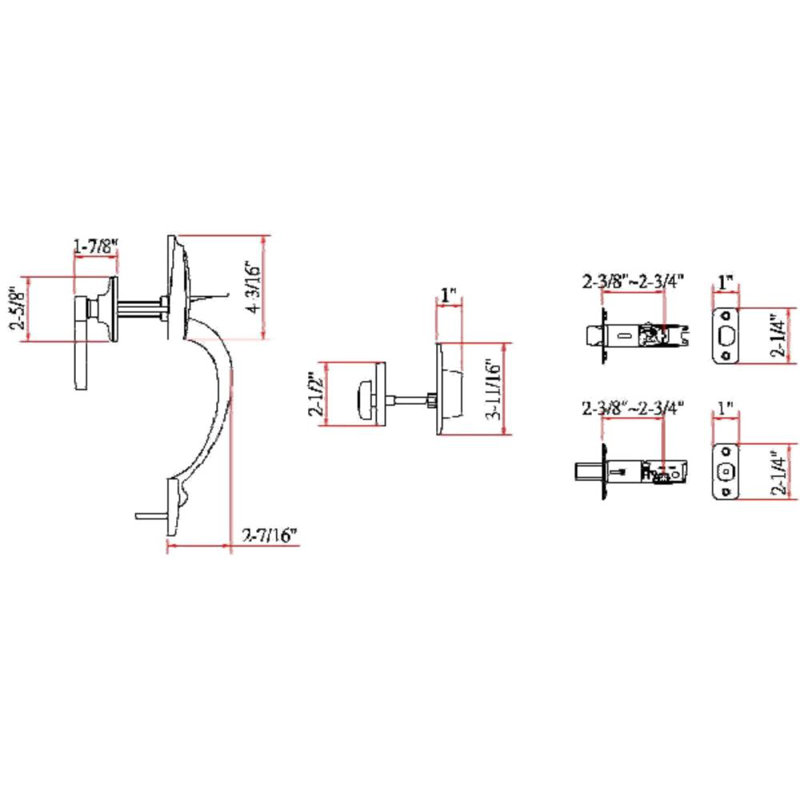

The Design House Coventry Handle Set accepts a key on one side of the lock but is operated by a turn-button handle on the other side. Designed for left or right-hand doors, this knob and keyway fit the two most common backsets in the U.S. (2-3/4 inches and 2-3/8 inches). The 1/2 inches latch bolt is plated in nickel and does not budge once in place. Use this knob on standard 1-3/8 inches and 1-3/4 inches thick doors. This product has a 1 inch by 2-1/4 inches radius corner faceplate and 5-pin security. If you are preparing your door for installation, the cross bore should be 2-1/8 inches in diameter and the edge bore should be 1 inch in diameter.
