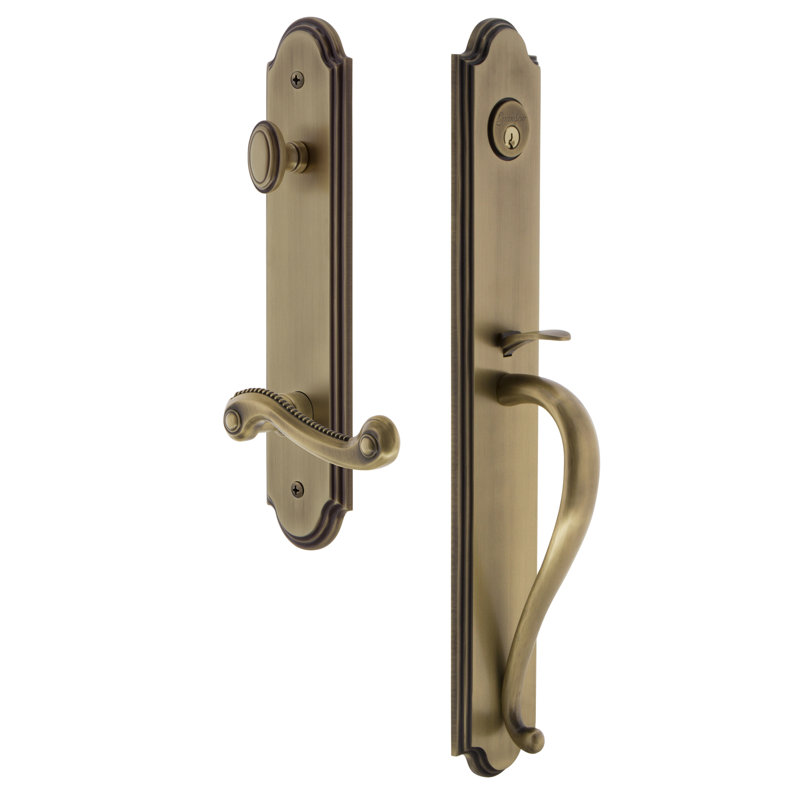

Waterfall edges and graceful curves at the top and bottom of the plate provide a classic, but dignified update to your exterior door hardware. The Handle with Lever and Deadbolt is available with any Grandeur Hardware knob and lever. Offered in the following Grandeur designer finishes helping you mix and match your door hardware.
Features
Ideal for doors that are 84" or higher, where a standard height plate would not look to scale.
Made of solid, forged brass for long-lasting durability.
Drilling template and mounting hardware included for easy installation.
Product Dimensions
Other Dimensions
Overall Dimensions
19'' H X 3'' W X 3'' D
Bore Hole Diameter
2.13''
Bore Hole - Centre to Centre
5.5''
Backset
2.375"
Compatible Door Thickness
1.875"; 2"; 1.75"
Overall Product Weight
8 lb.
Handle Grip Centre to Centre
5.5''
Edge Bore Diameter
1''
Standard Door Preparation
Yes
Details
Product Type
Handle with Lever and Deadbolt
Pieces Included
Complete Entry Set
Function
Keyed (Entry)
Material
Brass
Door Handing
Right
Handleset Mount Style
One Piece
Lock Type
Key
Number of Lock Points
1
Latch Included
Yes
Handle Style
Lever
Series
Arc handleset
Country of Origin
India
Number of Deadbolt Cylinders
Single Cylinder
Knob / Lever Included
Yes
Interior Handle Finish
Vintage Brass
Number of Knobs
2
Smart Connection Compatibility
Not App Enabled
Strike Style
Deadbolt, Full lip
Number of Keys Included
2
Assembly
Number of Mounting Holes
2
Installation Hardware Included
Yes
Warranty
Commercial Warranty
No
Product Warranty
Yes
Warranty Length
Warranty length varies by part
Full or Limited Warranty
Limited
Warranty Details 2
Lifetime mechanical warranty; 10-year warranty on finish.
Warranty
Warranty Included, Limited Warranty
