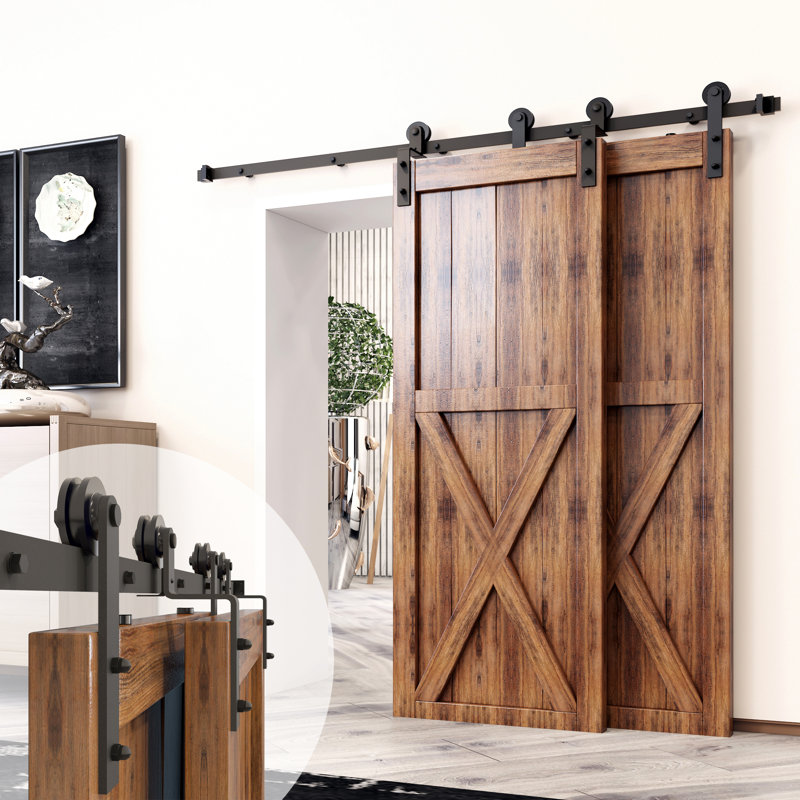

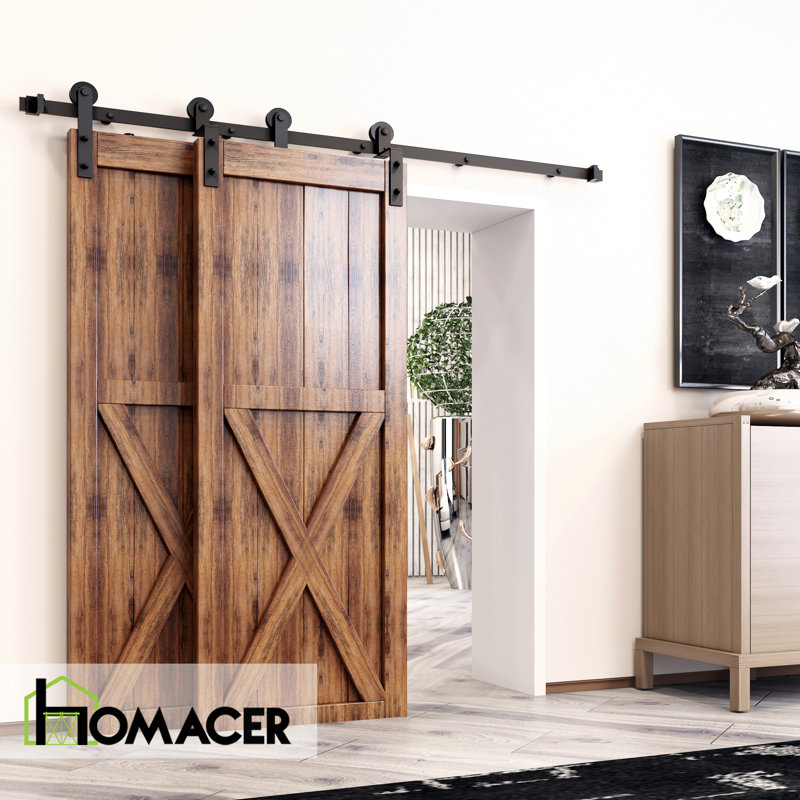

Black Rustic Straight Design Single Track Bypass Two Door Hardware Kit (Door Not Included)

Features

• The hardware is for interior use.

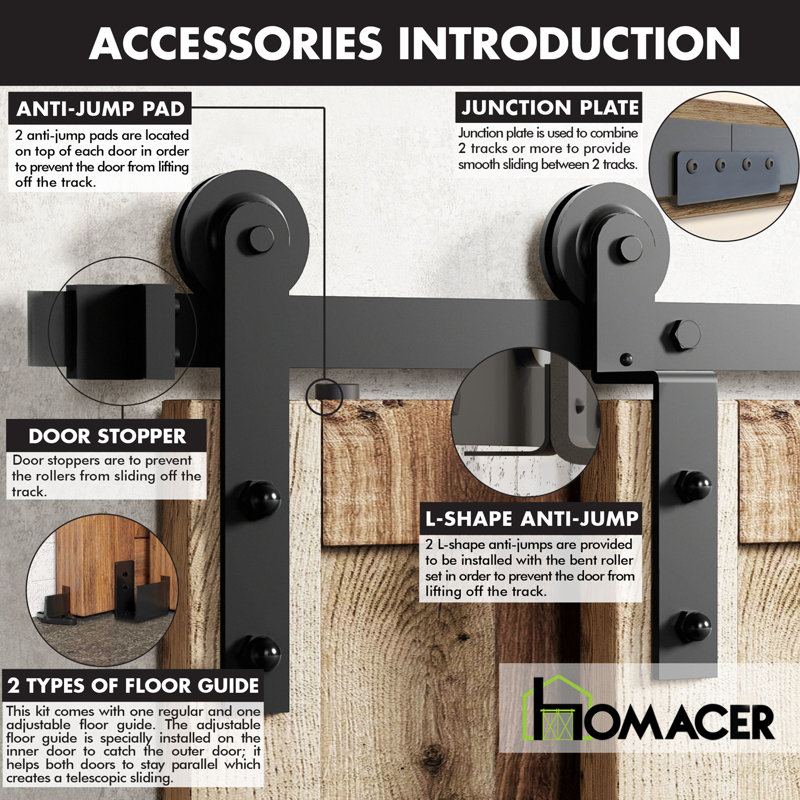

• There is an adjustable floor guide to keep the door from swinging. There are another floor guides to keep the inner doors from swinging as well.
• The door size depends on your opening size. Opening size plus 7" and then dividing by 2 should be the minimum width per door.
• Track 8ft and under is only one piece track. For the one piece bar, the spacing between two mounting holes is 16 inches. Track 9ft and above are connected by 2 or 3 tracks using a junction plate, so the spacing between the holes where the bars connect is not 16 inches, and a header board is needed.
• Premium black rustic carbon steel, heavy-duty, total door(s) weight up to 220 lbs. High-quality nylon wheels ensure minimal noise.
• The hardware package only has lag bolts for wooden walls/drywall.
• If you have a door trim, please put a header board that is as thick as the trim and then attach the rail to the header board.
• You need to have at least 6" of space between the top of the door to the ceiling to accommodate the hardware.

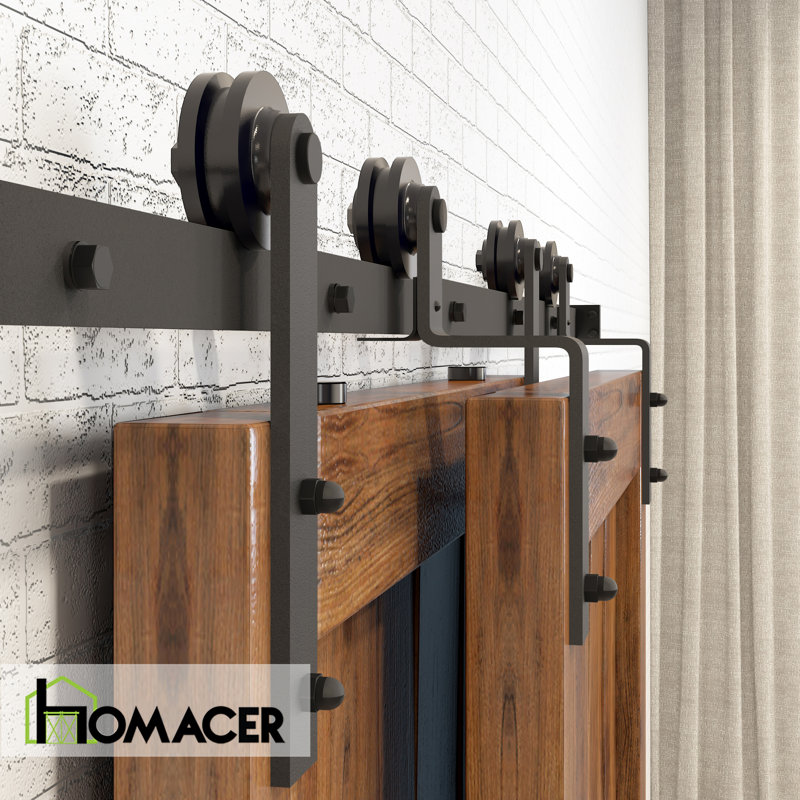

• Two hangers are used to hold one door. For a single track bypass kit double door kit, there will be four hangers in the package: 2 flat & 2 bent. If you have a door that is either too wide or too heavy, then you can purchase additional hangers for that door.

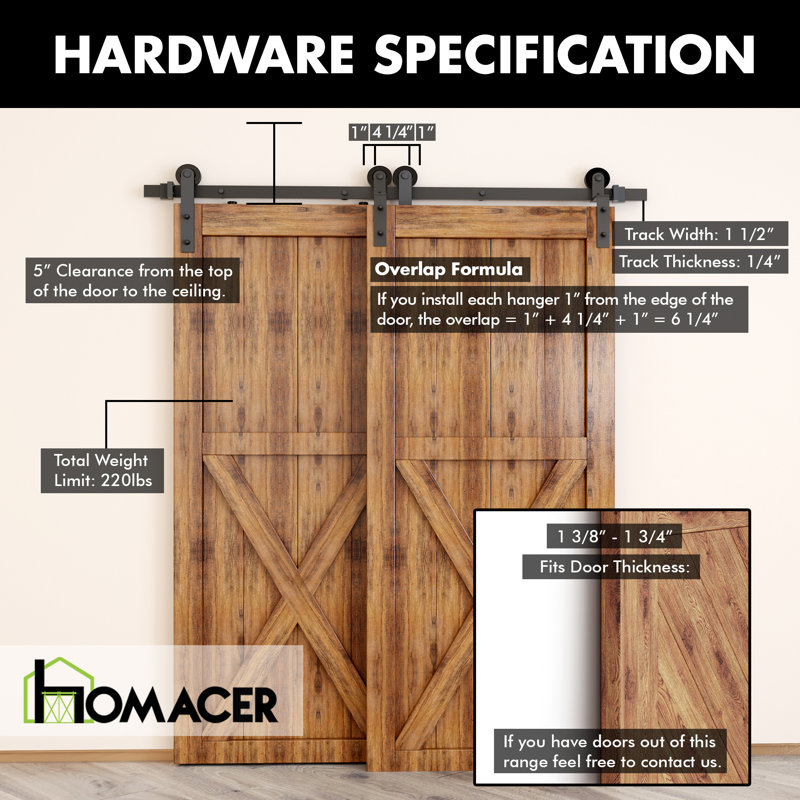

• IMPORTANT: for a single track bypass system with regular roller designs, there will be an inevitable overlap between the two doors when you slide them apart. The overlap is about 6 1/4”, which would shorten the overall coverage by the two doors. For example, if you have two 40” wide doors, the actual coverage that they can achieve will be 2x40”-6 1/4”=73 3/4”, and not 2x40”=80”. Please take this into account before purchasing!
