Ceiling Mount Classic Design Double Track Bypass Two Door Hardware Kit (Door Not Included)

Features

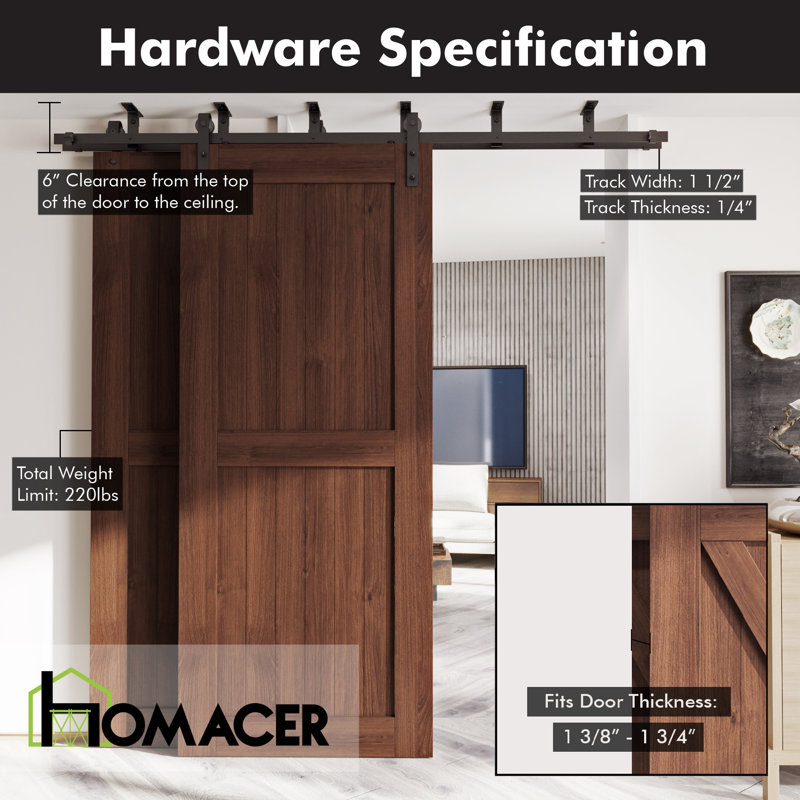

• No longer limited by how far the track sits from the wall, our ceiling-mounted hardware can be adjusted to how far the door sits from the opening. Bolts included will fit for door thickness from 1-3/8 into 1-3/4in. The maximum door thickness that can be used is 1-3/4in. Thinner doors will require shorter hex bolts or spacer extenders which can be purchased separately from us. Doors over 1-3/4in thick cannot be used.

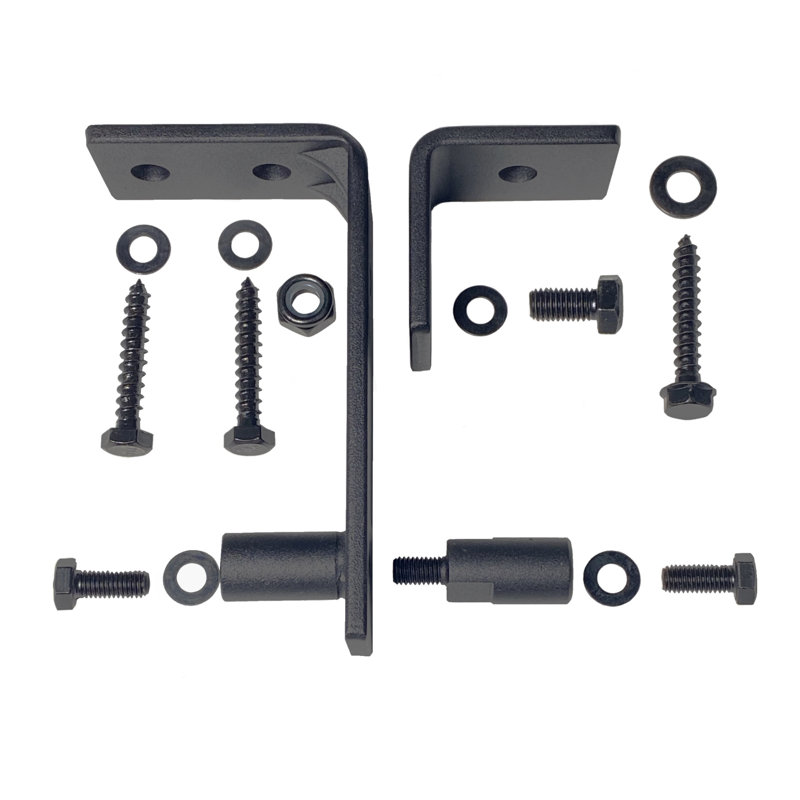

• The steps for installation have been reduced with our brackets coming as one solid piece. With the bracket fully intact, it removes the hassle of fusing around with small parts. You will receive a step-by-step installation manual with U.S. standard measurements, simple instructions, and informative diagrams. All the brackets and bolts need to be installed into ceiling studs. Do not install into drywall. If the ceiling studs do not line up, consider mounting a ceiling board of at least 1-1/2 thick and a minimum of 5-1/2in comprehensive.
• With the hardware mounted to the ceiling, the calculation of your door height is slightly different from regular sliding barn doors mounted to the wall. The necessary spacing from the top of the entrance to the ceiling is 6-3/4in (including the space for the floor guide) for the mounting hardware—door height = ceiling height.
• While other brands only offer a few selected track lengths, we deliver anywhere from 4ft up to 20ft. The spacing between each pre-drilled hole on the track is 16in apart to match studs. Our 7.5ft and shorter tracks all come as one full piece. 8ft and longer will come as two or more pieces joined with a junction plate, therefore the middle section where two tracks join may not be 16 apart. A ceiling board will be required if the holes on the track do not line up with your studs.
• Easy to install. The steps for installation have been reduced with our brackets coming as one solid piece. With the bracket already fully intact, it removes the hassle of fiddling around with small parts. You will also receive a step-by-step installation manual with u.s. Standard measurements, simple instructions, and informative diagrams. All the brackets and bolts need to be installed into ceiling studs. Do not install into drywall. If the ceiling studs do not line up, consider mounting a ceiling board of at least 1-1/2in thick and a minimum of 3in wide.
• Door height calculation. With the hardware mounted to the ceiling, the calculation of your door height is a bit different from regular sliding barn doors that are mounted to the wall. The necessary spacing from the top of the door to the ceiling is 6-3/4in (including the space for the floor guide) for the mounting hardware. Door height = ceiling height - 6-3/4in. If a ceiling board is used, please use the following calculation instead. Door height = ceiling height - ceiling board thickness - 6-3/4in.
• Various track lengths and full sizes. We offer track lengths anywhere from 4ft up to 20ft. The spacing between each pre-drilled hole on the track is 16in apart to match studs. Our 8ft and shorter tracks all come as one full piece. 9ft and longer will come as two or more pieces joined with a junction plate, therefore the middle section where two tracks join may not be 16in apart.
