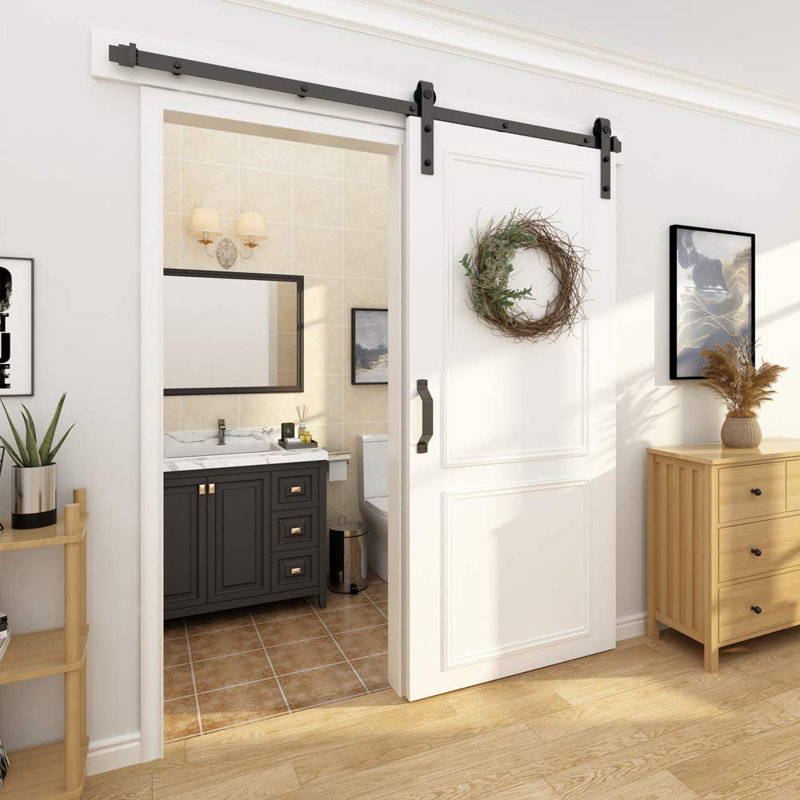

Sliding Standard Single Barn Door Hardware Kit

Features

• The distance from the top of the door to the ceiling should be at least 6 inch
• Fit for door panel thickness: 1-1/2" to 1-3/4". If your door thickness is not within this range, please contact us, and we will provide suitable bolts.
• Usually, we recommend the track length should be at least 2 times the door's width or the opening. For example, if the door is 30'' wide. You will need 2 * 30'' = 60'' long track. Or if you have an opening that is 30'' wide, you will need at least 60'' long track.
• All tracks are pre-drilled holes, the spacing between each hole is American standard 16''. Tracks 7.5ft and under are one complete track, 8ft and above are connected by multiple shorter tracks, and there are connection holes to expand the track at the end of both sides, therefore, the spacing between the holes in the connecting section may not be 16''.
• Packing list： Track; Roller; Spacer； Floor guide； Anti-jump pads； Door stopper； Connector. Only the hardware, Door Not Included.
• The tracks are spliced together, and due to the length of the tracks being too long, they cannot be transported as a whole. This not only makes it easy to be damaged during transportation but also makes installation inconvenient. That is why a spliced track is designed, which has a load-bearing capacity that is as good as the load-bearing capacity of a whole track.
