Name: 1-11/16 in. by 7/16 in. Nylon Roller Assembly, Art Door (Single Pack)
Brand: Prime-Line
SKU: PIFE1284
Availability: InStock

1-11/16 in. by 7/16 in. Nylon Roller Assembly, Art Door (Single Pack)

Sale

About This Product

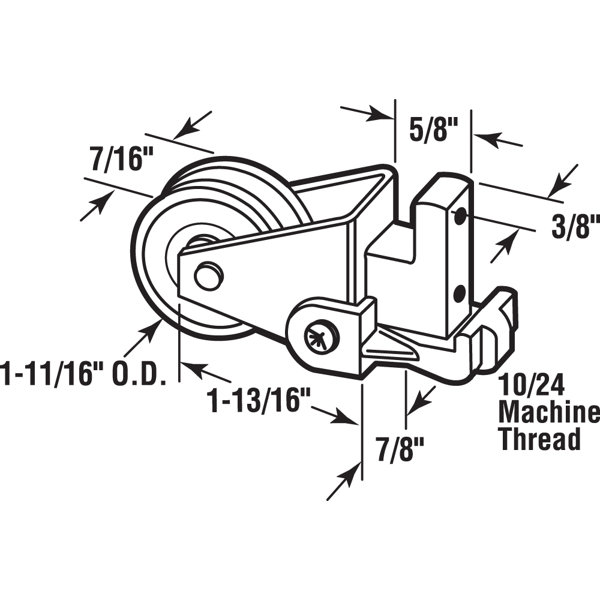

This is a diecast unique back that is used on Art Door patio doors. The 1-11/16 in. diameter by 7/16 in. wide roller is wider than the average roller. It is installed in a stamped steel bracket that is then installed onto the diecast housing. The housing is fitted onto the metal frame bottom rail and held in place by a #10-24 machine screw located just above the adjusting screw.

Features

Diecast and stamped steel housing
Unique diecast housing design
Housing is 7/8 in. wide
Housing is 1-13/16 in. long
1-11/16 in. diameter by 7/16 in. thick concave Plastic ball bearing roller
Rear adjustment screw
One #10-24 threaded mounting hole is located just above the adjustment screw on the back end of the diecast housing

Warranty

Commercial Warranty: No
Product Warranty: Yes
Warranty Length: 1 Year
Full or Limited Warranty: Limited
Warranty Details 2: Warranty: Goods are warranted against manufacturing defects for 1 year. In no case is Prime-Line responsible for user related damage or damage incurred during installation. Warranty is void if products are subjected to abnormal conditions, misapplication or abuse.
