Name: 1-1/4 In. Steel Ball Bearing, F-Tab Style Rollers
Brand: Prime-Line
SKU: PIFE1286
Price: 59.99 CAD
Availability: InStock

1-1/4 In. Steel Ball Bearing, F-Tab Style Rollers

About This Product

This is an F-tab patio door roller assembly with a 1-1/4 in. concave ball bearing roller that replaces the Old Style design. Used on Sun Valley, Fullview, Glasco and a variety of other sliding patio door manufacturers. When the corner screw passes through the "F" tab the assembly is captured by the side stile and bottom rail as the screw draws the two sides together. The housing is 9/16 in. wide and 1-9/32 in. tall, with a rear adjusting screw.

Features

Used by Sun Valley, Fullview, Glasco and a variety of other metal sliding patio door manufacturers
When the corner screw passes through the F-tab the assembly is captured by the side stile and bottom rail as the screw draws the two sides together
Rear adjustment screw
Stamped steel housing with a ball bearing rollers
1-1/4 in. concave steel roller
Replaces old style F style assemblies that slid into an extruded channel in the bottom rail
A Phillips head screwdriver is required for installation

Warranty

Commercial Warranty: No
Product Warranty: Yes
Warranty Length: 1 Year
Full or Limited Warranty: Limited
Warranty Details 2: Warranty: Goods are warranted against manufacturing defects for 1 year. In no case is Prime-Line responsible for user related damage or damage incurred during installation. Warranty is void if products are subjected to abnormal conditions, misapplication or abuse.

1-1/4 In. Steel Ball Bearing, F-Tab Style Rollers

30-Day Return Policy

Customer Reviews

Compare Similar Items

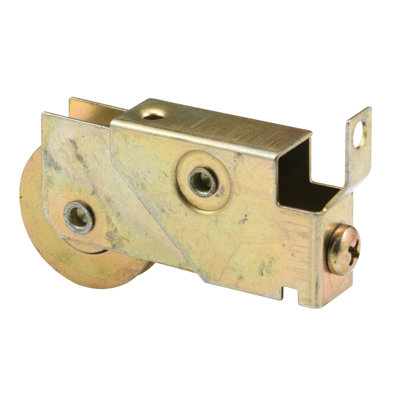

Single 1-1/4 In. Steel Ball Bearing Roller, S-Tab Style, Adjustable
