About This Product

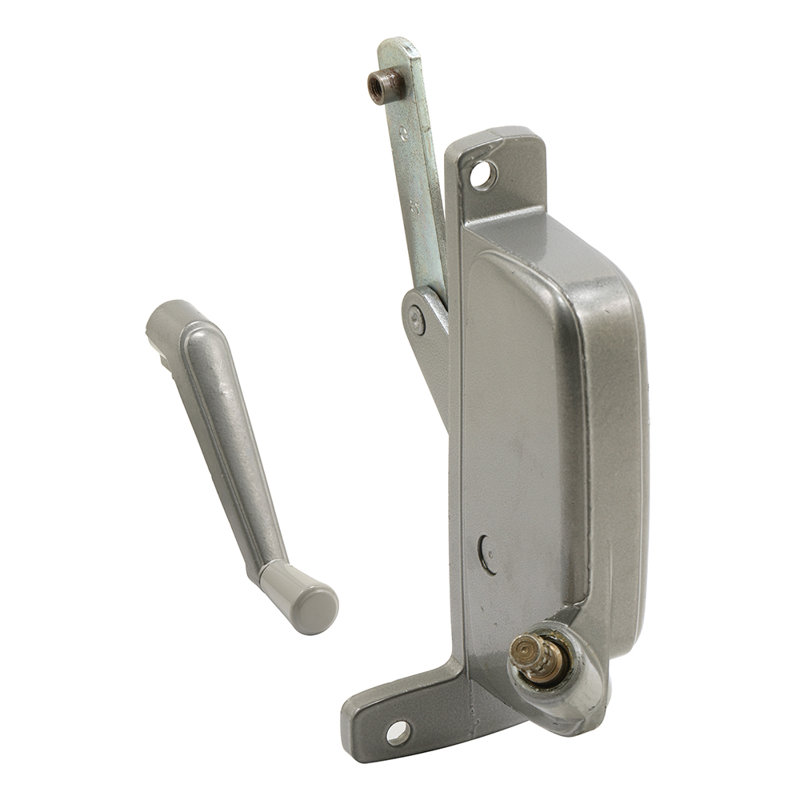

This is an awning operator of aluminum diecast construction with a grey baked enamel finish used on Tucker Windows. It is right-handed with a matching crank handle with a 2-3/8 in. link arm (as viewed for the inside looking out). It has an L shaped mounting hole pattern with a top hole that is off centred. The dimensions are 5-1/4 in. from centre of the top hole to the centre of the bottom hole and the 2 horizontal holes in the bottom leg are 1-1/4 in. on centre.
Not Included:
- Lock
Features
- Constructed of diecast and steel material
- Comes in a neutral grey colour to blend with existing hardware, in a corrosion resistant, baked-on enamel finish
- Designed for use with awning windows manufactured by Look-Rusco Windows
- Features an L-shaped mounting hole pattern to provide greater stability when cranking

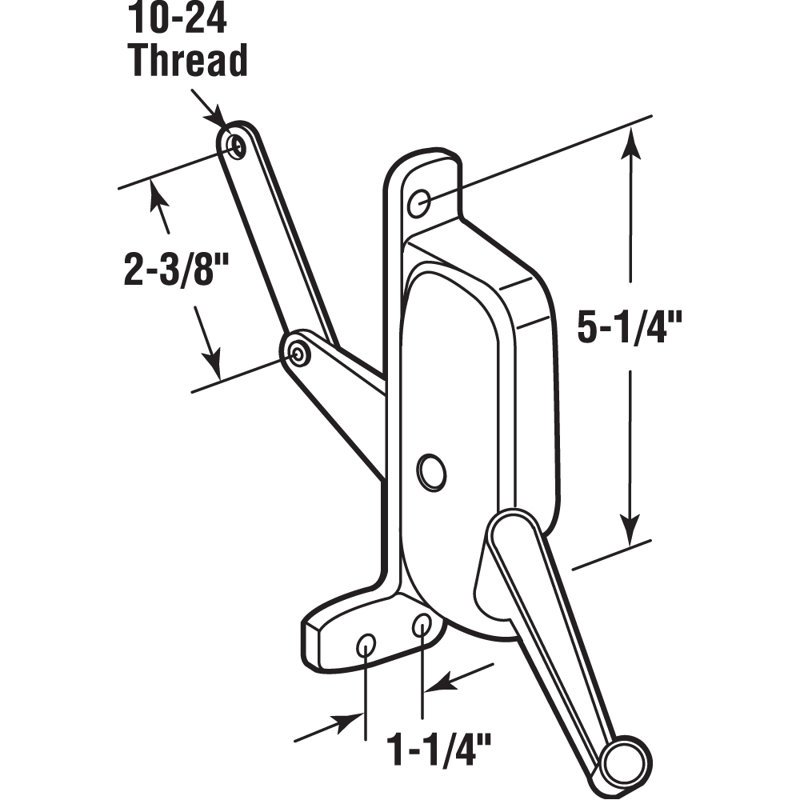

- For further dimensional and specification information, please see the line drawing
- A Phillips head screwdriver is required for installation
- Easy to install with only a few simple tools
