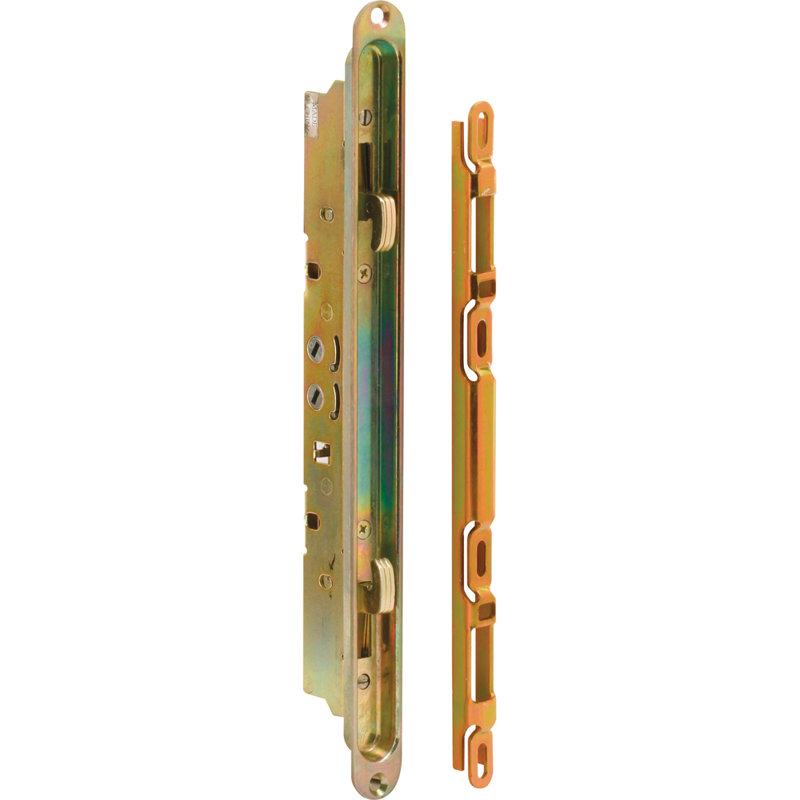

Prime-Line Multi-Point Mortise Latch And Keeper, 12 In. Mounting Holes

Multi-Point Mortise Latch And Keeper, 12 In. Mounting Holes, 17.38" H x 3.82" W x 1" D

Sale

About This Product

This is a multi-point lock constructed of yellow zinc for wood and vinyl sliding patio doors with a 45 degree keyway. The mounting holes are 12 in. on centre, has a 5-5/8 in. on centre between the hooks, a 1-9/16 in. backset, and a 1 in. in width. It includes a heavy-duty keeper and 3 in. long security screws for a secure. Two adjusting screws are found on the face of this lock allowing you to adjust each lock independently.

Features

Used as a multi-point lock for sliding patio doors
Includes a heavy duty keeper
Features a 45 degree keyway to this multi point lock
Each hook can be individually adjusted for the desired projection to fit your application by turning the screws on the faceplate of the lock
Each hook latch is adjusted indepentantly on the face of the multi-point lock with a standard screwdriver

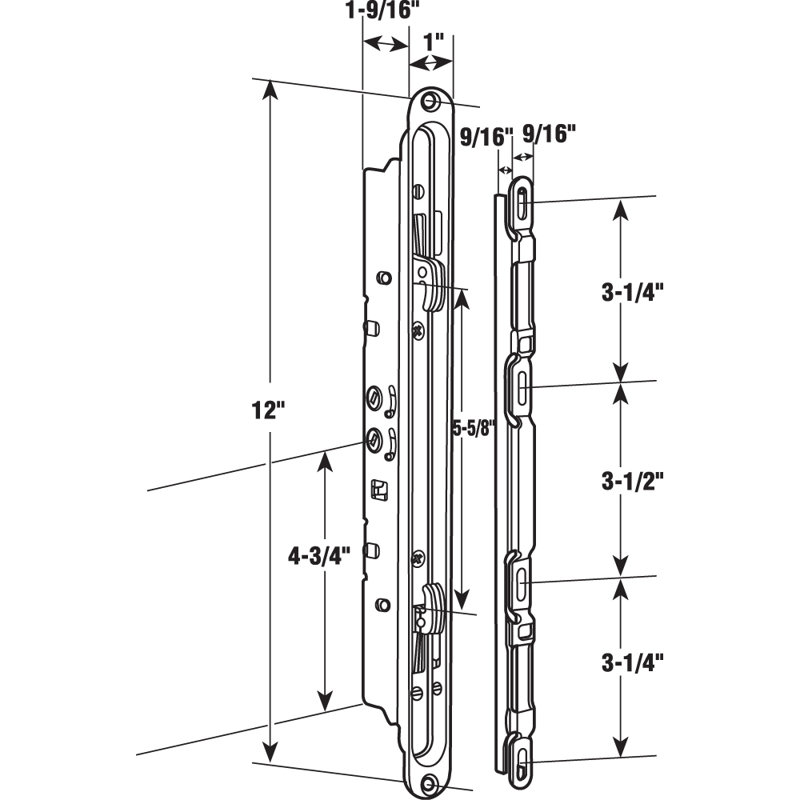

For further dimensional information, please see the line drawing

Details

Product Type: Shutter / Door Accessory
Function: Keyless Entry
Material: Steel
Compatible Door Type: Exterior
Outdoor Use: Yes
Country of Origin: United States
Durability: Corrosion Resistant, Water Resistant, Weather Resistant
Finish: Silver
Pieces Included: Strike
Strike Style: Mortise
Location: Indoor / Outdoor
Compatible With: Exterior Door(s)

Assembly

Assembly Required: No
Additional Tools Required (Not Included): Screwdriver
Mounting / Installation Required: Yes
Additional Parts Required (Not Included): No
Number of Mounting Holes: 5
Mounting / Installation: Mounting / Installation Required

Warranty

Commercial Warranty: No
Product Warranty: Yes
Warranty Length: 1 Year
Full or Limited Warranty: Limited
Warranty Details 2: Warranty: Goods are warranted against manufacturing defects for 1 year. In no case is Prime-Line responsible for user related damage or damage incurred during installation. Warranty is void if products are subjected to abnormal conditions, misapplication or abuse.

Multi-Point Mortise Latch And Keeper, 12 In. Mounting Holes

30-Day Return Policy

Customer Reviews

Compare Similar Items

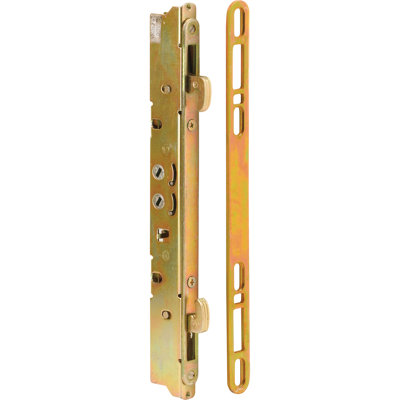

9-7/8 In. Steel, Multi-Point Door Lock And Keeper With 45 Degree Keyway For Sliding Patio Doors

Modena Contemporary Sliding Patio Door Handle with Offset Keylock (Mortise Lock NOT Included)

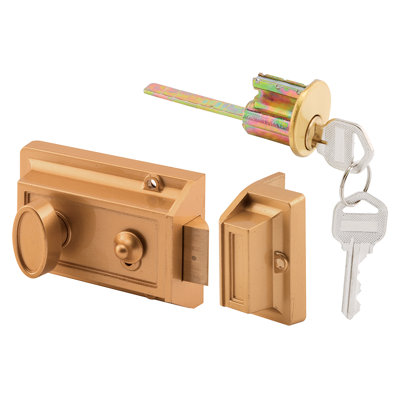

Diecast Brass, Night Latch And Locking Cylinder

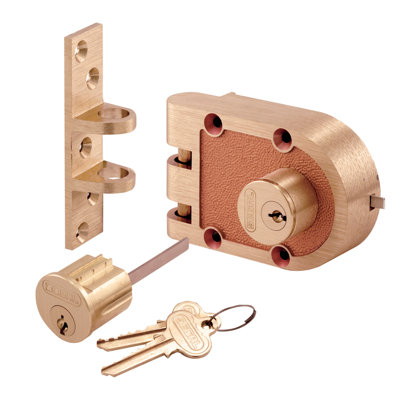

Bronze Deadlock, 2 Cylinder, Flat Strike (Single Pack)
