Name: Single 1-1/8 in. Steel Ball Bearing Roller, C-Tab Style, Adjustable (Single Pack)
Brand: Prime-Line
SKU: PIFE1294
Price: 70.27 CAD
Availability: InStock

Single 1-1/8 in. Steel Ball Bearing Roller, C-Tab Style, Adjustable (Single Pack)

About This Product

This is a C-tab patio door roller assembly with a 1-1/8 in. concave or grooved steel ball bearing roller. The housing is 23/32 in. wide and 1-3/16 in. tall, and 2-5/16 in. long. As the C-shaped tab fits around the corner screw, it is captured by the side stile and bottom rail as the screw draws the two sides together. Used by Merzorr and a variety of other patio door manufacturers.

Features

1-1/8 in. concave (grooved) steel roller
Ball bearing
C-tab housing with rear adjust
As the C shaped tab fits around the corner screw, it is captured by the side stile and bottom rail as the screw draws the two sides together

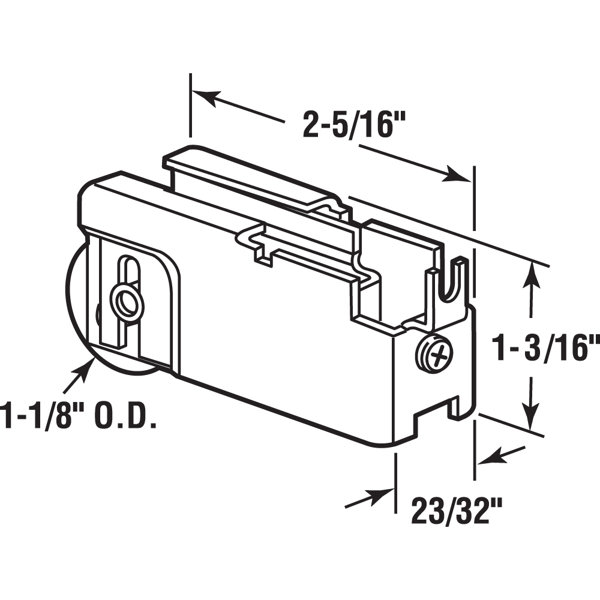

The housing is 23/32 in. wide and 1-3/16 in. tall, and 2-5/16 in. long
Used on metal framed patio doors
Used by Merzorr and a variety of other patio door manufacturers

Warranty

Commercial Warranty: No
Product Warranty: Yes
Warranty Length: 1 Year
Full or Limited Warranty: Limited
Warranty Details 2: Warranty: Goods are warranted against manufacturing defects for 1 year. In no case is Prime-Line responsible for user related damage or damage incurred during installation. Warranty is void if products are subjected to abnormal conditions, misapplication or abuse.

Single 1-1/8 in. Steel Ball Bearing Roller, C-Tab Style, Adjustable (Single Pack)

30-Day Return Policy

Customer Reviews

Compare Similar Items

Stainless Steel Mortise Lock for Patio Sliding Doors Constructed of Wood, Aluminum, and Vinyl, 3-11/16 Inch, 45 Degree Keyway , Silver, Set of 1

1-1/8 In., Steel Ball Bearing, Tandem Roller Assembly

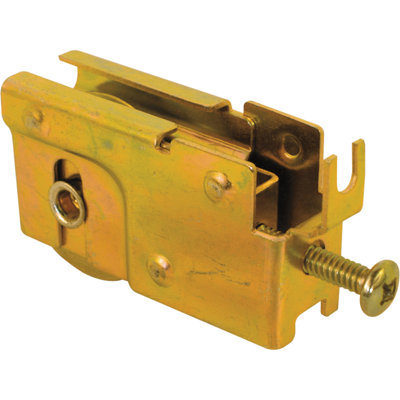

1-1/4 In. Steel, C-Tab Ball Bearing Roller Assembly
