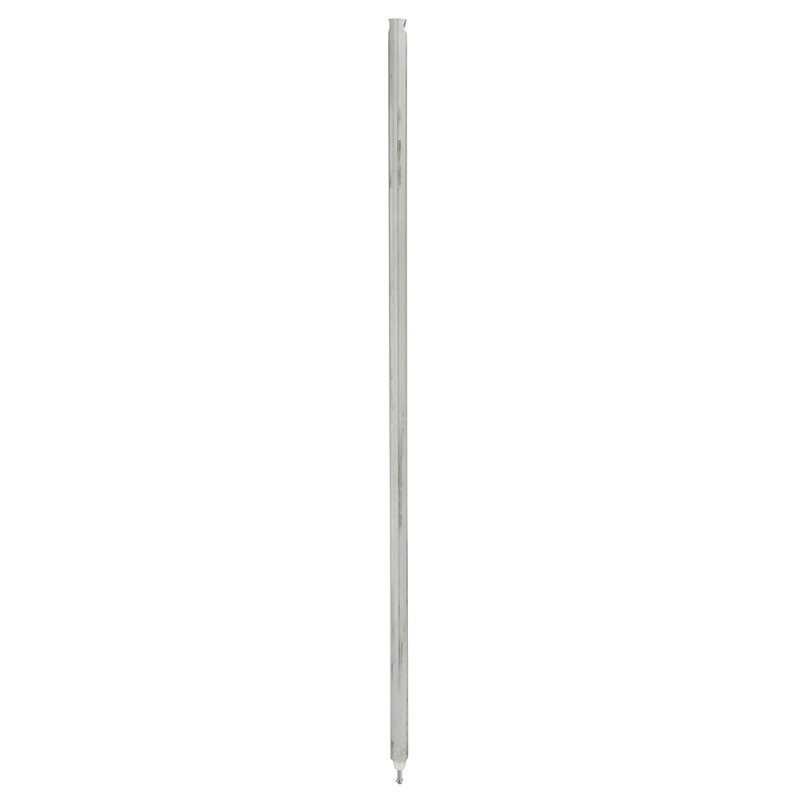

This spiral tilt balance is constructed of a mill-finished metal tube measuring 9/16 inch in diameter. The FH series spiral balance features 2 available rod extensions; one measures 3/4 inch and the other 1-3/4 inch The coloured nylon bushings of these spiral tilt balances indicate their spring and sash weight for which the balances were designed: white = standard (12 pound safe weight); red = medium (25 pound safe weight)and blue = heavy (35 pound safe weight) and black = heavy-duty (50 pound safe weight) . These spiral balances are used on vinyl single hung tilt windows.
Not Included:
Lock
Features
Can be used on vinyl hung tilt windows
White-coloured nylon bushing indicates medium spring weight
Red coloured nylon bushing indicates medium spring weight up to 25 pounds
Blue or black coloured nylon bushing indicates heavy spring weight up to 35 pounds

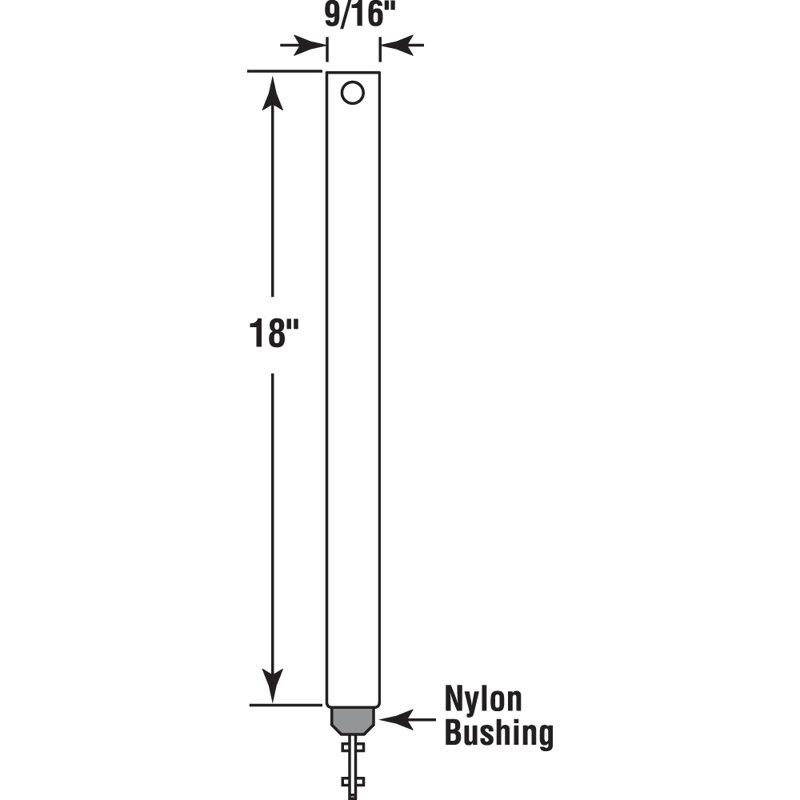

Please refer to the line art drawing for dimensions and compare with your needs before ordering (Not Universal)
Corrosion Resistant, Water Resistant, Weather Resistant
Assembly
Assembly Required
No
Mounting / Installation Required
Yes
Additional Parts Required (Not Included)
No
Number of Mounting Holes
1
Warranty
Commercial Warranty
No
Product Warranty
Yes
Warranty Length
1 Year
Full or Limited Warranty
Limited
Warranty Details 2
Warranty: Goods are warranted against manufacturing defects for 1 year. In no case is Prime-Line responsible for user related damage or damage incurred during installation. Warranty is void if products are subjected to abnormal conditions, misapplication or abuse.
