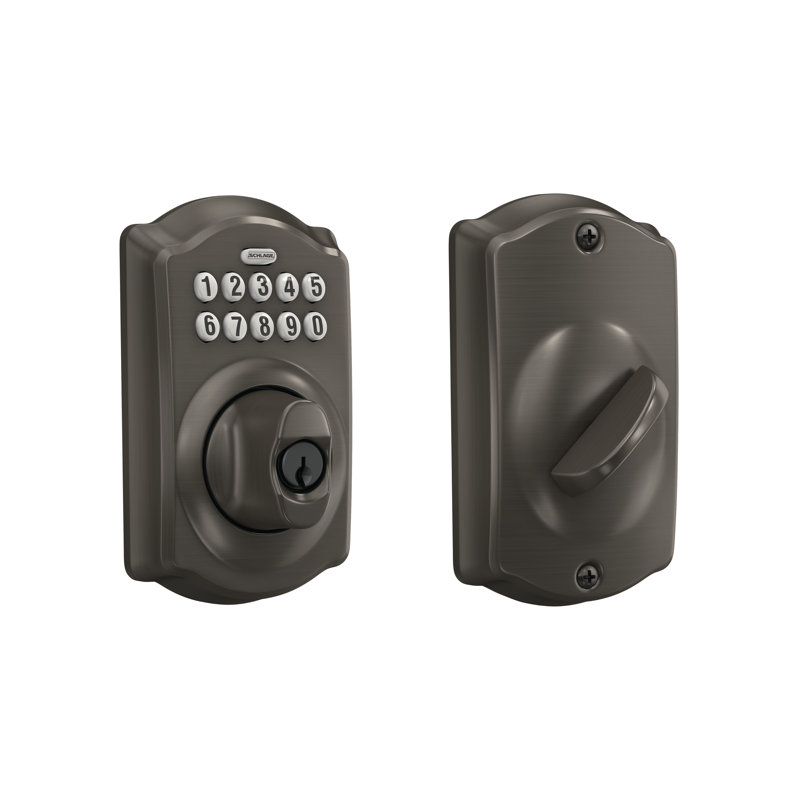

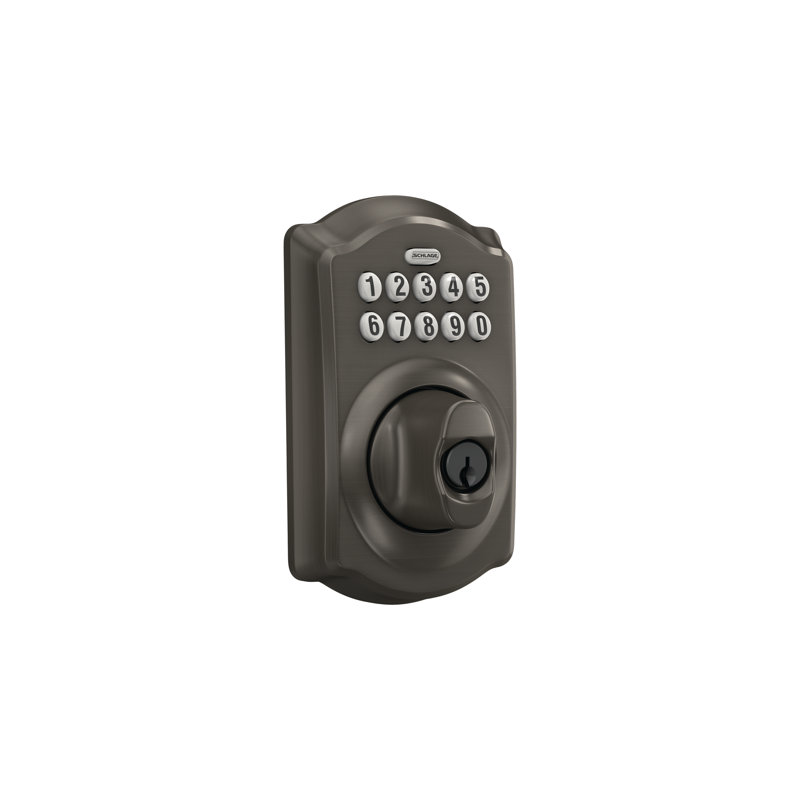

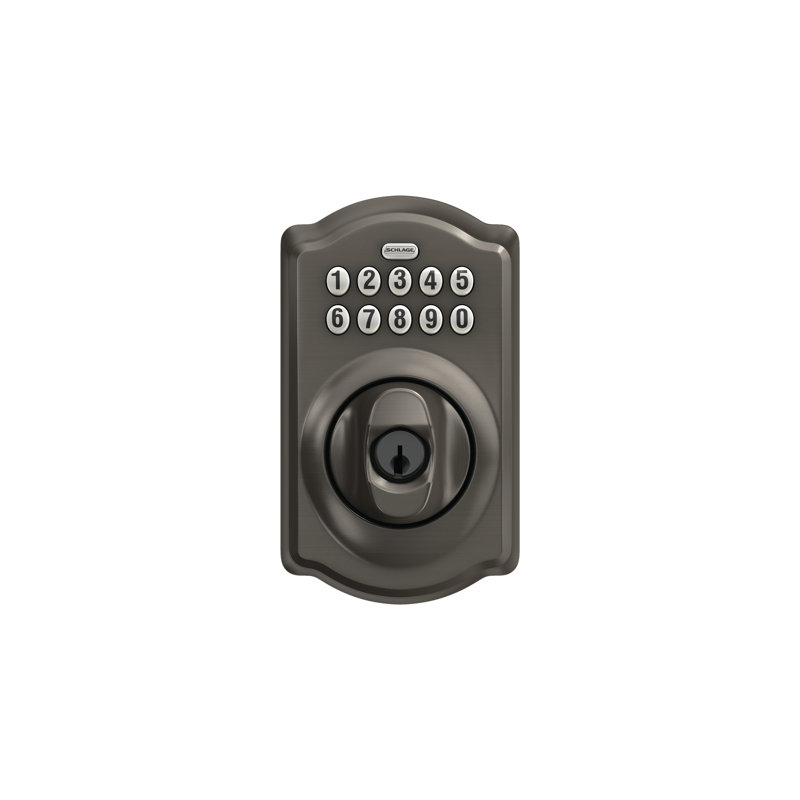

Camelot Electronic Keypad Deadbolt

Features

• Includes all mounting hardware for easy installation.
• C keyway with 12287 latches and 10116 strikes.
• Handle orientation: Universal/Reversible.
• Guaranteed to fit on existing, standard pre-drilled doors.
• For more than 95 years, Schlage has offered durable door hardware in a range of unique style combinations to express any personality.
• Deadbolt thrown from outside by keyway turn after pressing Schlage button or by inside thumbturn.
• Deadbolt retracted from outside by entering valid user code then rotating keyway turn or by inside thumb turn.
• No wiring needed.
• Universal latches slide easily into place and require no tools or manual adjustments.
• Ideal for front doors, side & back doors, garage entry doors, etc.
• Graded best in security, durability, and finish.
• Applications: Residential single and multi-family doors.
• Battery: Uses 1 9V battery.
• Keying: 5-pin tumbler C keyway with one nickel silver key.
• Operating temperatures: Outside escutcheon: -35C to 66C
• Inside escutcheon: -10C to 50C.
• Codes: 2 pre-set unique 4-digit access codes, storage of up to 19 access codes.
• Certified commercial grade 2.
• Commercial standard certification: ANSI/BHMA A156.36-2010.
• Residential standard certification: ANSI/BHMA A156.40-2015.
• Easy installation with Phillips screwdriver.
• Self-aligning screw holes make installation easy and hassle-free.
