Product Dimensions

Product Dimensions

At a Glance

  • Lit Keypad / Touchscreen

Features

  • Featuring SmartKey Security, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds.
  • SmartKey Security re-key technology is compatible with Kwikset (KW1) keyway
  • Keyed lever operated by key outside or electronic keypad and thumb turn inside
  • Comes with 2 keys
  • Latch has 2 interchangeable faceplates; round corner and square corner
  • Certified Highest Residential Security, Durability and Finish - ANSI/BHMA Grade AAA

Assembly

Number of Mounting Holes
1

Details

Product Type
Electronic Door Lever
Electronic Lock
Yes
Function
Keyless Entry, Keyed (Entry)
Material
Aluminum, Metal
Durability
Fire Resistant, Pick Resistant, Tamper Resistant, Weather Resistant
Outdoor Use
Yes
Country of Origin
Taiwan
Motorized
Yes
SmartKey
Yes
Handle Orientation
Universal/Reversible
Battery or Batteries Included
Yes
Finish
Satin Nickel
Auto-Lock
Yes
Mode of Entry
Keypad
Temporary Access
Yes
App Enabled
Not App Enabled
Lit Keypad / Touchscreen
Yes
Pieces Included
Exterior Lever, Installation Hardware, Interior Lever, Key(s), Latch, Strike
Battery Size
9-Volt
Power Source
Battery Powered
Lever Shape
Wave/Drop
Handle Style
Lever
Keyway Type
KW
Rosette Shape
Arch
Compatible Door Type
Exterior
Number of Deadbolt Cylinders
Single Cylinder
Door Handing
Reversible
Lock Type
Electronic, Keyless, Key
Lockable
Yes

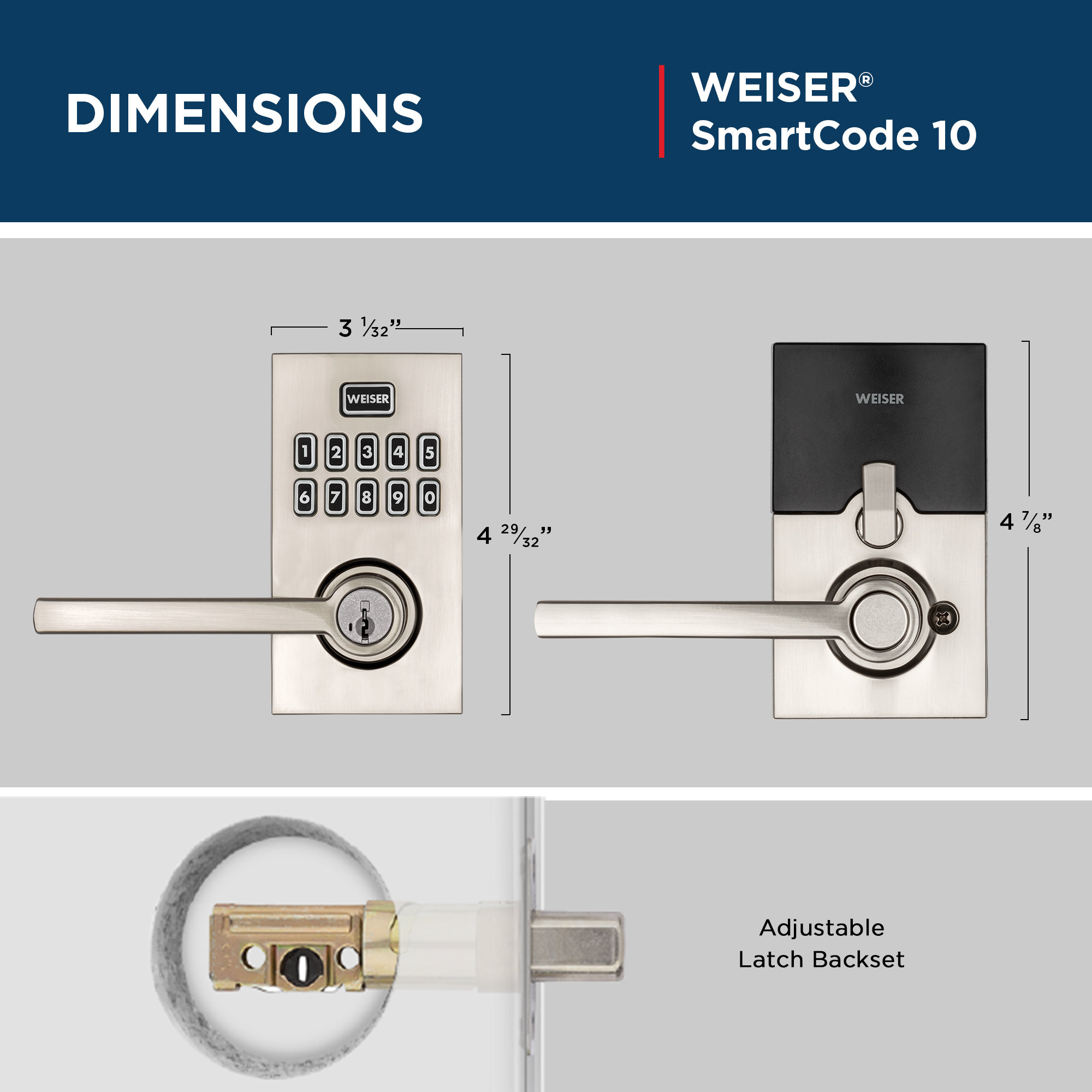

Other Dimensions

Overall
4.91'' H X 5.79'' D X 5.79'' W
Overall Product Weight
4.42 lb.
Edge Bore Diameter
1''
Bore Hole Diameter
2.12''
Backset
Adjustable
Door Thickness Compatibility
1.375"

Warranty

Commercial Warranty
No
Product Warranty
Yes
Warranty Length
Lifetime
Full or Limited Warranty
Limited
  • Latch has adjustable backset 2-3/8" to 2-3/4" to fit all standard door preparations

About This Product

Add a level of security and style to your home with the SmartCode touchpad electronic lever. Designed with a sleek style to complement your home's interior, you can lock up your home office, wine cellar, or storage room and never have to worry about keys. To gain entry, simply enter your personalized access code, while locking is as easy as touching a button. SmartCode is easy to install, program and use and operates on 4 AA batteries. It also features SmartKey re-key technology as the backup keyway. This entry lever can be locked or unlocked by using the keypad or key from the outside as well as the turn button from the inside. The crisp, clean appearance of the finish adds to the overall look of the product and brings a modern feel.
$151.99 was$209.9928% Off
Sale

Certifications

ANSI/BHMA Grade
2
Safety Listing(s)
UL Listed
