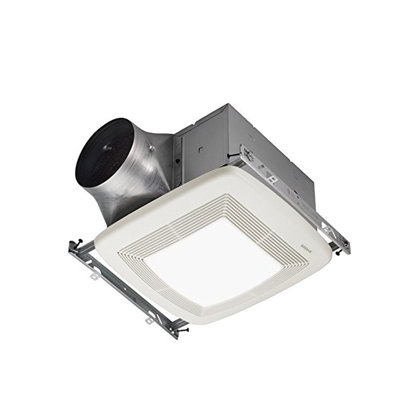

This is a duplicate of sku BRN1856 (see csr note) - please don't set live, use sku BRN1856This is a duplicate of sku BRN1834 (see csr note) - please don't set live, use sku BRN1834One thing wasn't changed to make installation faster-everything was changed. From the unique telescoping mounting frame that fits through retrofit drywall openings without a need for attic access to this easy-to-insert snap-in blower and housing, This was designed the Ultra Series to be the fastest, easiest, most universal installation. Don't let the uncertainty of what's behind the drywall stand in your way. Take on any installation knowing that Ultra Series Ventilation Fans and Fan/Lights will make it easier and faster-up to 60% faster in retrofit installations and up to 20% faster in new construction. Because you don't make money by wasting time.
This is an excellent bathroom fan and can be used as a fan replacement. The directions are lacking in explaining how to wire the fan and lights. With reference to page 12, the switch connected to the BLACK fan wire is called the MASTER switch and the switch connected to RED fan wire the MODE switch. To operate the fan the master switch needs to be ON. If the MODE switch is ON when the MASTER switch is turned ON the fan will run at the rated speed. If the MASTER switch is turned ON and the MODE switch is OFF the fan motor will not run. If both switches are ON the fan motor will run at the rated speed. If after both switches are ON and then the MODE switch is turned OFF, after the time set by the "TIME" control, the fan motor will run at the speed set by the "CFM" control. The fan will run at this reduced speed until the MASTER switch is turned OFF. In order, to operate all four functions(MASTER, MODE, Light, and Night light) independently four single pole switches would be required.
If one would like to use one three coductor wire, three switches, and have the light on when the fan is running the FAN wire (BLACK) and the LIGHT wire(RED) would be connected to the same single pole switch. If the MODE switch is then turned OFF, the light be go "OFF" and the fan will complete it cycle of operation.
Operation with two single pole switches and one three conductor wire.
With two single pole switches this fan and light can be arranged to operate in a wonderful manner. One switch is connected to the MASTER line(Black wire) of the fan and to the wire of the night light(Red wire). The second switch is connected to the mode wire of the fan(Red wire) and the light wire(Blue wire).. Charlieb. Marietta, Ga, USA. Thu Dec 26 2013
