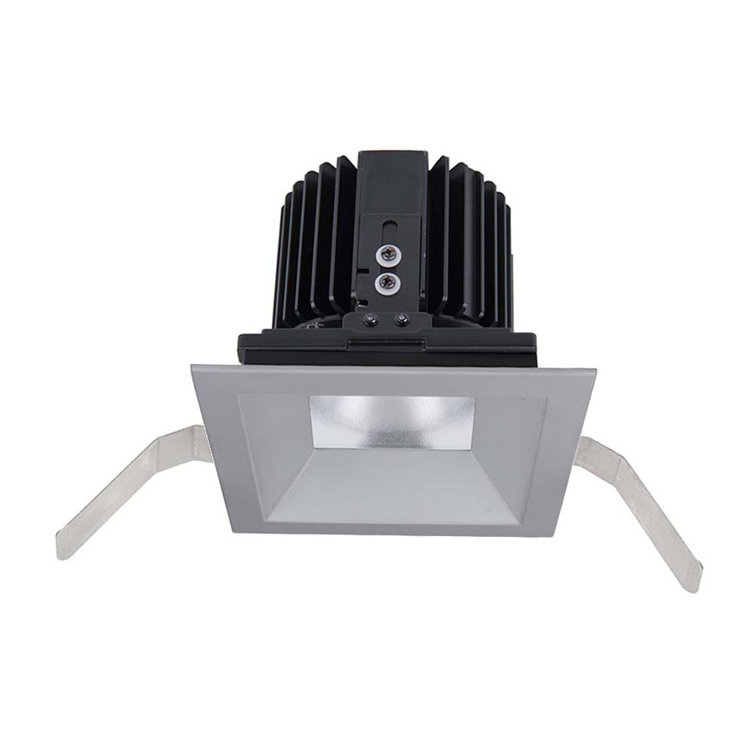

Volta 5.75'' Dimmable Air-Tight LED Retrofit Recessed Lighting Kit, Haze

Not pictured: Haze

Volta 5.75'' Dimmable Air-Tight LED Retrofit Recessed Lighting Kit R4SD1T-F835-HZ

ByWAC Lighting

Trim Finish:

Haze

FREE Delivery

Get it Sat, Jul 18 - Tue, Jul 21

M4C 1B5

Services

Add Protection Plan -

$66.99 ($13.40/year)

At a Glance

Trim Size: 5.75 ''

Built-in LED Light

Dry, Damp or Wet Location Rated: Wet

Dimmable

Volta 5.75'' Dimmable Air-Tight LED Retrofit Recessed Lighting Kit R4SD1T-F835-HZ

ByWAC Lighting

Trim Finish:

Haze

FREE Delivery

Get it Sat, Jul 18 - Tue, Jul 21

M4C 1B5

Services

Add Protection Plan -

$66.99 ($13.40/year)

At a Glance

Trim Size: 5.75 ''

Built-in LED Light

Dry, Damp or Wet Location Rated: Wet

Dimmable

About This Product

Volta is the quintessential high-performance LED architectural recessed downlight. Volta housings can be specified with one of three (15W, 25W, 36W) serviceable drivers to plan your project in accordance with energy and lighting requirements up to 3,000 lumens. Volta trims include a LED light engine with a replaceable high powered LED module. Tool less in field adjustable glare control and optic system can be used for louvers, lens and beam control.

Features

Comes with LED light engine flood
Beam spread: Flood 45
Volta trim includes LED light engine with replaceable high powered LED module
Energy star certified and CEC title 24 compliant (Title 24 only in 90CRI version)
Smooth and continuous dimming to 1% with an electronic low voltage dimmer or 0-10V dimmer
Chicago plenum safety rating and emergency backup battery options
Can be driven with 15 W, 25 W or 36 W driver for varying lumen output
All volta trims are wet location standard
ALA Compliant: Yes
Energy Star Compliant: Yes
Voltage Type: Line voltage
Installation Required: Yes
Aperture size: 4.5"

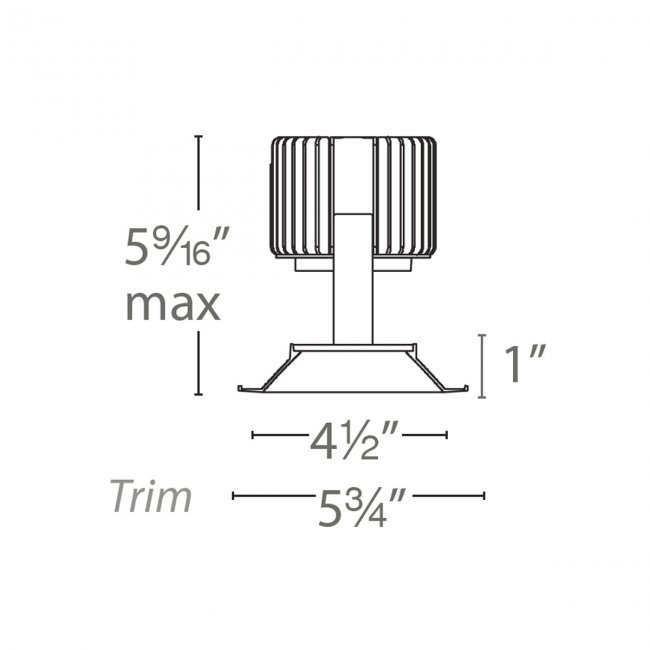

Product Dimensions

Other Dimensions

Overall Dimensions: 5.63'' H X 5.75'' W
Overall Product Weight: 2.39 lb.
Trim Length: 5.75'' L
Trim Size (Aperture): 5.75''
Trim Width: 5.75'' W

Documents

Specifications (pdf)

Details

Product Type: LED Retrofit
Total Number of Pieces Included: 1
Construction Type: Remodel
Trim Shape: Square/Rectangle
Dry, Damp or Wet Location Rated: Wet
What is Dry, Damp or Wet Location Rated?: This indicates whether the fixture is safe to use in dry locations, damp locations (moist environments), or wet locations (direct exposure to water).
Country of Origin: United States
Material: Metal
Housing Required: Yes
What is Integrated LED?: This indicates that an LED light is built into the fixture. Integrated LED lights are more energy efficient and can last up to 50,000 hours. They cannot be replaced by the customer.
Voltage: 277 Volt
Bulb / Light Type: Integrated LED
General Features: Airtight
Built-In Features: Dimmable, Adjustable Light Beam
Location: Indoor / Outdoor

Part Number

R4SD1T-F835-HZ: Trim Finish: Haze
