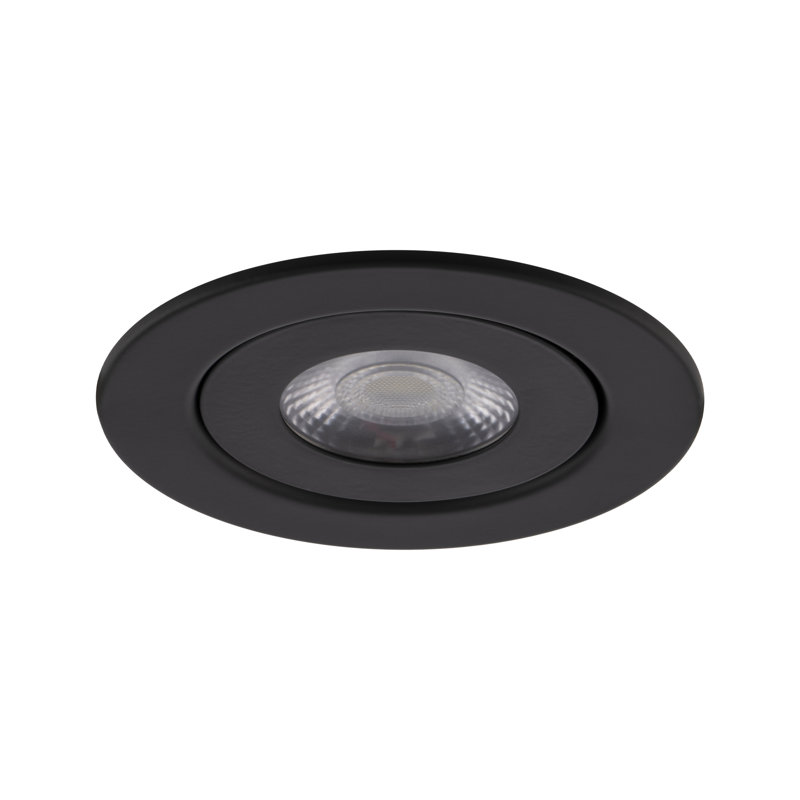

Lotos Ultra Slim Selectable Remodel IC LED Canless Recessed Lighting Kit, 1.63" H x 4.73" W x 4.73" D, Black

Not pictured: Black

Lotos Ultra Slim Selectable Remodel IC LED Canless Recessed Lighting Kit (Set of 24) R4ERAR-W9CS-BK-24

ByWAC Limited

Finish:

Black

Size:

1.63" H x 4.73" W x 4.73" D

FREE Delivery

Get it Sat, Jun 27 - Tue, Jun 30

M4C 1B5

Sold in Set of 24

Services

5 Year Protection Plan -

$128.99 ($25.80/year)

At a Glance

Insulation Type

Sloped Ceiling Compatible

Trim Size: 3.75 ''

Dimmable

Lotos Ultra Slim Selectable Remodel IC LED Canless Recessed Lighting Kit (Set of 24) R4ERAR-W9CS-BK-24

ByWAC Limited

Finish:

Black

Size:

1.63" H x 4.73" W x 4.73" D

FREE Delivery

Get it Sat, Jun 27 - Tue, Jun 30

M4C 1B5

Sold in Set of 24

Services

5 Year Protection Plan -

$128.99 ($25.80/year)

At a Glance

Insulation Type

Sloped Ceiling Compatible

Trim Size: 3.75 ''

Dimmable

About This Product

The wafer-thin Lotos LED Recessed Kit with remote driver combines high quality light output and efficiency while eliminating the need for a large housing. This innovative design can be installed easily as a remodel or new construction with an optional frame-in kit sold separately for pre-wiring. Lotos is available in a downlight version for general ambient lighting and an adjustable version with a gimbal that pivots 360 degrees on a hinge, perfect for slope ceilings, general lighting, accenting lighting, and wall washing. The integrated high output and energy efficient Lotos LED module maintains at least 70% light output for 50,000 hours. The Lotos is ideal for shallow ceiling applications with as little as 3-inch plenum clearance. Lotos LED is offered in round and square with 2in, 4in, and 6in aperture options. Use part # R2ESAR-2 or R2ESAR-3 for the multi-light option with 2 and 3 light configurations. Now with a fire rated version, -FWT.

Features

Lotos Adjustable is a complete LED recessed adjustable downlight kit with light engine and driver included. Lotos LED is offered in round and square with 2in, 4in, and 6in aperture options. Use part # R2ESAR-2 or R2ESAR-3 for the multi-light option with 2 and 3 light configurations.
This innovative design can be installed in the shallowest ceiling depths as a remodel or new construction with an optional frame-in kit sold separately for pre-wiring (part # RER-FRAME). 6ft extension cable (Part # RER-6) is available to increase distance from driver to downlight.

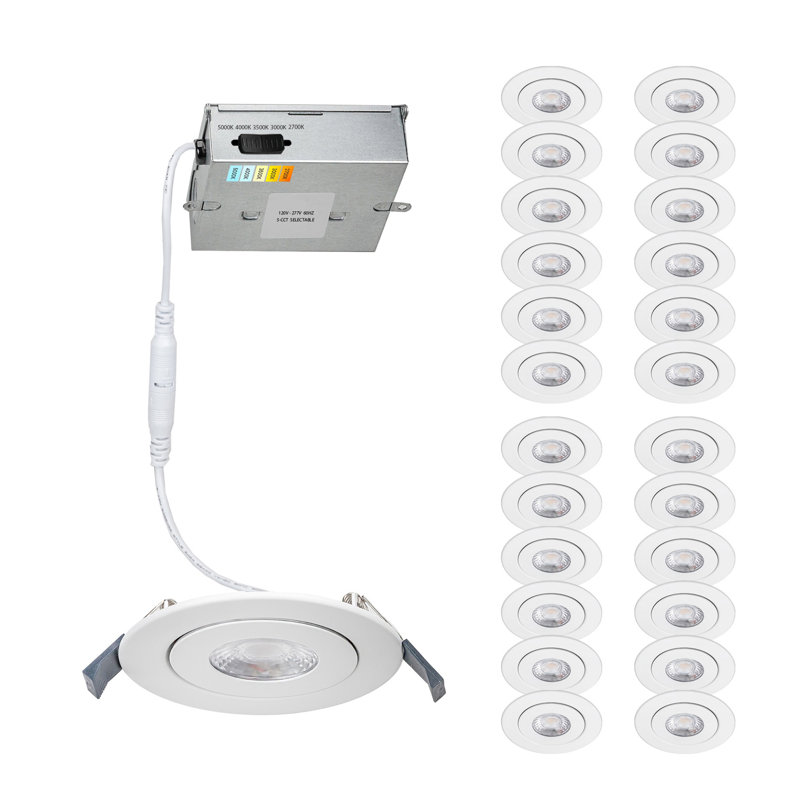

A Universal Input Voltage Driver (120V-240V-277V) is contained in a steel housing with space for line-voltage electrical connections. Driver housing includes a 6in low voltage plug-and-play connector that connects to the downlight.
Smooth and continuous dimming that works with most standard LED dimmers. We recommend using an electronic low voltage or TRIAC dimmer.
High Powered LED's up to 795 Lumens rated at LM70 for 50,000 hours and a 5-CCT selectable switch that allows you to toggle between 2700K Warm - 3000K Warm White - 3500K White - 4000K Cool White - 5000K Natural White all at the flick of a switch.

Details

Integrated LED Wattage: 9 Watt
Product Type: LED Canless
Total Number of Pieces Included: 24
Construction Type: New Construction, Remodel
Insulation Type: IC Rated for Insulated Ceilings
Trim Shape: Circle
Integrated LED Brightness (Lumens): 795lm
Trim Style: Adjustable
Dry, Damp or Wet Location Rated: Wet
Integrated LED Rated Lifespan: 50,000 hours
What is Dry, Damp or Wet Location Rated?: This indicates whether the fixture is safe to use in dry locations, damp locations (moist environments), or wet locations (direct exposure to water).
Sloped Ceiling Compatible: Yes
Airtight: Yes
Outdoor Use: Yes
Country of Origin: China
Material: Metal
Dimmable: Yes
Adjustable Light Beam: Yes
Transformer Required: Yes
Maximum Wattage (Per Bulb): 9 Watt
Integrated LED: Yes
What is Integrated LED?: This indicates that an LED light is built into the fixture. Integrated LED lights are more energy efficient and can last up to 50,000 hours. They cannot be replaced by the customer.
Bulb Not Included But Required: No
Number of Lights: 24
Voltage: 277 Volt
Adjustable Colour Temperature: Selectable
Colour Temperature Options: 3000K, 4000K, 3500K, 2700K, 5000K
Pieces Included: Transformer
Bulb / Light Type: Integrated LED
Minimum Colour Temperature: 2,700K
Maximum Colour Temperature: 5,000K
Integrated LED Colour Rendering Index (CRI): 90
General Features: Airtight
Built-In Features: Dimmable, Adjustable Light Beam
Bulb Features: Selectable
Location: Indoor / Outdoor
Compatible With: Sloped Ceiling

Customer Reviews

Rated 4.7 out of 5 stars.

6 Reviews

Showing 1-5 of 6 reviews

Filter by keyword

Most relevant

Sort By

Rated 5 out of 5 stars.

AmirNV

Size:1.63" H x 4.73" W x 4.73" D

Absolutely perfect for giving extra bling to our bridal collections

May 11, 2023

Rated 4 out of 5 stars.

DanielPA

Size:1.63" H x 4.73" W x 4.73" D

generally looks good but there are some that keep blinking

Dec. 08, 2024

Rated 5 out of 5 stars.

MeredithNew Fairfield, CT

Size:1.63" H x 4.73" W x 4.73" D

These lights are stunning and have given so much light to our new kitchen. They are low profile, small, dimmable but pack a punch! And, before installed, you can even select the kelvin temperature you want.

Nov. 14, 2022

Rated 5 out of 5 stars.

Anonymous

Size:1.63" H x 4.73" W x 4.73" D

Exactly what I needed: Easy to install, selectable color temperature, and vary flexible angles

Apr. 01, 2022

Rated 4 out of 5 stars.

KeciaWarwick, NY

May 18, 2026
