5 Inch High Temp Glass Filled Nylon Swivel Top Plate Caster Set with 2 Brakes

FREE Delivery

Get it Wed, Jul 29 - Sat, Aug 1

M4C 1B5

Everything ships FREE*

About This Product

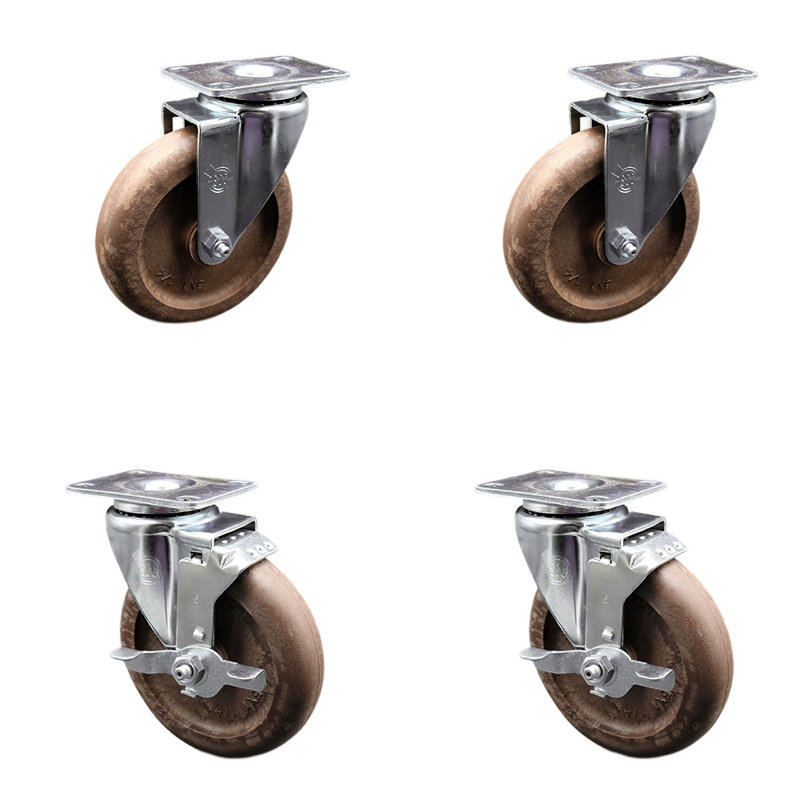

The listing is for a set of four (4) service caster series #20 swivel casters, two (2) with top locking brakes, with 5" diameter by 1-1/4" wide high temp glass filled nylon wheels capable of supporting a total weight of 1,400 lbs. (350 lbs./caster).

Features

Weight capacity: 350 lbs capacity/caster
The top plate measures 2-1/2" x 3-5/8" with a bolt-hole pattern of 1-3/4" x 2-7/8" to 3" and can either be bolted or welded on.
Brake options include a top lock brake (TLB) or a total lock brake (TTL). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL) also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a completely stationary position.
Bolt size: 5/16" (hardware not included)
