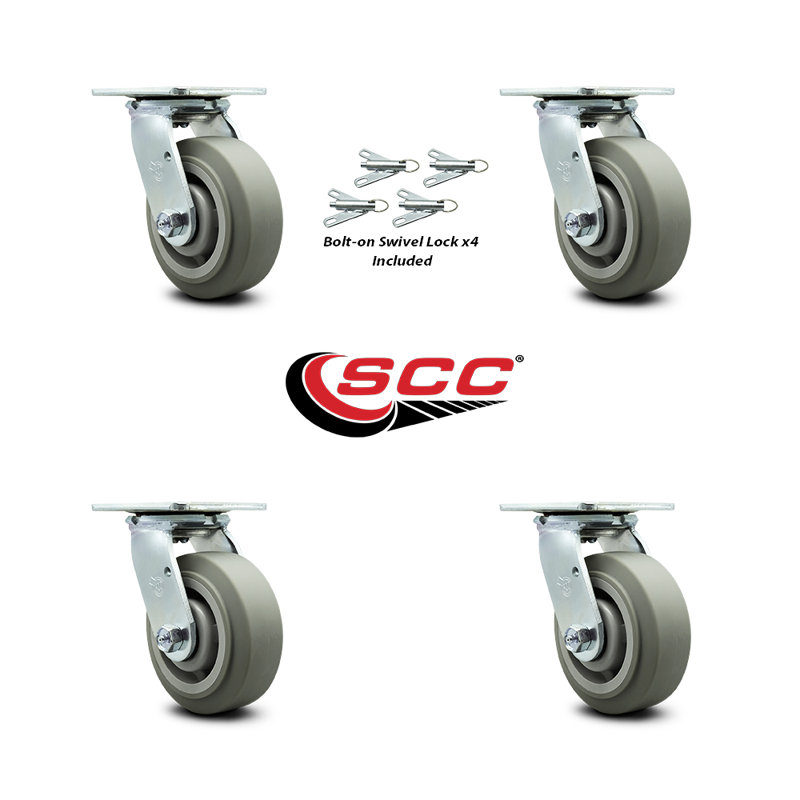

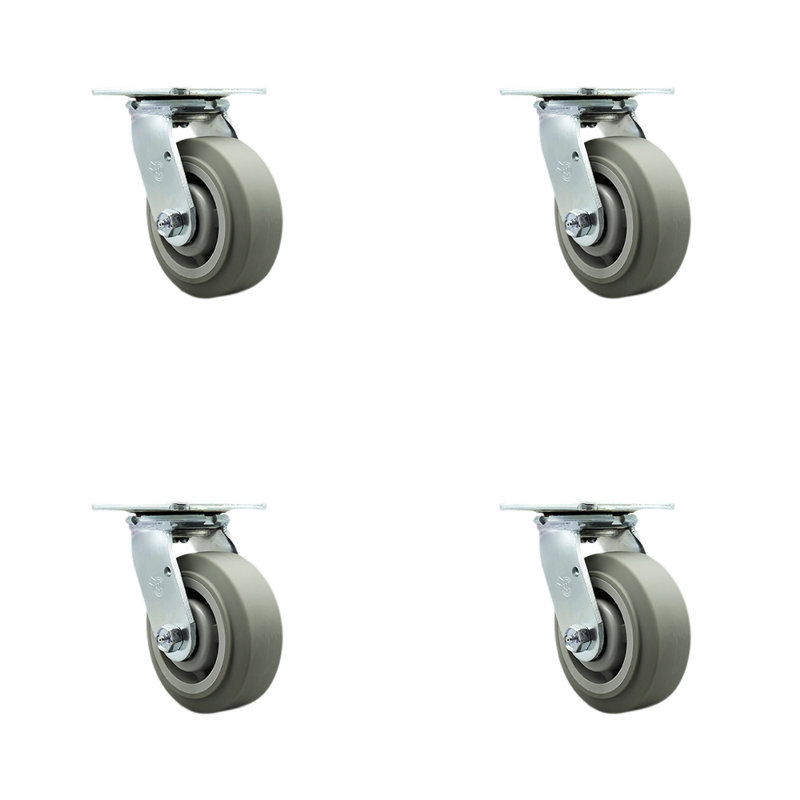

5 Inch Thermoplastic Rubber Caster Set with Roller Bearing and Swivel Lock SCC|SCC-30CS520-TPRRF-BSL-4 (Set of 4)

Features

• These service caster series #30 thermoplastic rubber flat tread on polyolefin core casters offer various wheel sizes and mounting heights: 4” wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8” wheel: 9-1/2” mounting height.
• Weight capacity: 4": 300 lbs capacity/caster, 5": 350 lbs capacity/caster, 6": 500 lbs. capacity/caster, and 8": 600 lbs capacity/caster

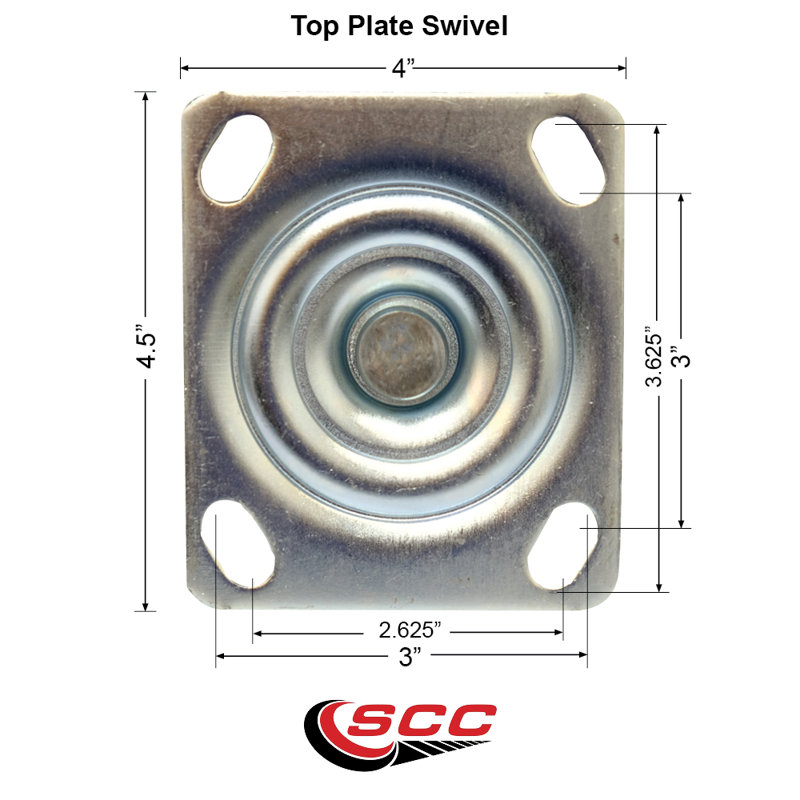

• Top plate measures at 4" x 4-1/2" with a bolt hole pattern of 2-5/8" x 3-5/8" to 3" x 3" and can either be bolted or welded on.

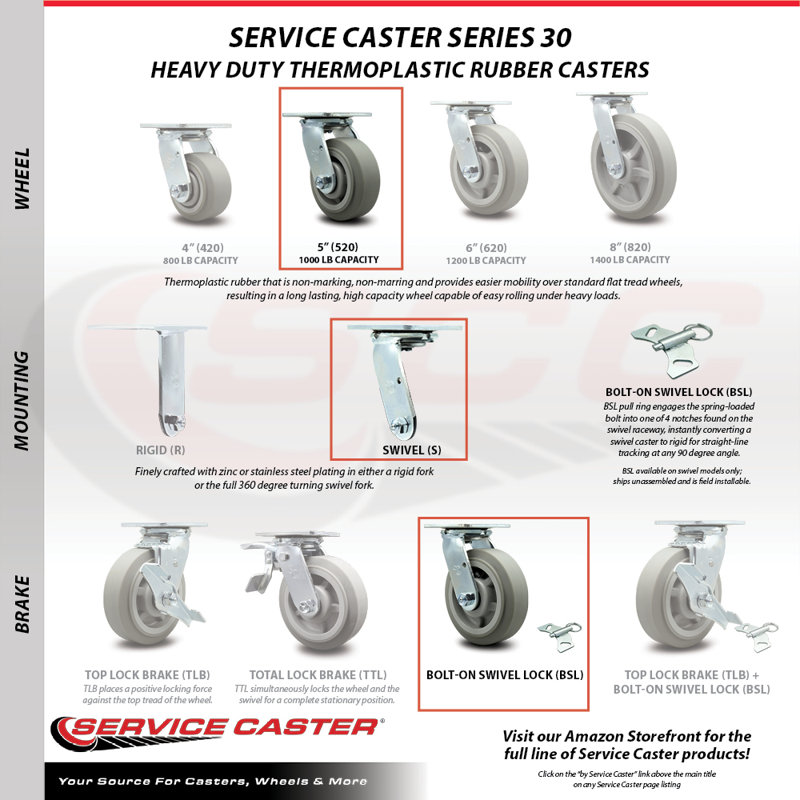

• Brake options include a top lock brake (TLB) and a total lock brake (TTL). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL) also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.
