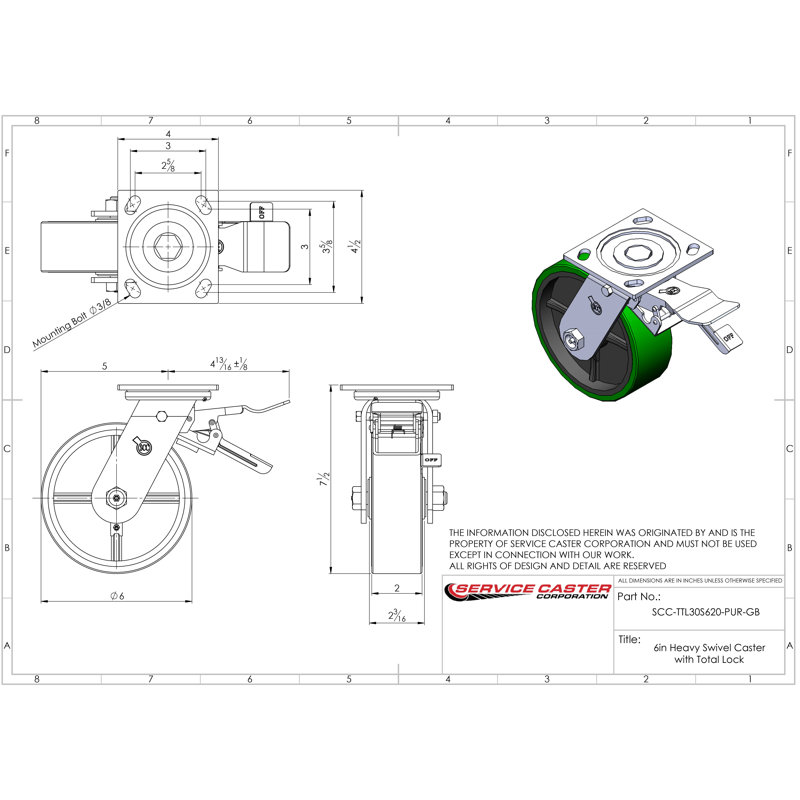

6 Inch Poly on Cast Iron Caster with Roller Bearing and Total Lock Brake

Features

• These Service Caster Series #30 Polyurethane on Cast Iron casters offer various wheel sizes and mounting heights: 3-1/4” Wheel: 4-1/4” mounting height; 4” wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8” wheel: 9-1/2” mounting height.
• Weight Capacity: 3.25": 600 lbs Capacity/Caster, 4": 700 lbs Capacity/Caster, 5": 1000 lbs Capacity/Caster, 6": 1200 lbs. Capacity/Caster, and 8": 1250 lbs Capacity/Caster
• All wheel sizes have a 3/4" axle bore and a 3-1/2" hub length. When the spanner bushing is removed, all wheel sizes can be used on a 1" axle. Please keep in mind, the hub length is the widest point of the wheel, so it is important to ensure you can accommodate this width before purchasing.
• Brake options include a top lock brake (TLB), a total lock brake (TTL), or a side lock brake (SLB). The TLB places a positive locking force against the wheel tread, locking the wheel only. The SLB places a positive locking force against the wheel hub, locking the wheel only. The TTL also places a positive locking force against the wheel tread, but the TTL simultaneously locks the wheel and the swivel for a complete stationary position.
