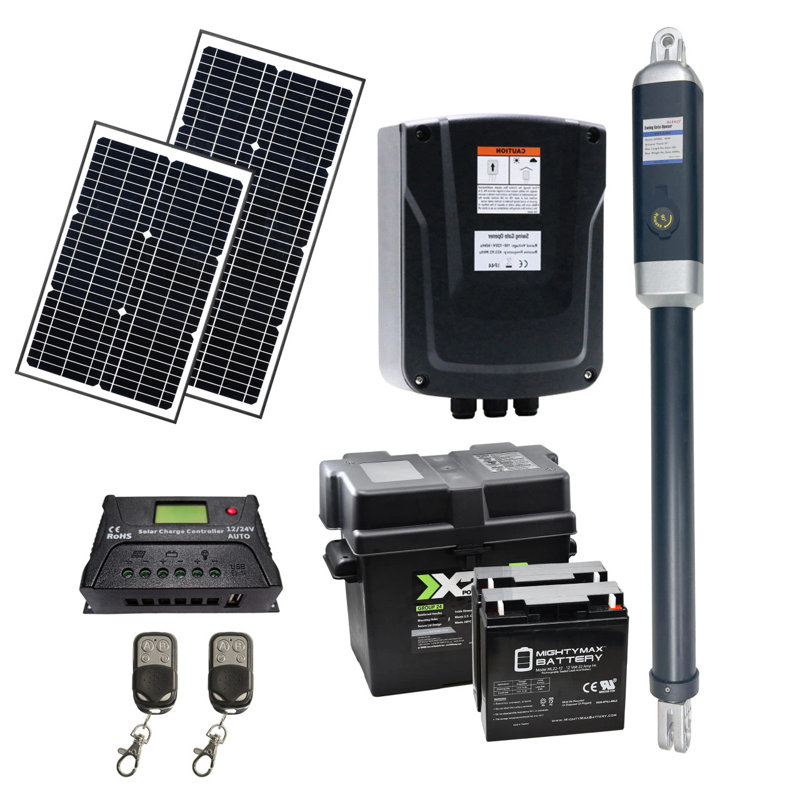

Single Swing Gate Operator - GG850/AS850 AC/DC - Solar Kit 50W

Name: Single Swing Gate Operator - GG850/AS850 AC/DC - Solar Kit 50W
Brand: ALEKO
SKU: ALEK1644
Price: 1426.81 CAD
Availability: InStock

ByALEKO

$1,426.81

Pay as little as CAD $60 per month with the Wayfair Credit Card over 24 months.

Apply Now

At a Glance

No Dig Installation

Weather Resistant

UV Resistant

Surface Mount Installation

Single Swing Gate Operator - GG850/AS850 AC/DC - Solar Kit 50W

ByALEKO

$1,426.81

Pay as little as CAD $60 per month with the Wayfair Credit Card over 24 months.

Apply Now

At a Glance

No Dig Installation

Weather Resistant

UV Resistant

Surface Mount Installation

About This Product

Gate Opener for Single Swing Gates Up to 850lbs Solar Kit basic kit is designed for residential application. Stay warm and dry in your vehicle. This single swing gates opener will handle dual swinging gates up to 13' in length and weighing up to 850lbs. It has a powerful 24V DC motor, which provides an exceptional starting torque and features a soft start/stop operation. This promotes longer gate and operator life, as well as a dependable performance. Solar panel mounting hardware is not included.

Features

Access your gates through remote control or keypad
Smooth and soft start and stop function
Emergency Release key in case of power failure
Dual/Single gate running mode
Optional master and slave gate running
Wire Sold Separately
The force of the motor can be programmed
Optional photocell protection (not included)
Built in adjustable auto-close (programmable from 0-99 sec)
Digital display indicates the running situation and setting menu
Reliable electromagnetic limit switches improve adjustment of the 'open' and 'close' position
Motor: 24 V DC, 100W actuator
5A current Power supply: 110V/60Hz (or 220V/50Hz)

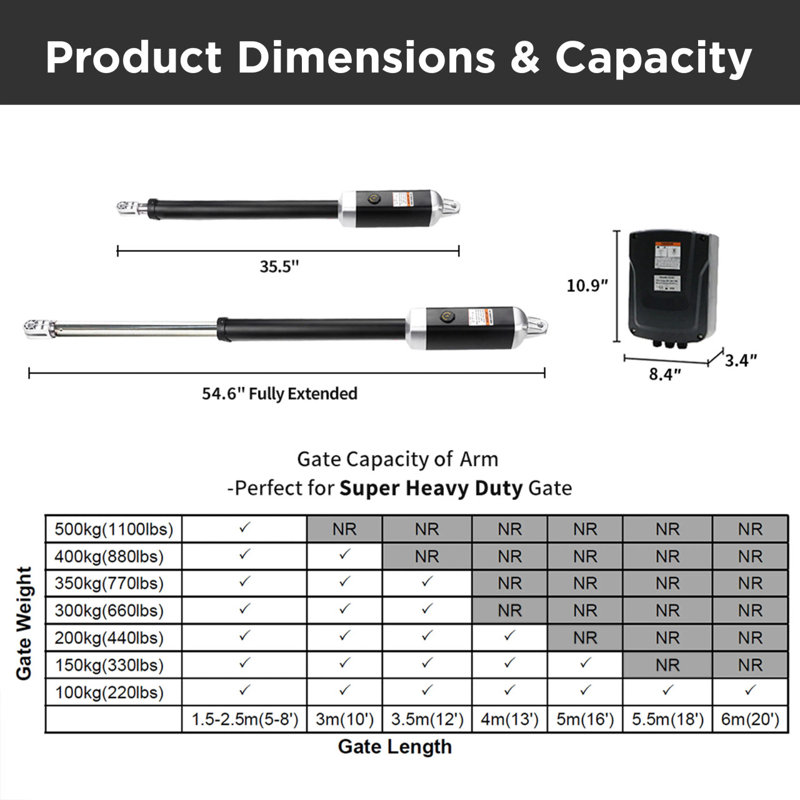

Actuator speed: 1.6 cm/sec (0.63 inch/sec)
Actuator travel: 19 inches
Max Weight gate: 300 kg (850 lb)
Max Width gate: 3.65 m (12 ft)

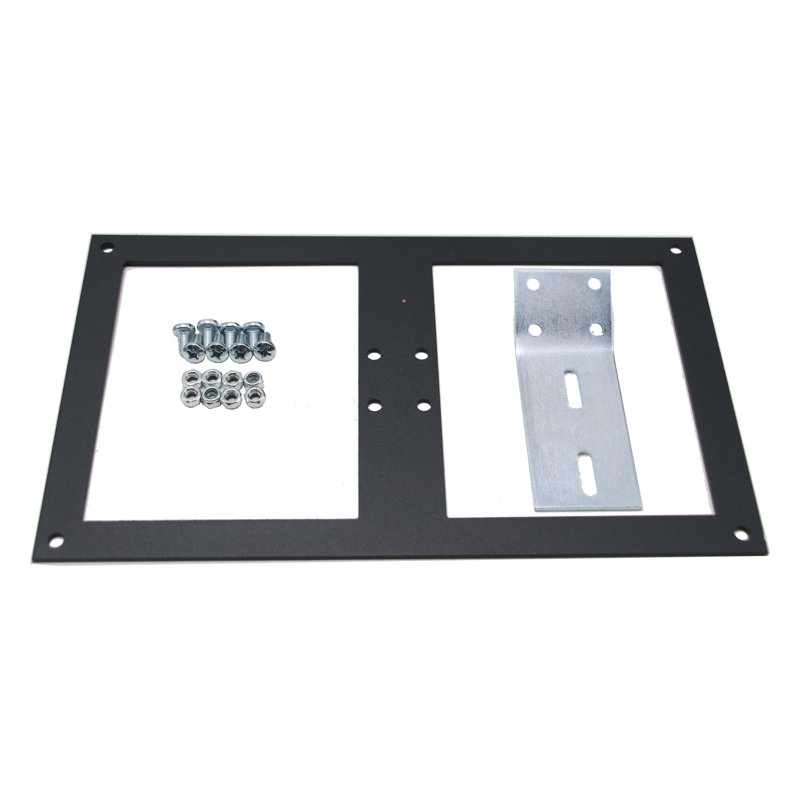

H Bracket Dimensions for 20W Solar Panel (LxW): 12.9 x 7.8 inches
H Bracket Dimensions for 30W Solar Panel (LxW): 15.35 x 9.6 inches
L Bracket Dimensions (LxW): 5.3 x 1.9 inches
Open/closing running time: programmable (from 0 to 99 sec)
Auto-closing duration: programmable (from 0 to 99 sec)
Ambient temperature: -22C- +55C Protection class: IP44

Details

Product Type: Gate
Material: Metal
Paintable / Stainable: No
Gate Included: Yes
Weather Resistant: Yes
Water Resistant: Yes
Rust Resistant: Yes
UV Resistant: Yes
Stain Resistant: Yes
Country of Origin: China
Country of Origin - Additional Details: Made in China
Caps Included: No
Colour: Black/Silver
Gate Hardware Included: Yes
Posts Required: No
Durability: Water Resistant, UV Resistant, Stain Resistant, Weather Resistant, Rust Resistant
