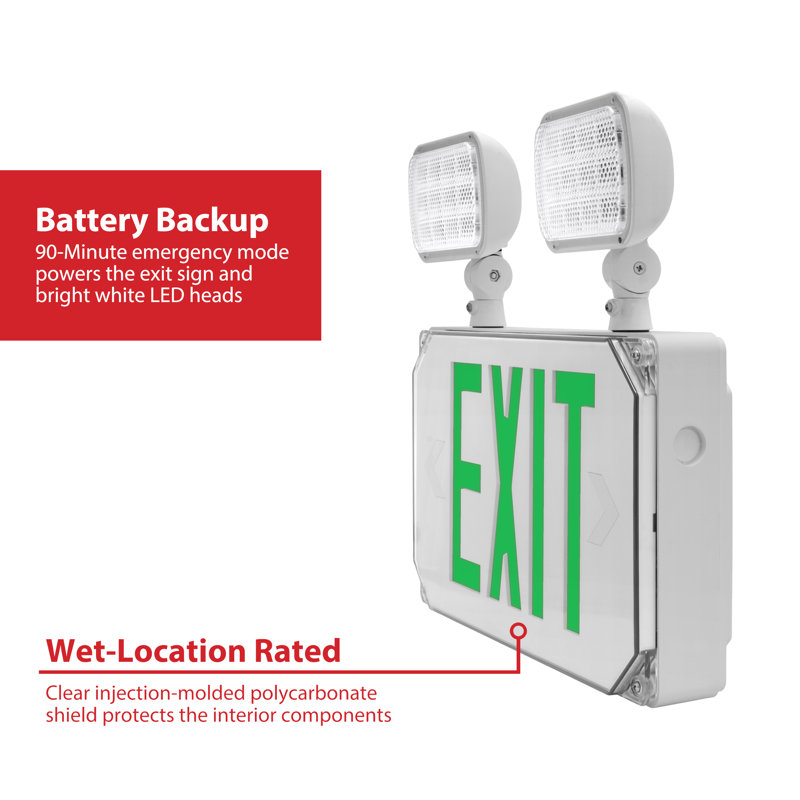

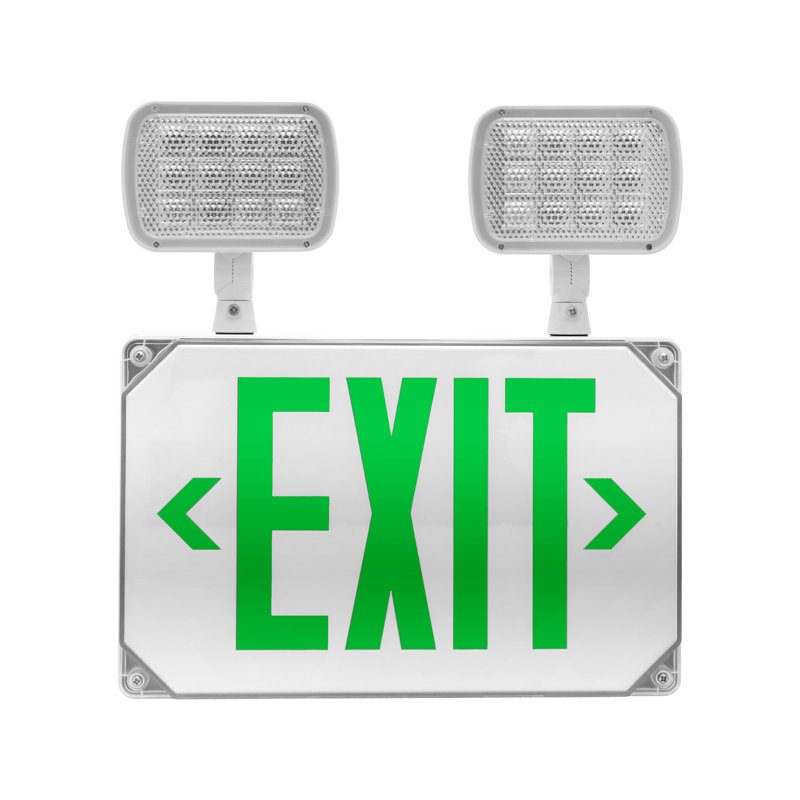

The Nicor ecl5 series outdoor led exit sign combo with emergency lighting is code compliant for outdoor, wet location, and battery backup requirements. It features a durable corrosion-resistant polycarbonate shield to ensure a wet-location rating. It’s constructed using a new injection-moulded abs thermoplastic housing that’s flammability (ul-94-v-0) rated. The ecl5 includes a nickel metal hydride battery to provide 90-minute emergency run-time that kicks on if the power goes out. The ecl5 uses less than 3.8 watts of electricity and can be installed in both 120-volt and 277-volt applications. The low-profile design keeps the fixture lightweight and easy to install. Two independent led light heads (6400k) produce 190 lumens and are adjustable to 120° vertical tilt and 360° rotation. It can be surface mounted using the included mounting bracket with quick-connect. The ecl5 includes an additional faceplate for the backside (if required) and removable chevron arrows. The ecl5 is wet-location rated and protected by Nicor’s 1-year limited warranty.
