Product Overview

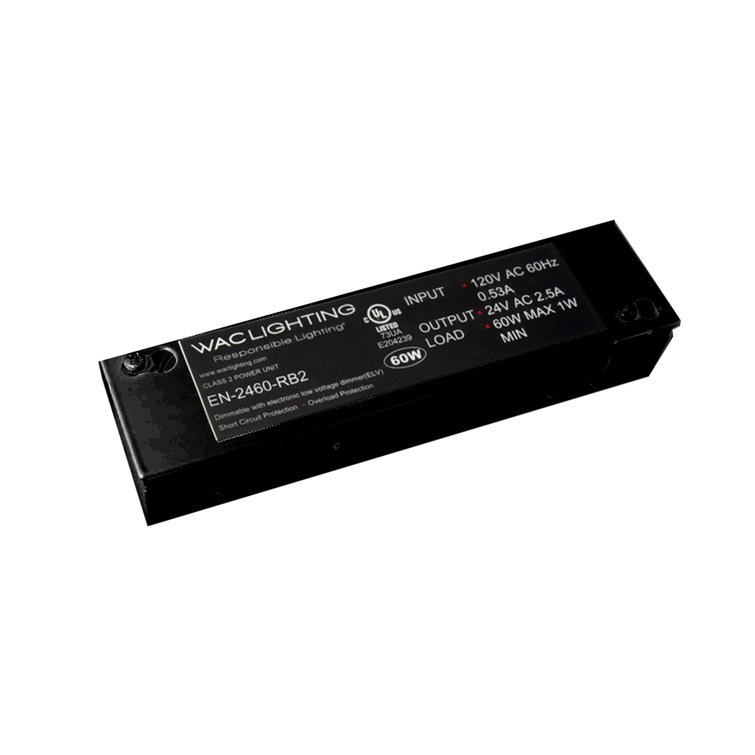

This class 2, UL & cUL listed enclosed electronic transformer is the perfect solution for wiring multiple low voltage fixtures. Class 2 transformers are intrinsically safer transformers because they are compartmentalized to allow no greater than 5 amps of current to be drawn on each compartment. Enclosure cover is easy to remove. The transformer has knockouts on three sides with clips for line voltage wiring. Secondary wiring for class 2 transformers does not require conduit sheathed cable or clamp wiring techniques. This transformer has a low minimum load requirement of 1W to allow the use of LED products. Maybe dimmed using an electronic low voltage dimmer.
Features
- Minimizes wiring back to the transformer
- No voltage drop, power supplied using a variable current
- If one fixture goes out the rest remain on
- Input: 120 VAC, 50/60Hz
- The non-metallic sheathed cable may be used for secondary wiring in walls and ceilings
- Drop down to a smaller gauge wire if space in fixture does not permit secure connection directly with the non-metallic sheathed cable
