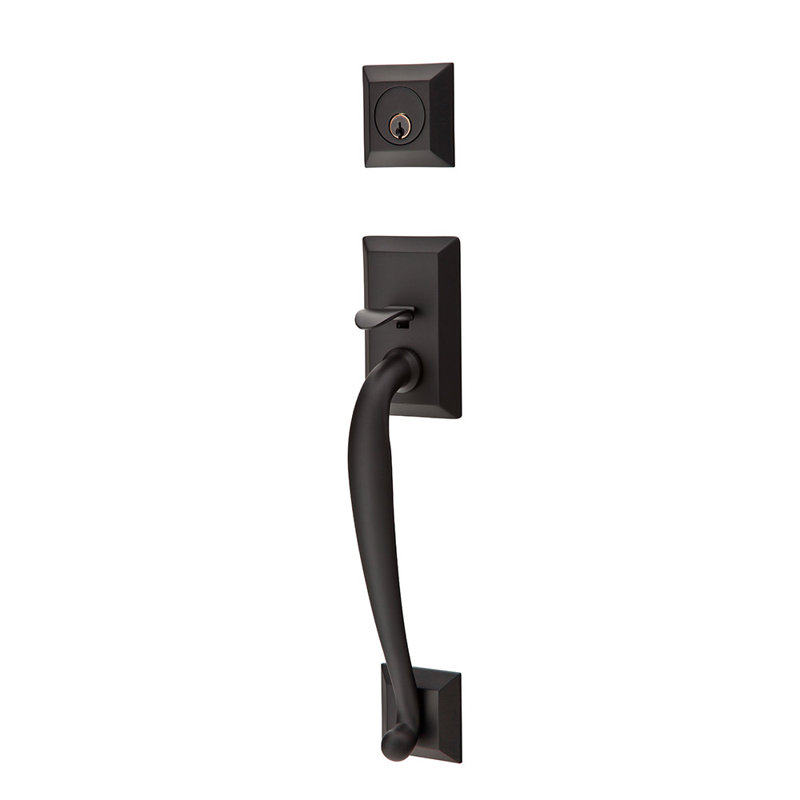

The Franklin is a transitional entry set with a comfortable grip and a classical beveled look. It utilizes the Quincy deadbolt and pairs well with our Quincy rosette, or the longer Quincy Sideplates. It's available in many finishes and can be upgraded to one of several keypad options.
Features
Sold as complete set. Includes: One Thumbpress Assembly w/ Grip and Backplate; One Deadbolt; One Knob assembly w/ Backplate; Two 55-degree Latches; Strike; Keys; Installation Hardware; Door Prep Template
Tubular Thumbpress Entrysets will have a deadbolt, thumbpress and grip on the exterior side of the set and the interior side will be a deadbolt and a leverset. This Model is a Double Cylinder and will feature a key way on the exterior as well as a key way on the interior of the deadbolt portion.
Standard latch is for 2-3/8" backset. Set requires 2-1/8" bore standard door prep. Door prep template provided.
No handing designation required.
Base Material: Brass
Premium Quality - Quality that you can see and feel is built into each and every Emtek product. It’s about form and function working in beautiful harmony. Award-winning products, assembled to order in Los Angeles, CA.
Limited lifetime warranty for the original owner.
Other Dimensions
Overall Dimensions
17.88'' H X 3.31'' W X 2.75'' D
Backset
2.375
Compatible Door Thickness
1.625 - 1.875
Edge Bore Diameter
1''
Bore Hole Diameter
2.13''
Standard Door Preparation
Yes
Overall Product Weight
9.1 lb.
Details
Pieces Included
Complete Entry Set
Function
Keyed
Material
Brass
Handleset Mount Style
One Piece
Lock Type
Tubular
Number of Lock Points
1
Number of Pins
5
Keyway Type
C
Latch Included
Yes
Handle Style
Lever
Series
Tubular Entry Set Collection
Country of Origin
China
Number of Deadbolt Cylinders
Double Cylinder
Levers Included
Yes
Knob / Lever Included
No
Power Source
No Power Source Required / Manual
Number of Knobs
1
Smart Connection Compatibility
Not App Enabled
Strike Style
Full lip, Deadbolt
Number of Keys Included
2
Assembly
Installation Hardware Included
Yes
Warranty
Commercial Warranty
No
Product Warranty
Yes
Warranty Length
Lifetime
Full or Limited Warranty
Limited
Warranty Details 2
Mechanical warranty: Limited lifetime mechanical warranty. Finish warranty: Polished Brass-Lifetime and Polished Nickel-Lifetime finishes carry a Lifetime limited finish warranty. No finish warranty on Deep Burgundy, Flat Black Patina, Medium Bronze Patina, Polished White Bronze, Rust, Silver Patina, Tumbled White Bronze, and Unlacquered Brass finishes. All other finishes carry a five-year finish warranty.
Warranty Details
Limited lifetime warranty for the original owner.
Warranty
Warranty Included, Limited Warranty
