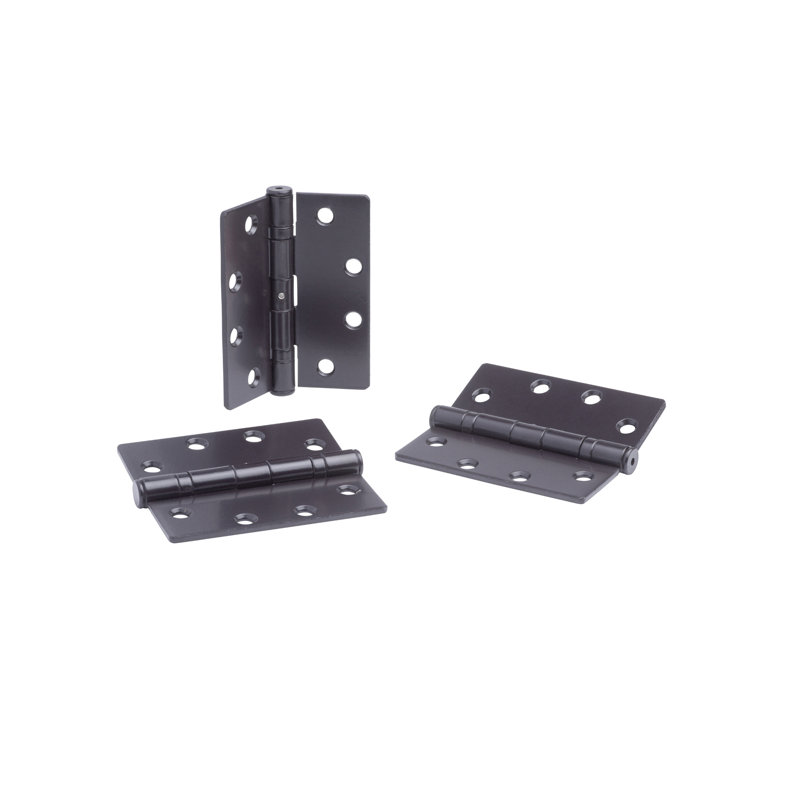

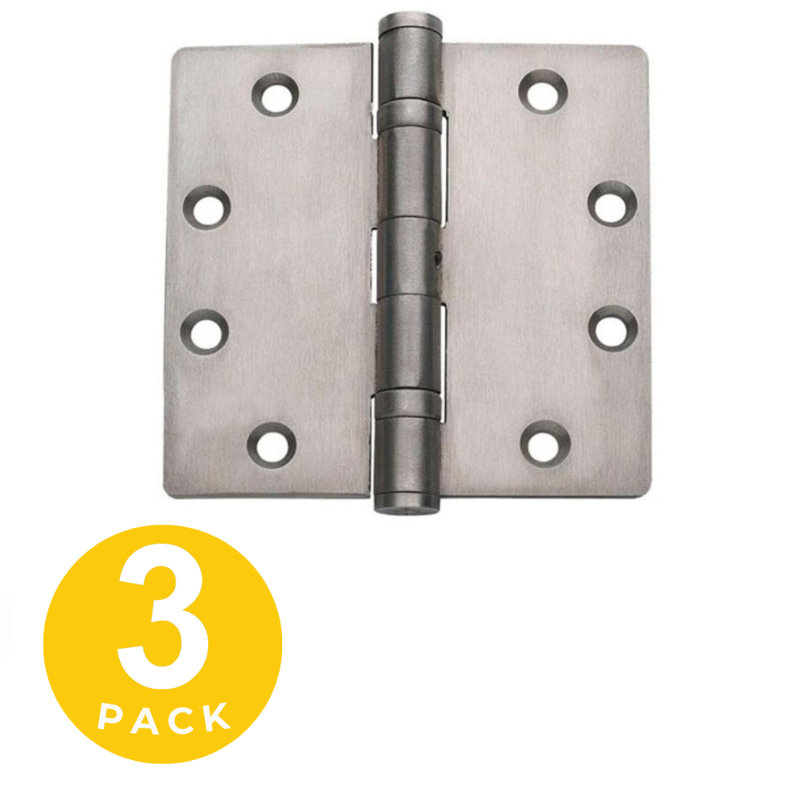

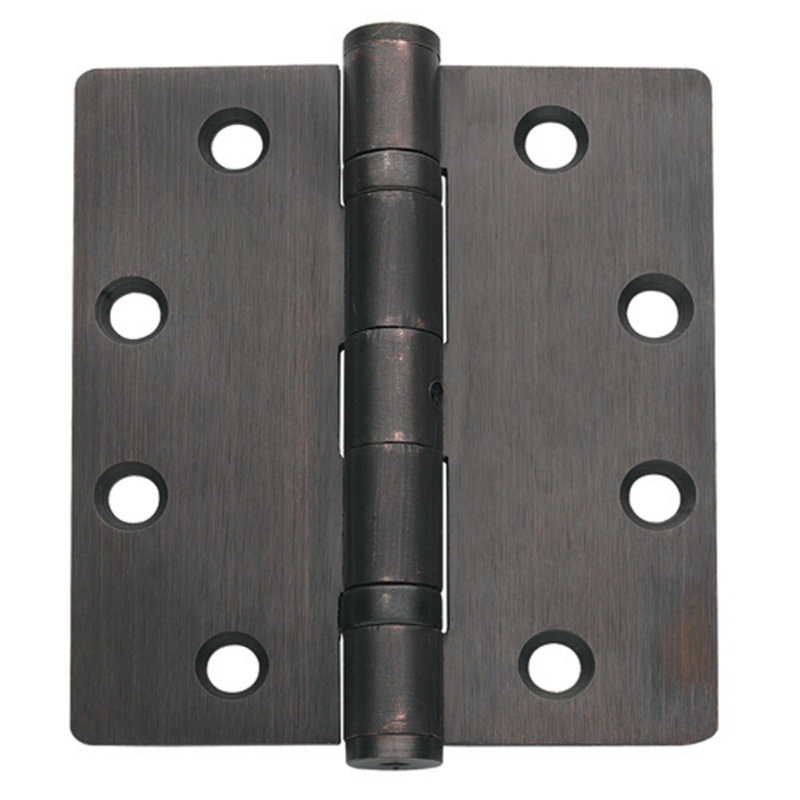

This model of Global Door Controls is considered as a ball bearing full mortise commercial door hinge. It's highly recommended for use on aluminum frame storefront doors. Moreover, it's advised for medium to heavy weight doors. This type sized 4.5 x 4 in. comes with 5/32 in. radius in its corner, bundled with a fixed pin. Item is available in two finishes: Stainless Steel and Oil Rubbed Bronze.
Features
Commercial door hinge for medium weight doors
Made from stainless steel for more durability and hardness
5/32 in. radius hinge with fixed pin - pack of 3
Commercial full mortise hinge
Intended for medium weight doors
Ball bearing steel fixed pin
Stainless Steel base material
Corner: 5/32 in. radius
Thickness: 0.134 in.
Installation: template screw hole locations
Easy installation

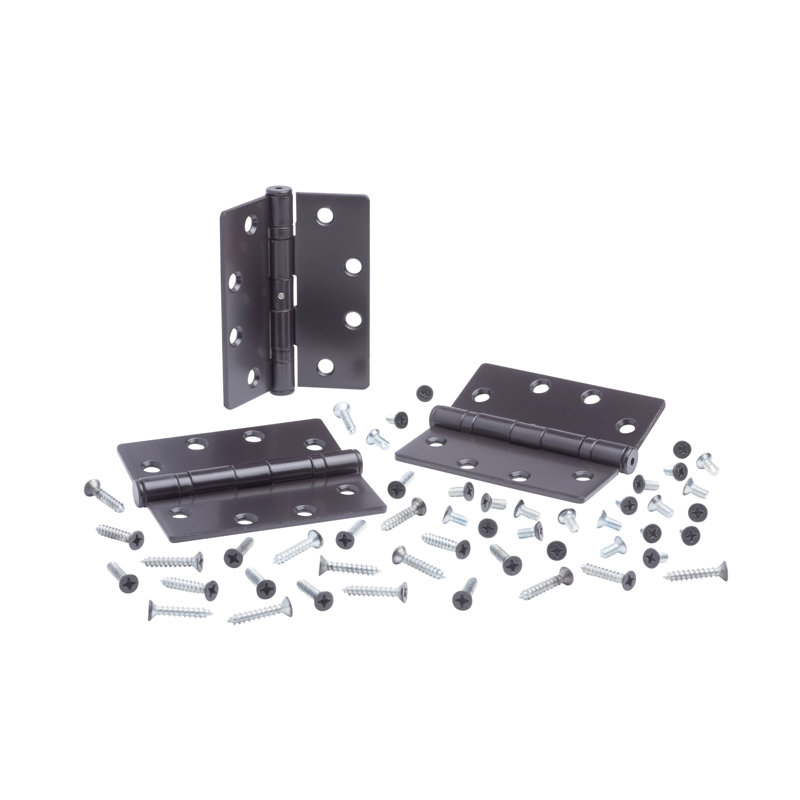

Packed with wood and machine screws (self tapping)
Conforms to ANSI A5112 for stainless steel bearing
Sold as a set of 3 hinges
1 Year mechanical and finish warranty
Other Dimensions
Overall
4.5'' H X 4.5'' W X 0.75'' D
Overall Product Weight
2.64 lb.
Minimum Compatible Door Thickness
0.13''
Details
Product Type
Butt Bearing
Material
Stainless Steel
Hinge Pin Type
Non-Removable pin
Hinge Corners
0.25
Country of Origin
China
Pieces Included
3 Hinges
Certifications
ANSI/BHMA A156 Certified
Yes
Assembly
Installation Required
Yes
Number of Mounting Holes
8
Warranty
Product Warranty
Yes
Warranty Length
Lifetime
Commercial Warranty
Yes
