Black Rustic Triple Track Bypass Three Door Hardware Kit For Door Thickness 1 1/4in to 1 3/8in Use

Features

• MINIMAL GAPS. Triple Bypass would give you an immediate thought of "BIG GAP" bypass system, but our upgraded triple bypass system now has minimal spacing between each doors. For example when a standard door thickness (1-3/8in) is used, the gaps between each door will range from 1 to 1-1/2in. The gap between the front face of the outer door and the wall is now about 6-7/8in compared to our previous system which was 11in. Now the doors are close to one another, this brings you optimal privacy without the unpleasant gaps. Bolts provided in kit will fit door thickness 1-1/4in ~ 1-3/8in. Can fit thinner doors, but will need to purchase shorter bolts which can be purchased at the local hardware store.
• EASY TO INSTALL. Our bracket has been upgraded therefore finding bracket hole placements and alligning of tracks are no longer needed. The steps for installation has been reduced due to the brackets being mostly pre-assembled. You will also receive a step by step installation manual with U.S. standard measurements, simple instructions and informative diagrams.
• LARGER ACCESSIBLE OPENING. Compared to our double track bypass and our previous triple bypass, this system offers a bigger available opening. For example if our triple bypass is applied in a setup with no available wall space, this hardware provides 2/3 of the opening size once the doors are stacked and pushed to one side.
• VARIOUS TRACK LENGTHS AND FULL SIZES. While other brands only offer few selected track lengths, we offer anywhere from 4ft up to 20ft. The spacing between each pre-drilled holes on the track is 16in apart to match your studs. Our tracks 7.5ft and shorter all come as one full piece. 8ft and longer will come as two or more pieces joined with a junction plate. Thus the middle section where two tracks join may not be 16in apart. A header board will be required if the holes on the track do not line up with your studs.
• If you have a door trim, please put a header board that is as thick as the trim and then attach the rail to the header board.
• Minimal gaps. Triple Bypass would give you an immediate thought of a "BIG GAP" bypass system, but our upgraded triple bypass system now has minimal spacing between each door. For example, when a standard door thickness (1-3/8 in) is used, the gaps between each door will range from 1 to 1 1/2 in. The gap between the front face of the outer door and the wall is now about 8 inches compared to our previous system, which was 11 inches. Now that the doors are close to one another, this brings you optimal privacy.

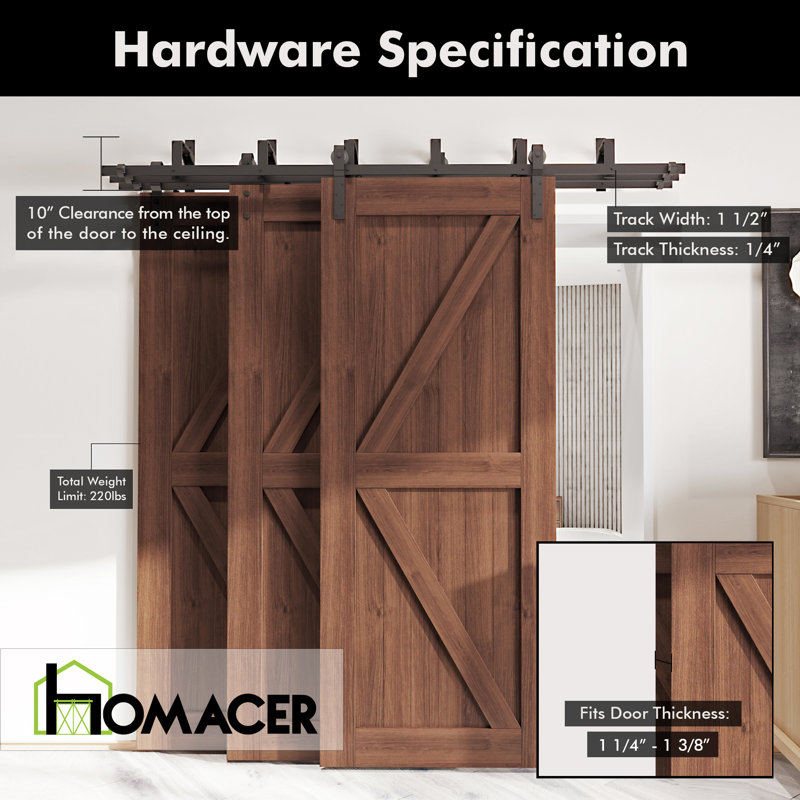

• You need to have at least 10" of space between the top of the door to the ceiling to accommodate the hardware.
• Premium black rustic carbon steel, heavy-duty, total door(s) weight up to 220 lbs. High-quality nylon wheels ensure minimal noise.
• The hardware package only has lag bolts for wooden walls/drywall.
• This kit only includes hardware, the door(s) are not included.

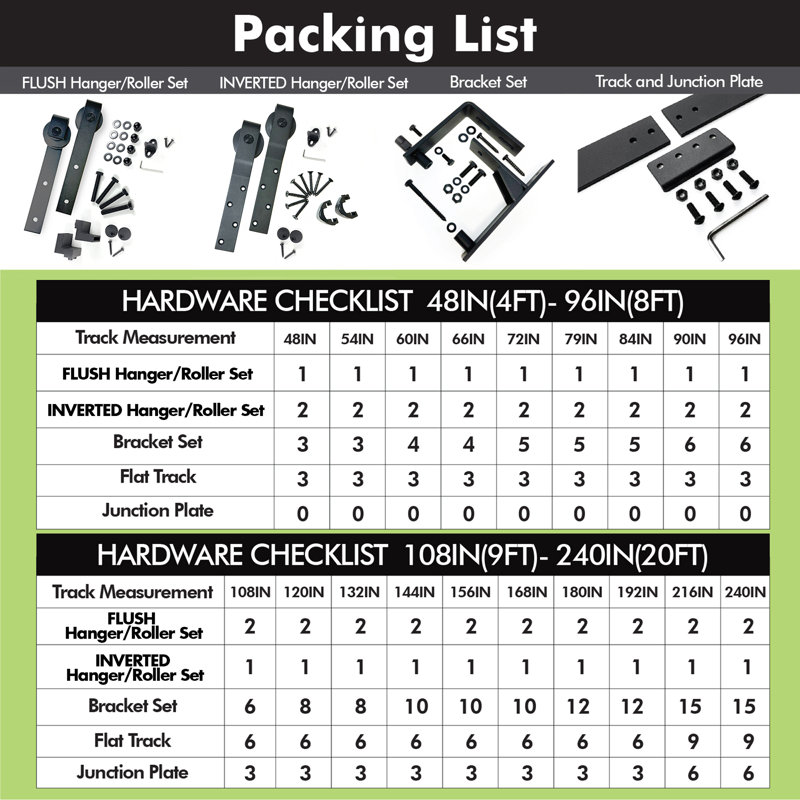

• Track 8ft and under is only one piece track. For the one piece bar, the spacing between two mounting holes is 16 inches. Track 9ft and above are connected by 2 or 3 tracks using a junction plate, so the spacing between the holes where the bars connect is not 16 inches, and a header board is needed.
