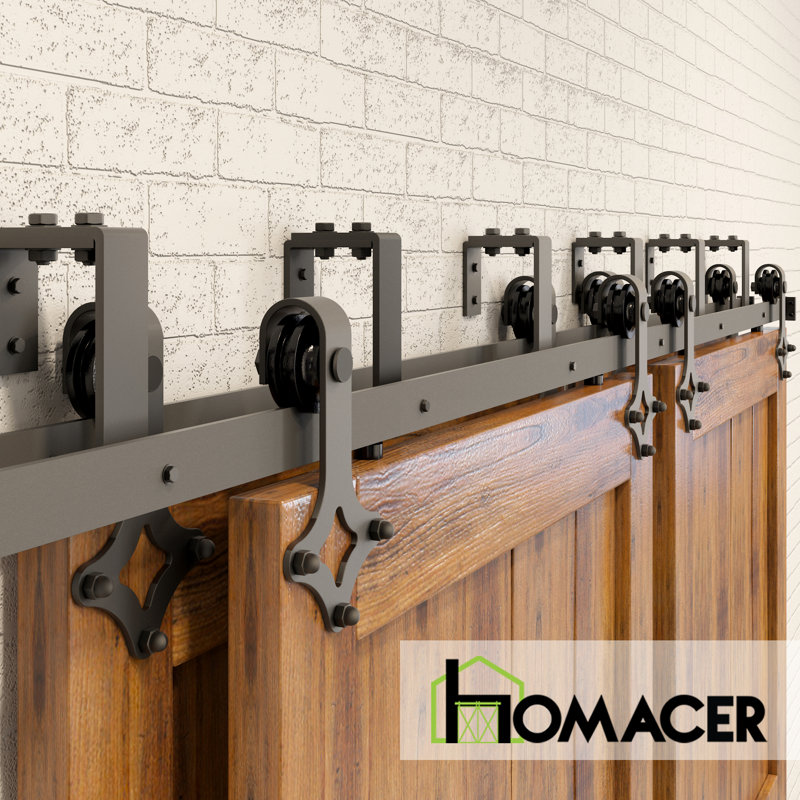

Double Bypass Barn Door Hardware Kit

Features

• Step-by-step instructions will be included with fractional measurements and concise word instructions with pictures.
• 8ft above is connected by two tracks using a junction plate, thus, the spacing between the middle 2 holes.
• Specific bolts are required for concrete walls. The hardware package only has lag bolts for wooden walls or drywall. Thinner or thicker doors require the correct length of the hex bolts. Thicker doors also require spacer extensions which will extend the track further from the wall to fit the thicker door. If there is a door trim a thick header board will be needed for the hardware to be attached. There needs to be a clearance between the top of the door to the ceiling for the single-track bypass hardware kit.
• The hardware package only has lag bolts for wooden walls/drywall.
• If you have a door trim, please put a header board that is as thick as the trim and then attach the rail to the header board.

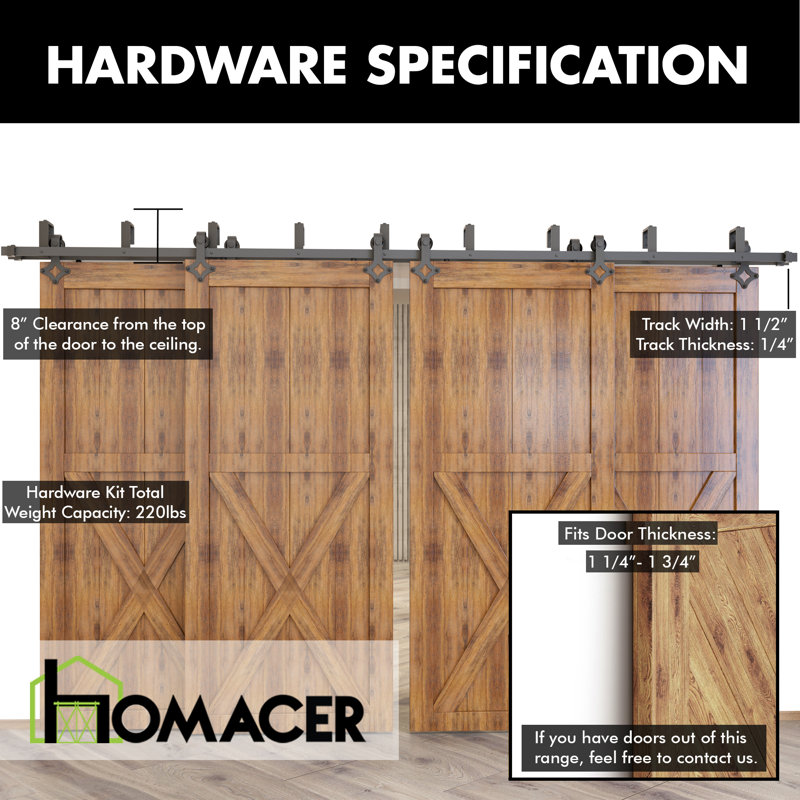

• You need to have at least 8" of space between the top of the door to the ceiling to accommodate the hardware.
• Two hangers are used to hold one door. For a double-door kit, there will be four hangers in the package. For a three door kit, there will be six hangers in the package. For a four door kit, there will be eight hangers in the package. If you have a door that is either too wide or too heavy, then you can purchase additional hangers for that door.
• The standard door thickness for our hardware is from 1 3/8" to 2".
