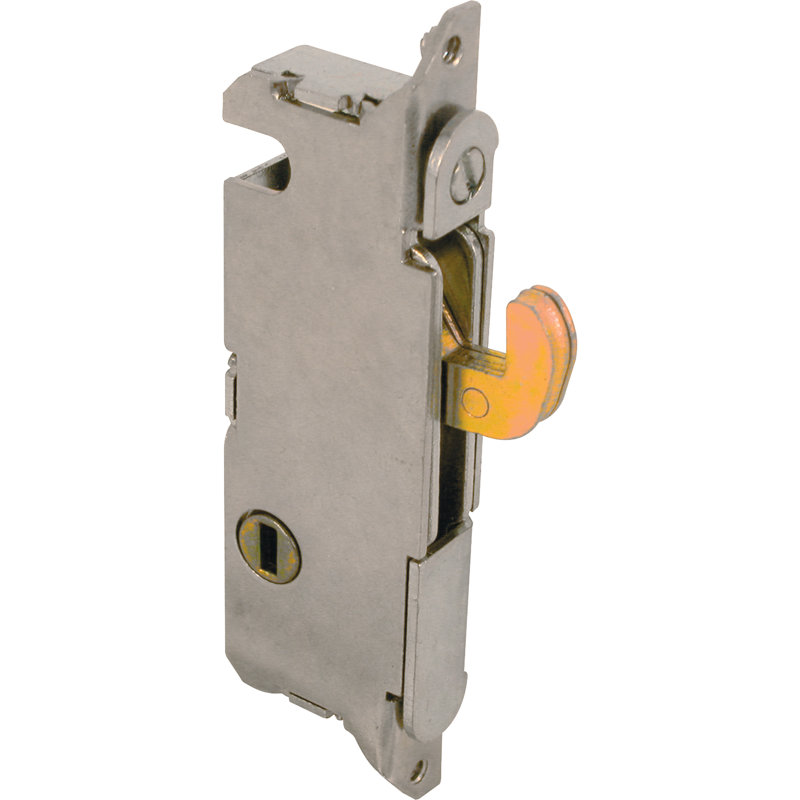

When your sliding door mortise lock is broken or old, don’t replace the door entirely, just get a new mortise lock! This E 2013 Mortise Lock has an adjustable, spring-loaded hook latch projection for surface-mounted sliding patio doors constructed of wood, aluminum and vinyl with handle sets with vertical keyway position when in the locked position. It also fits doors using W&F manufactured handles. The mounting hole centers of this lock measures 3-11/16 inch from centre to centre, and the rear housing corners are square. Selection Tip: To ensure the perfect match is selected prior to purchasing, the lock will need to be removed to compare the following 4 features (besides the width of housing): 1) The distance of the mounting holes measured from centre to centre, 2) The faceplate ends; rounded or square, 3) The position of the slotted keyway when in the locked position; at 45-degree angle or vertical, and 4) The shape of the housing corners at the rear; square or slanted. Installation Tip: Watch the manufacturer’s How-To Video that is linked to this item page.
