Showing results for "adjustable drawer pulls"

This full-extension ball-bearing side mounts drawer slide with a 1" over-travel is ideal for use in office furniture, cabinets, closets, kitchen, and medical furniture. Each slide features steel ball-bearing action for a smooth sliding experience and a lever-disconnect positive stop design for easy removal of the drawer from the cabinet.

• : Full Extension; Over Travel
• Mounting / Installation Type: Side Mount

. Anonymous. . 2023-03-16 06:42:13

This full-extension ball-bearing side mount drawer slide with a 1" over-travel is ideal for use in office furniture, cabinets, closets, kitchen, and medical furniture. Each slide features steel ball-bearing action for a smooth sliding experience and a lever-disconnect positive stop design for easy removal of the drawer from the cabinet.

• : Full Extension; Over Travel
• Overall Height - Top to Bottom: 0.5''
• Mounting / Installation Type: Side Mount

Super smooth. Jeff. Revelstoke, BC. 2020-10-16 12:48:40

These Side Mount Drawer Slides are ideal for use in office furniture, cabinets, closets, kitchen, and medical furniture. Enjoy the benefits of the soft-close mechanism when you need to have the drawer closed without having to slam it shut. Each slide features steel ball-bearing action for a smooth sliding experience and a lever-disconnect positive stop design for easy removal of the drawer from the cabinet. These slides are made of high-grade cold-rolled steel and also meet or exceed all BIFMA, BHMA, and ANSI standards for quality. Installation hardware for all slides comes with screws and installation instructions.

• : Full Extension
• Mounting / Installation Type: Side Mount
• Overall Product Weight: 2.5kg

Not as soft close (they are a bit “sticky” in the operation) as some from another brand that I’ve used but still good qualityprice ratio.. Elizabeth. Anonymous. 2024-05-20 13:27:55

Repair old and broken drawer slides with the Ameriwood Home 12” 300mm Bottom Mount Drawer Slide in a durable black metal. This roller slide is perfect for bedroom drawers, office furniture or cabinet drawers. The slide allows drawers to extend ¾ of the way open to ensure you can reach the stuff in the back of the drawer. The slide also includes a stay-closed angled position for added safety precautions when the drawer is not being pulled open. The slides come with all necessary hardware to complete your drawer DIY drawer project.

• Great for replacing used or damaged drawer slides on bedroom and office furniture
• Premium 12-inch (300mm) bottom mounting drawer slides in black metal
• 6-Pack (6-drawer rails and 6 tracks); includes installation screws
• Drawer Slide: 11.81”L x .79”H x .67”D Cabinet Slide: 11.81”L x 1.42”H
• Easy install and rated for normal-duty use

Looks good so far, will see well they hold up over time.. John. Coquitlam, BC. 2025-02-01 11:00:59

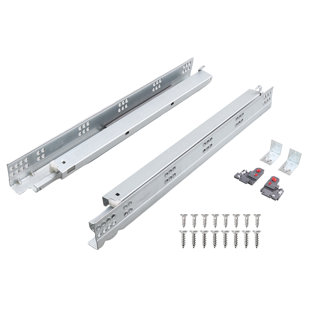

The GlideRite undermount drawer slide is a concealed mounting option that offers a clean, sleek aesthetic to your cabinetry while maintaining easy access. With a built-in, soft closing mechanism your drawers are guaranteed to shut effortlessly, never slamming helping to maintain the long-lasting quality of your cabinets. These are a full extension drawer slide with an 80 lb. weight capacity. This kit also includes 3D, 6-way adjustable front locking clips, making it easy to regulate the position of your drawers without the use of tools. Rear mounting brackets are also included in this kit. Each slide has been tested according to BIFMA testing standards. All our drawer slides include mounting screws.

• Length: 21 in.
• Full extension undermount slide with built-in soft closed mechanism can be used for face frame and/or frameless cabinets.
• 80 lbs. static weight capacity
• Includes 3D, 6-way adjustment front locking clips
• Includes rear-mounting brackets

Monorail drawer slide that can be cut to size to suit most drawers, up to 22 inches in length. Operates smoothly via rollers mounted to the cabinet and one roller on the drawer running within a guided rail underneath. Typically this type is used as a replacement for existing monorail setups or as a simple economical solution. Note this slide is for light duty only - the track system can sustain load up to 25 lbs. Mounting hardware and instructions are included for DIY-friendly installation.

• Overall: 0.96'' H x 23.54'' W x 1.63'' D
• Mounting / Installation Type: Bottom Mount
• Overall Product Weight: 0.7lb.

Fulterer manufactures drawer slides for many different applications in the cabinet, residential furniture, store fixture, institutional casework, food service equipment, office furniture and automotive industries. Each area of application has its own set of standards for performance testing. Our in-house testing as well as independent testing laboratories guarantees that where required, our products conform to such standards as ANSI/BIFMA X5.5-2008, ANSI/KCMA A161.1-2006 A, ANSI-BHMA A 156.9-2010, NSF/ANSI 2 Food Equipment, SEFA-8-2007 and WI Woodworking Institute. Fulterer’s Industrial duty drawer slides are used in the following applications: RV’s, Fire Trucks, Ambulances, Rescue Vehicles, Cabinets, Storage Drawers, Toolbox’s, File Cabinets, Utility Trucks and Trailers. Part Number: FL.FR5400.L.18 Size: 3" H x 3/4" W x 18" D Part Number: FL.FR5400.L.20 Size: 3" H x 3/4" W x 20" D Part Number: FL.FR5400.L.22 Size: 3" H x 3/4" W x 22" D Part Number: FL.FR5400.L.24 Size: 3" H x 3/4" W x 24" D Part Number: FL.FR5400.L.28 Size: 3" H x 3/4" W x 28" D Part Number: FL.FR5400.L.30 Size: 3" H x 3/4" W x 30" D Part Number: FL.FR5400.L.32 Size: 3" H x 3/4" W x 32" D Part Number: FL.FR5400.L.34 Size: 3" H x 3/4" W x 34" D Part Number: FL.FR5400.L.36 Size: 3" H x 3/4" W x 36" D Part Number: FL.FR5400.L.40 Size: 3" H x 3/4" W x 40" D Part Number: FL.FR5400.L.48 Size: 3" H x 3/4" W x 48" D Part Number: FL.FR5400.L.60 Size: 3" H x 3/4" W x 60" D

• Note: Lock Lever protrudes an additional 1-3/8" (35mm) longer than the length of the slide
• 3/4 in. side clearance per side
• True inch length full extension ROHS compliant with the latest EU regulations
• Precision hardened stainless steel ball bearings paired with Zinc plated cold rolled steel

Heavy Duty: The drawer slide is constructed with thick cold rolled steel, and the surface is electroplated with high density blue zinc, which can effectively prevent the corrosion and prolong the service life of the product.

• Featuring Lock Design: Lock is available to prevent from sliding when full open and close. Easy control and secure fixation.
• Large Load Capacity: Our drawer slides can hold up to 264 lbs load to suit different needs.
• Steel ball-bearing: Steel ball-bearing design, offer less noise when open or close drawers, smooth and accurate slide.
• Full Extension: 3-section full extension, allows for the entire drawer to be accessed.
• Wide Application: It is perfect for room furniture, industrial drawers, modified car drawers, cabinets, office, factory machines, vehicle etc.

Hard to find. Just lucky to find these which are well made.. Anonymous. . 2023-06-05 16:00:58

These full-extension ball-bearing side mount drawer slides feature a soft close mechanism. Gone are the days of loud slammed drawers and rattling contents in the kitchen or bathroom when using our 1055 series drawer slide - this soft close model pulls the door closed for the last few inches of travel and keeps it shut, and also dampens the closing for super smooth and quiet operation. As a side mount type with gliding ball bearings and hold capacity of 100 lbs., this slide is highly preferred for its rugged durability, full extension for great drawer access, and smooth ride. These slides are non handed and feature a lever release. Mounting hardware and instructions included for DIY friendly installation. See our rear adjustable mounting bracket (model # P1056/BKT-2C) for face frame mount application, available separately.

• : Full Extension
• Overall: 1.88'' H x 1.18'' D
• Mounting / Installation Type: Side Mount

The Franklin Brass 18 inch drawer slide is constructed of steel for durability and function. The self-closing feature provides a tight and secure close. This drawer slide design is meant to be mounted flush to the bottom of the drawer for smooth sliding action. Includes 5 pairs of slides and installation hardware to make your project affordable and easy.

• Made from steel with a white finish for long-lasting durability
• Self-closing feature ensures drawers stay firmly closed
• Rated for loads up to 50 lbs.
• Detailed instructions and mounting hardware are included
• Covered by limited lifetime warranty

【Whisper-Quiet Full Extension Bottom-Mount Drawer Slides】Our drawer slides offer a 100lbs outstanding load capacity for a worry-free storage experience. Equipped with thickened galvanized steel, silent soft close, three-stage full extension, and automatic rebound closure, they provide the perfect combination of outstanding quality and ease of use.
