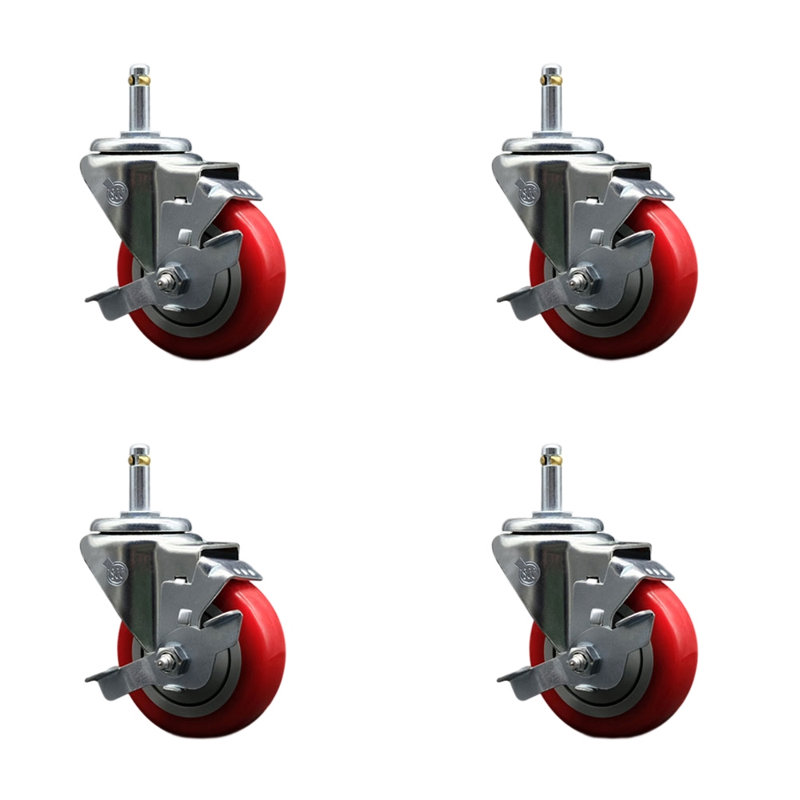

3.5 Inch Poly Swivel 7/16 Inch Grip Ring Stem Caster Set with Brake

Features

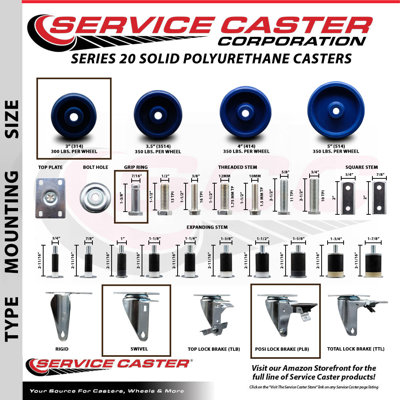

• These Service Caster Series #20 Polyurethane casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height; 6” wheel: 7-1/8” mounting height. Wheels are offered in five different colours – Grey, Blue, Black, Maroon, and Red.
• Weight Capacity: 3" and 3.5": 300 lbs Capacity/Caster; 4", 5", and 6": 350 lbs Capacity/Caster
• All casters feature a 7/16” diameter by 1-3/8” long grip ring stem. Service Caster recommends using a drill or hardware gauge, a 7/16” wrench, or our paper wrap method to ensure the grip ring stem diameter needed is 7/16”. Paper Wrap Method: take a small strip of paper and wrap it around the stem. Mark the paper with a pen where it overlaps, keep the wrap tight. Measure the strip from the start of the wrap to the mark. The ruler should measure 1-3/8". Don’t see the size you need? Call us!
• Brake options include a top lock brake, a total lock brake, or a posi lock brake. The top lock brake places a positive locking force against the wheel tread locking the wheel only. The total lock brake simultaneously locks the wheel and the swivel for a complete stationary position. The posi lock brake places a positive locking force against the wheel tread similar to the top lock brake, but the pedal is located above the wheel tread rather than on the side of the wheel.
