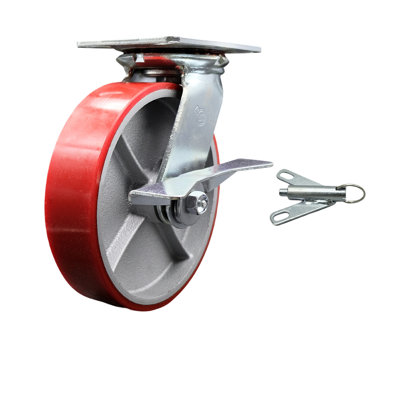

Service Caster 8 Inch Heavy Duty Poly on Cast Iron Swivel Caster with Roller Bearing SCC

Features

Wheel: 2-1/2" - metal tread - windsor antique
Weight capacity ranges from 700 lbs on the 4” caster, 1000 lbs on the 5”, 1200 lbs on the 6” and 1250 lbs. on the 8”.
Top plate measures at 4-1/2" x 6-1/4" with a bolt hole pattern of 2-7/16" x 4-15/16" to 3-3/8" x 5-1/4" and can either be bolted or welded on.
Brake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely, or a bolt-on swivel lock (BSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90 degree angle. Combining both brake types ensures complete immobility over both swivel and wheel on the caster.
Bolt size: 1/2" (hardware not included)

8 Inch Heavy Duty Poly on Cast Iron Swivel Caster with Roller Bearing SCC
