8 Inch Poly on Aluminum Swivel Caster Set 2 Swivel Locks 2 Brakes Service Caster

Features

• The top plate measures 4-1/2" x 6-1/4" with a bolt-hole pattern of 2-7/16" x 4-15/16" to 3-3/8" x 5-1/4" and can either be bolted or welded on.

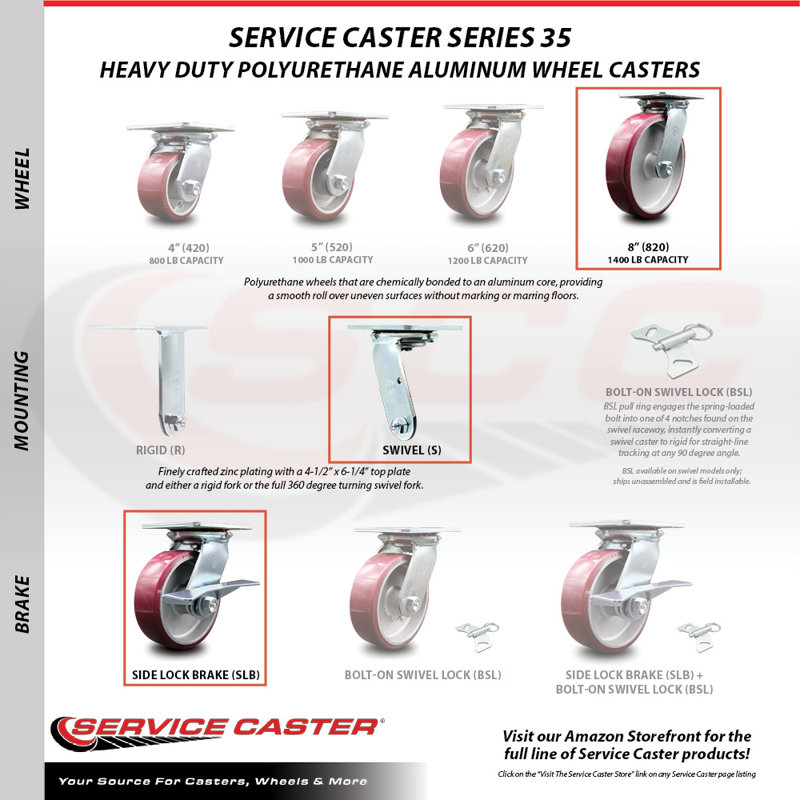

• Brake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely, or a bolt-on swivel lock (BSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90-degree angle. Combining both brake types ensures complete immobility over both the swivel and wheel on the caster.
• Bolt size: 1/2" (hardware not included)
