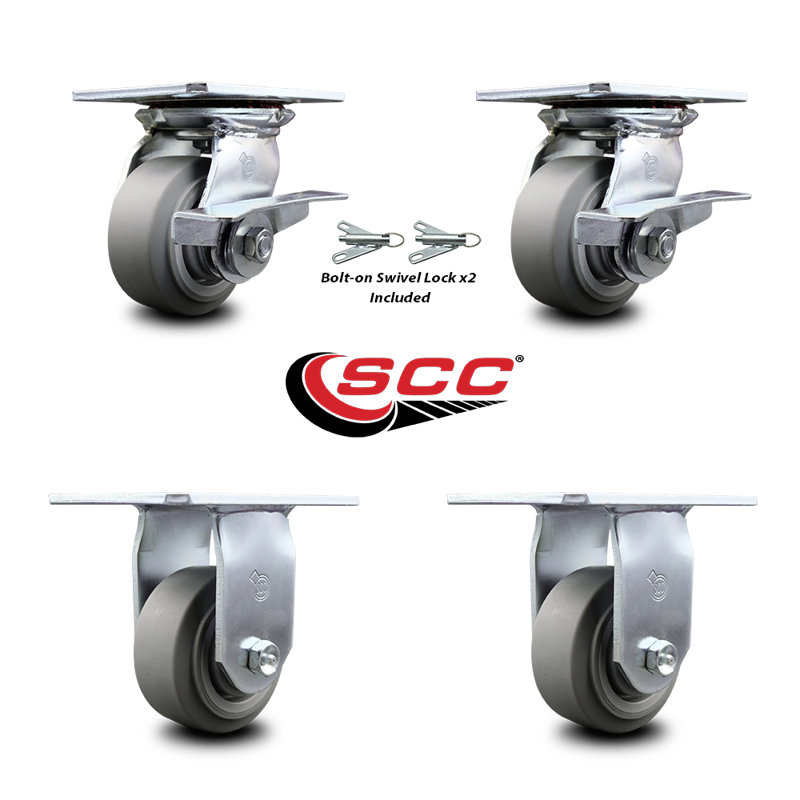

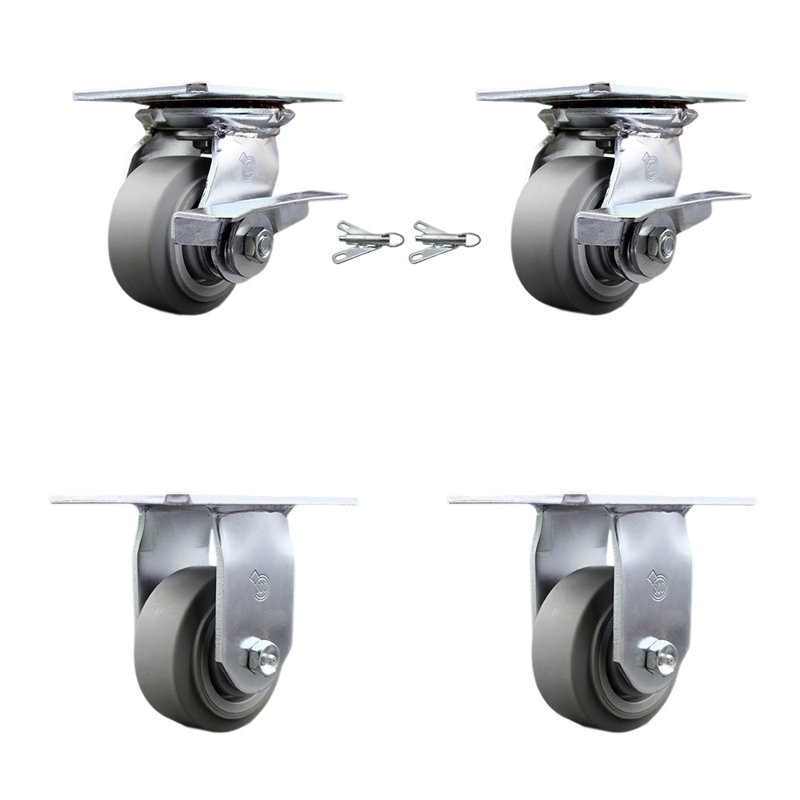

The listing is for a set of four service caster series #35 casters, two swivel casters with side lock brakes & bolt swivel locks and two rigid casters, with 4" diameter by 2" wide thermoplastic rubber flat tread wheels capable of supporting a total weight of 1,200 lbs. (300 lbs./caster).
Features
The top plate measures 4-1/2" x 6-1/4" with a bolt-hole pattern of 2-7/16" x 4-15/16" to 3-3/8" x 5-1/4" and can either be bolted or welded on.

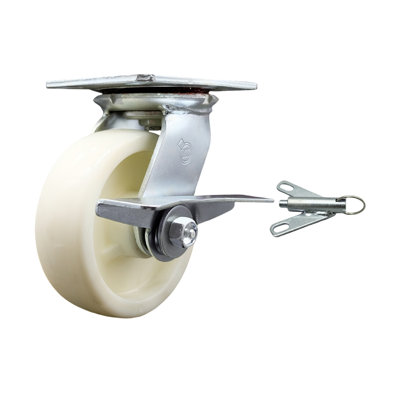

Brake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely, or a bolt-on swivel lock (BSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90-degree angle. Combining both brake types ensures complete immobility over both the swivel and wheel on the caster.
Bolt size: 1/2" (hardware not included)
Product Dimensions
Other Dimensions
Overall Dimensions
7.5'' H X 12'' W X 12'' D
Overall Product Weight
21.8 lb.
Details
Product Type
Casters
Country of Origin
United States
Assembly
Assembly Required
No
Mounting / Installation Required
Yes
Additional Parts Required (Not Included)
Yes
