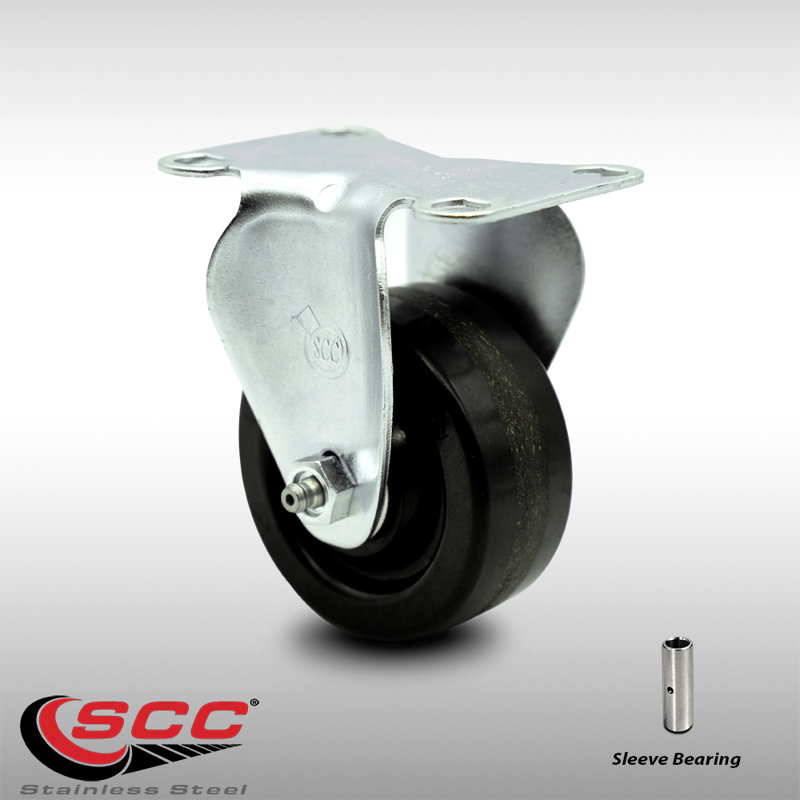

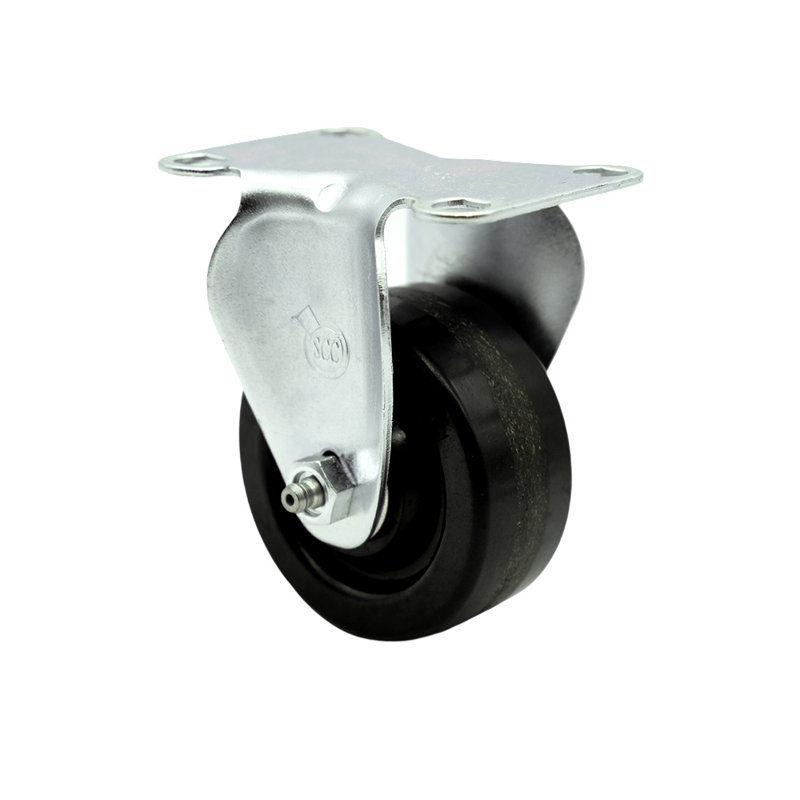

Listing is for one (1) Service Caster Series #20 stainless steel rigid caster with a 3" diameter by 1-1/4" wide phenolic wheel capable of supporting 300lbs./caster.
Features

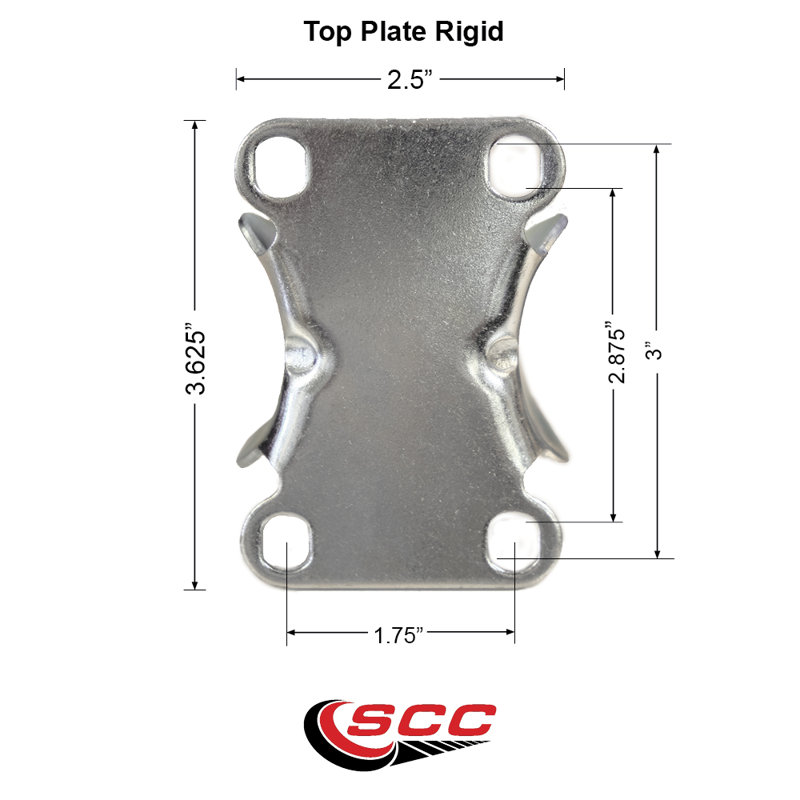

Top plate measures at 2-1/2" x 3-5/8" with a bolt hole pattern of 1-3/4" x 2-7/8" to 3" and can either be bolted or welded on.
Brake options include a top lock brake (TLB) or a total lock brake (TTL). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL) also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.
Bolt Size: 5/16" (hardware not included)
Product Dimensions
Other Dimensions
Overall Dimensions
5'' H X 5'' W X 5'' D
Overall Product Weight
0.85 lb.
Details
Product Type
Casters
Country of Origin
United States
Material
Phenolic
Assembly
Assembly Required
No
Mounting / Installation Required
Yes
Additional Parts Required (Not Included)
Yes
