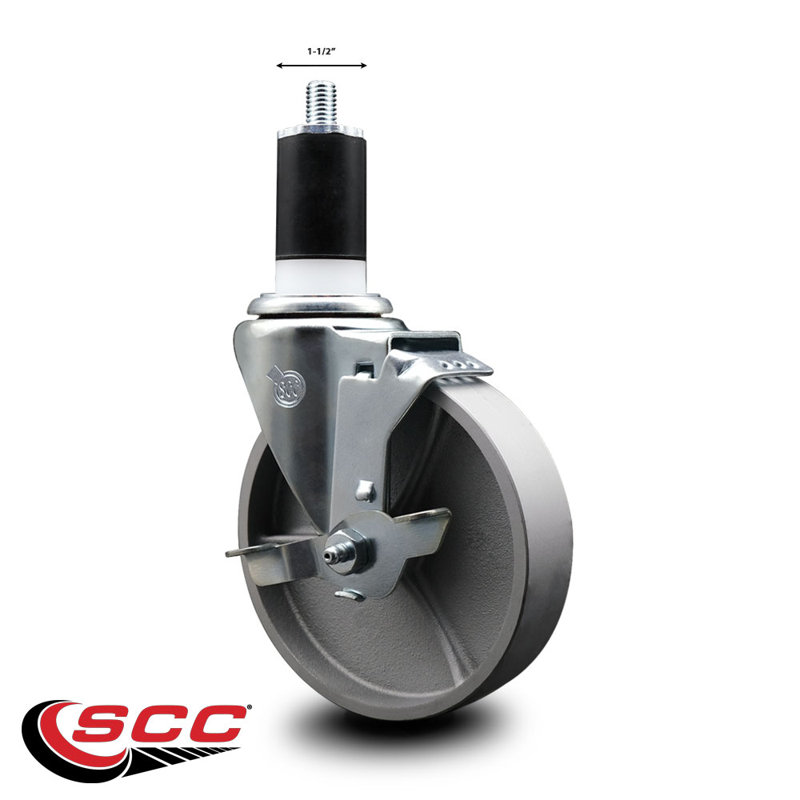

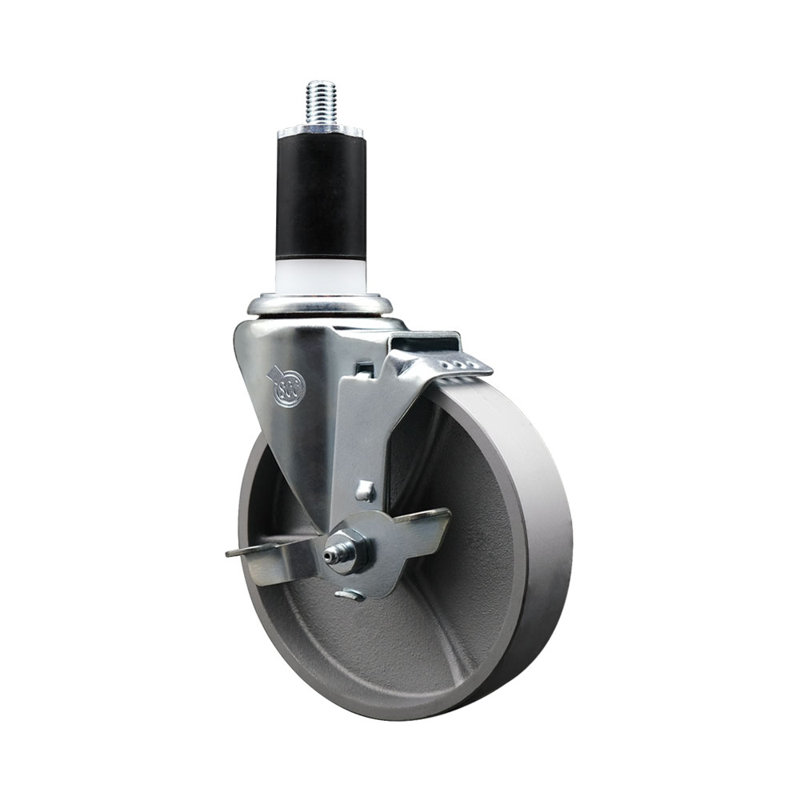

Semi Steel Swivel 1-1/2 Inch Expanding Stem Caster with Brake SCC

Features

• These Service Caster Series #20 Semi Steel Cast Iron casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 4” Wheel: 5-1/8” mounting height; 5” Wheel: 6-1/8” mounting height.
• Weight Capacity: 3", 4", and 5": 300 lbs Capacity/Caster
• All casters feature an expanding stem that is 2-11/16” in length. The expanding stem comes in 10 different diameters: (3/4”, 7/8”, 1”, 1-1/8”, 1-1/4”, 1-3/8”, 1-1/2”, 1-5/8”, 1-3/4”, and 1-7/8”). Before ordering, Service Caster recommends measuring the inside diameter of your tubing- this measurement will determine the corresponding expanding stem diameter needed. Not sure how to measure or don't see the size you need? Call us or send us a message.
• Brake options include a top lock brake (TLB), a total lock brake (TTL), or a posi lock brake (PLB). The top lock brake (TLB) and the posi lock brake (PLB) places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL) also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.
